For manufacturers looking for a flexible and reliable solution for manual powder coating, Haztek offers the 901-F Manual Powder Coating Equipment. Designed as an integrated mobile system, the 901-F combines professional electrostatic spraying technology with convenient operation for a wide range of metal workpieces.

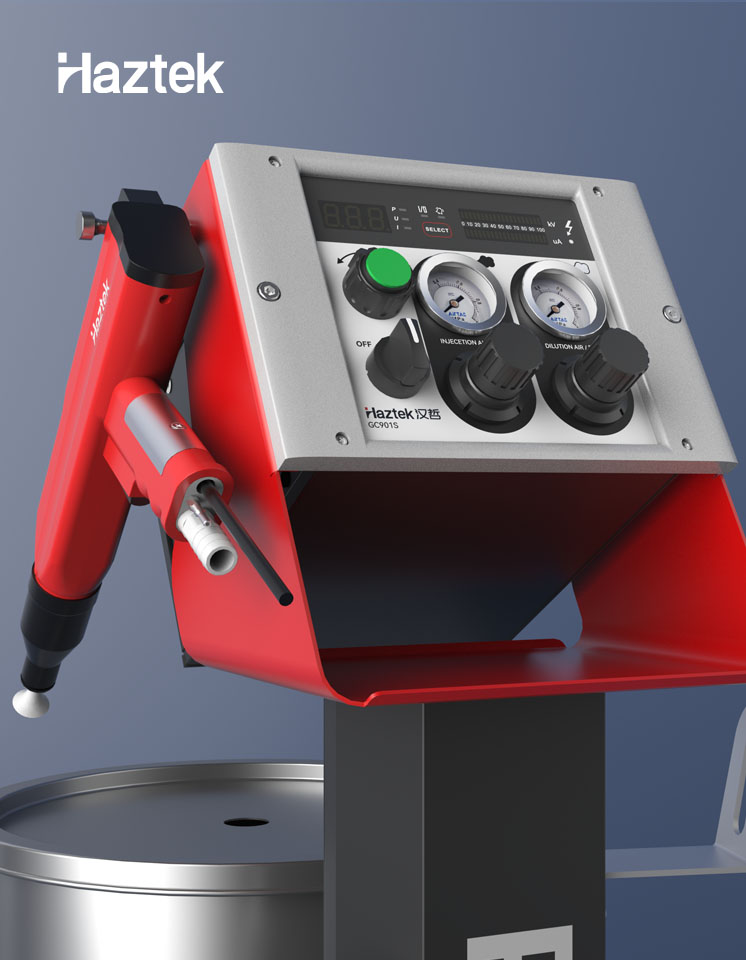

The Haztek 901-F is designed as a complete manual powder coating solution rather than a standalone spray gun. The standard configuration includes the G901 Master Control Unit, MG10 Manual Spray Gun, PPH40 Powder Pump and 45.5-liter stainless steel powder hopper.
The system also includes a 6-meter powder hose, regulator and air distribution unit, standard hose connection accessories and a consumable parts kit, providing the essential components for manual powder coating operations.

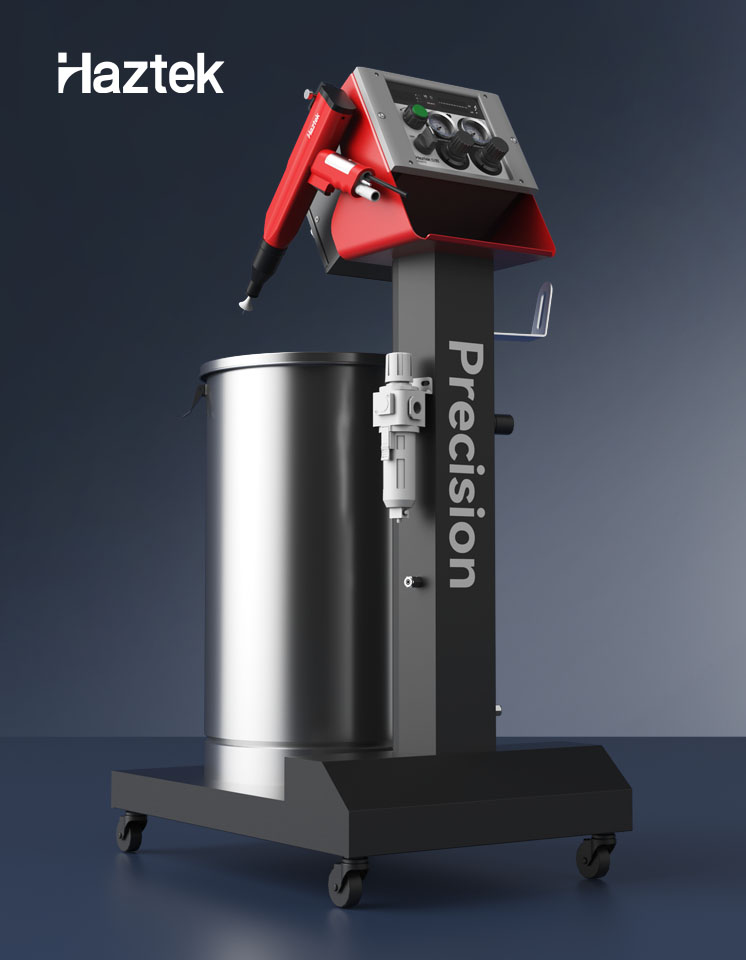

The 901-F is mounted on a mobile trolley with four swivel casters, making it easy to move around the workshop and position close to different workpieces.
This flexible design is especially suitable for applications where operators need to coat large workpieces, work across multiple stations or adjust the equipment position according to production requirements.

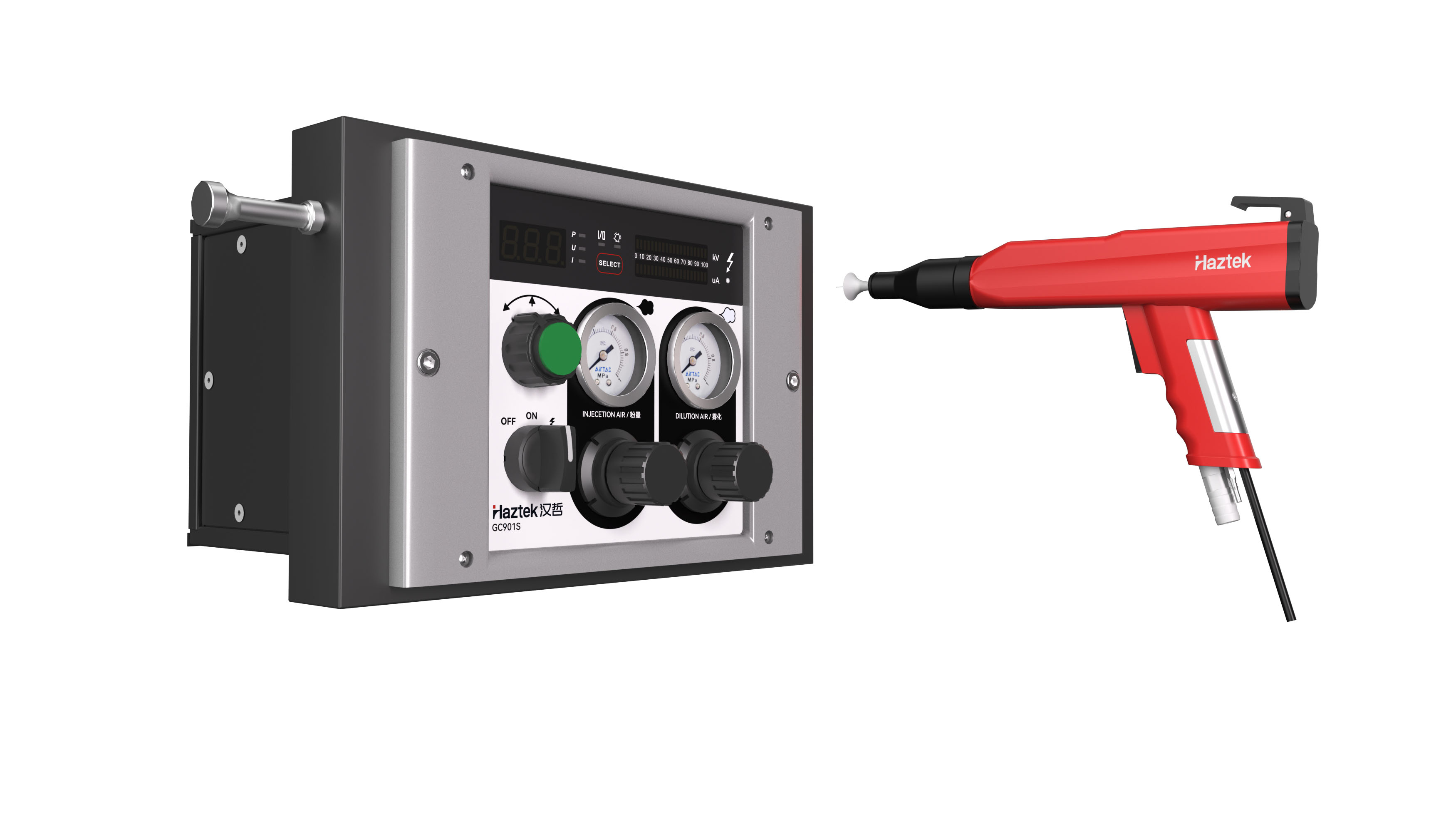

The 901-F is equipped with the Haztek MG10 Manual Powder Spray Gun, providing reliable electrostatic performance for manual powder coating applications. The MG10 features an output voltage of up to 100 kV and an output current of 100 μA. Its manual operation gives operators greater control when coating different surfaces, edges, recesses and irregular areas.
The 901-F features a 45.5-liter stainless steel powder hopper, helping reduce the frequency of powder replenishment during coating operations.
The system is also equipped with the PPH40 Powder Pump, which provides a maximum powder discharge rate of 520 g/min, supporting efficient powder delivery during manual spraying.
The Haztek 901-F is suitable for a variety of manual powder coating applications, particularly for large, irregular and complex metal workpieces.
Typical applications include:
Automotive frames
Wheels
Construction machinery parts
Large metal components
Irregular metal sheets
Other fabricated metal parts
The combination of a mobile platform and manual spray gun provides operators with greater flexibility when coating workpieces with different shapes and dimensions.

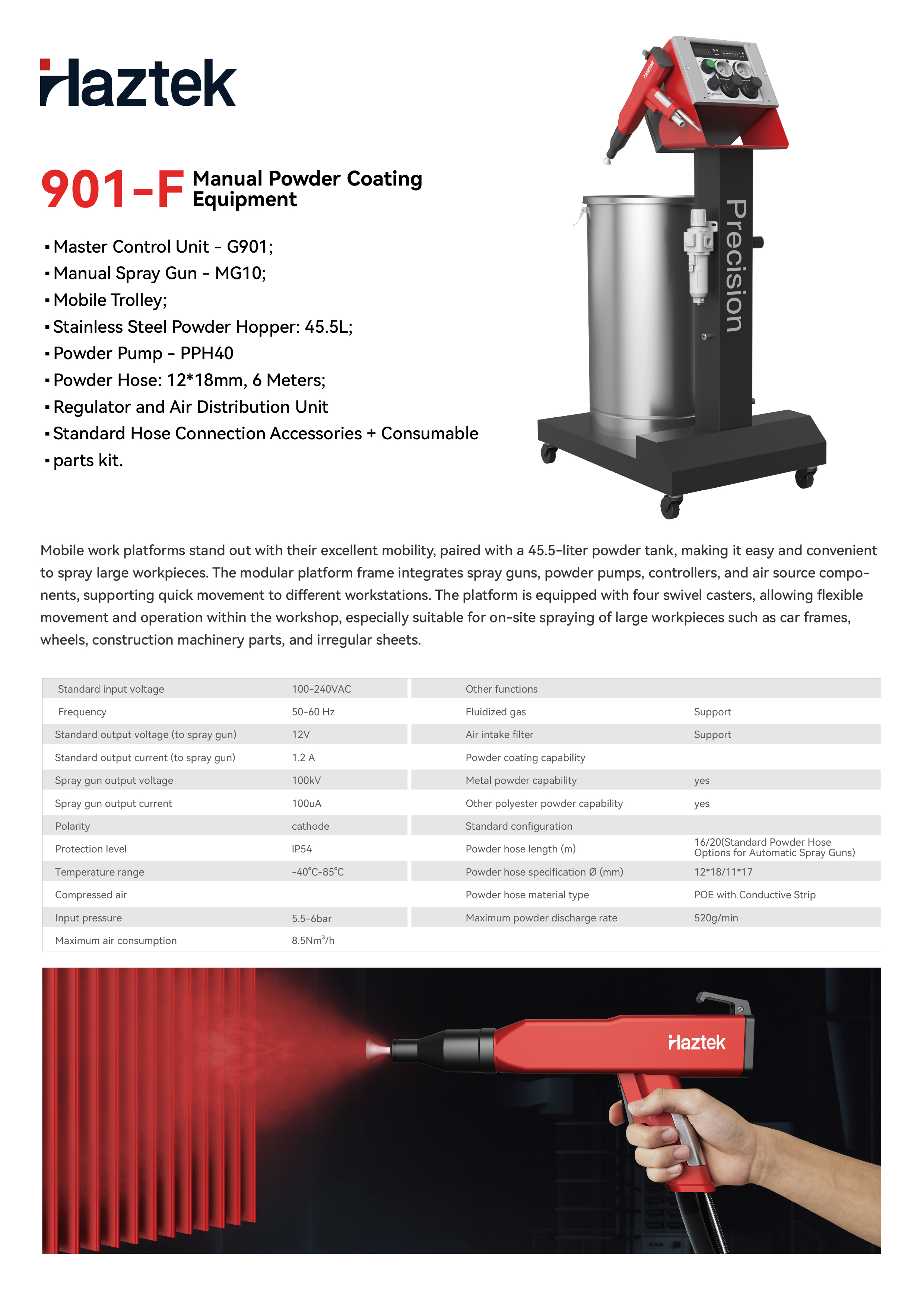

| Specification | 901-F |
|---|---|
| Input Voltage | 100–240 VAC |
| Frequency | 50–60 Hz |
| Spray Gun Output Voltage | 100 kV |
| Spray Gun Output Current | 100 μA |
| Powder Hopper Capacity | 45.5 L |
| Maximum Powder Discharge Rate | 520 g/min |
| Input Pressure | 5.5–6 bar |
| Maximum Air Consumption | 8.5 Nm³/h |
| Protection Level | IP54 |
| Powder Hose Length | 6 m |
With its integrated configuration, mobile design and professional manual spraying components, the Haztek 901-F Manual Powder Coating Equipment provides a practical solution for manufacturers requiring flexibility in their powder coating operations.
From large metal components to irregular workpieces, the 901-F is designed to help operators achieve efficient and consistent manual powder coating performance.
Haztek is committed to developing professional electrostatic powder coating equipment and solutions for customers worldwide.
Looking for the right powder coating solution for your application? Contact Haztek to discuss your requirements.
