The Pinnacle Premium Series is a professional electrostatic powder coating solution developed for manufacturers who require stable spraying performance, precise control and consistent coating quality.
With up to 100 kV electrostatic output and optimized powder delivery technology, Pinnacle systems provide high transfer efficiency, uniform powder coverage and reliable performance for demanding industrial applications.
Up to 100 kV for strong electrostatic performance
High transfer efficiency to reduce powder consumption
Precise powder output for consistent coating thickness
Fast color change and easy cleaning
Advanced digital control for repeatable coating results
Suitable for metal furniture, aluminum profiles, appliances, automotive components and general industrial parts

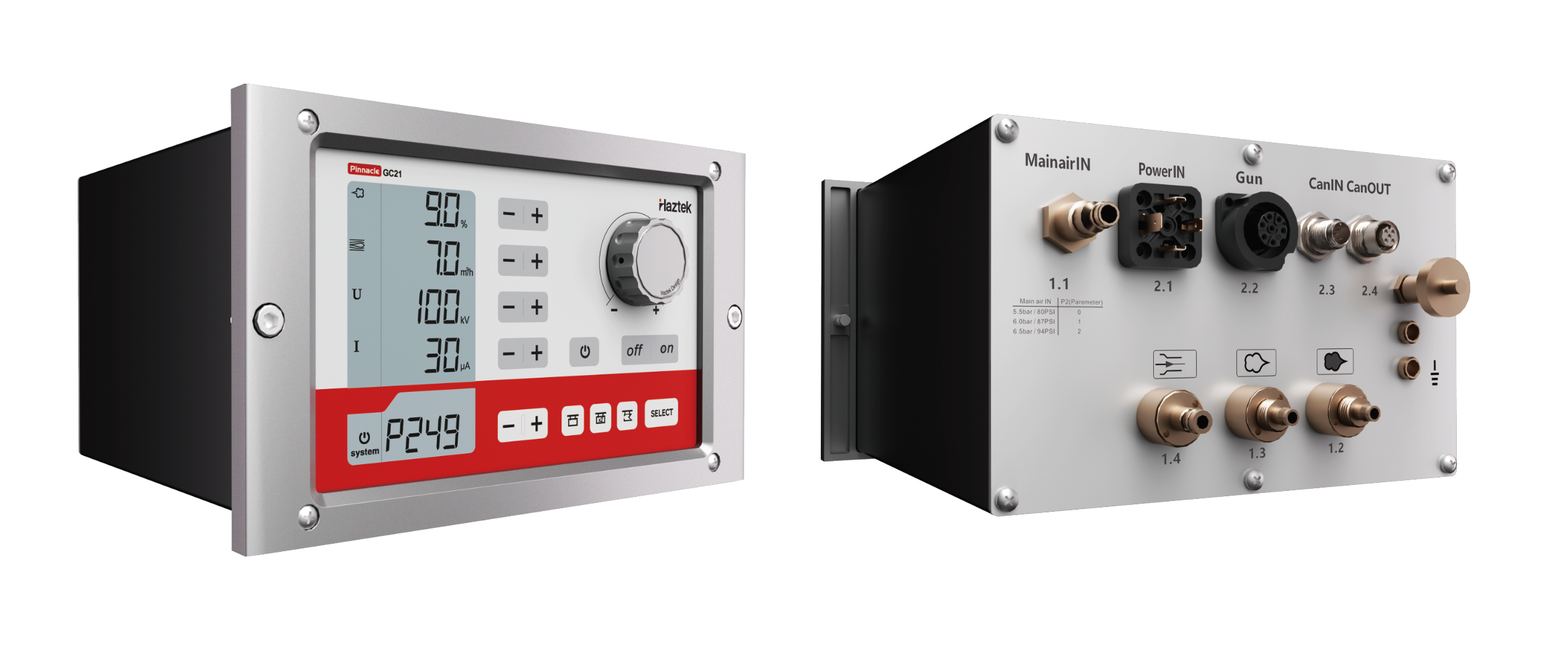

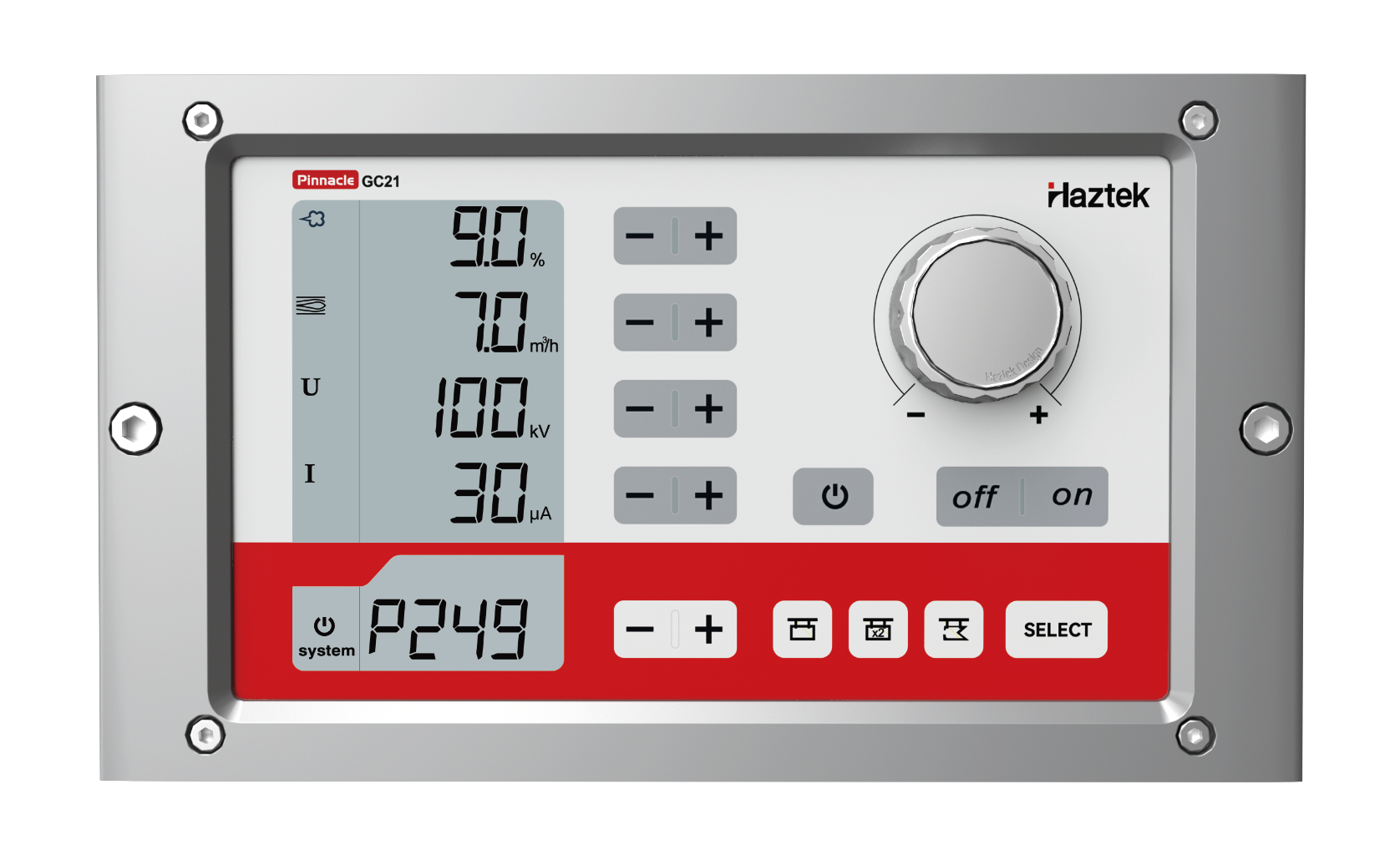

The GC21 is designed for precise and repeatable powder coating operations.
It supports 250+ coating programs, allowing operators to quickly select and reproduce optimized spraying parameters.
Three quick programs are available for common applications:
New Workpiece – standard coating
Complex Recessed Workpiece – improved penetration into corners and recessed areas
Re-Coating – optimized for secondary coating
The system integrates DVC technology, LCD display, CANBus and I/O interfaces, providing accurate control of voltage, current and powder delivery.
DVC helps maintain stable electrostatic performance during spraying. It automatically adjusts electrical parameters according to workpiece conditions, helping improve coating consistency and penetration into difficult areas.

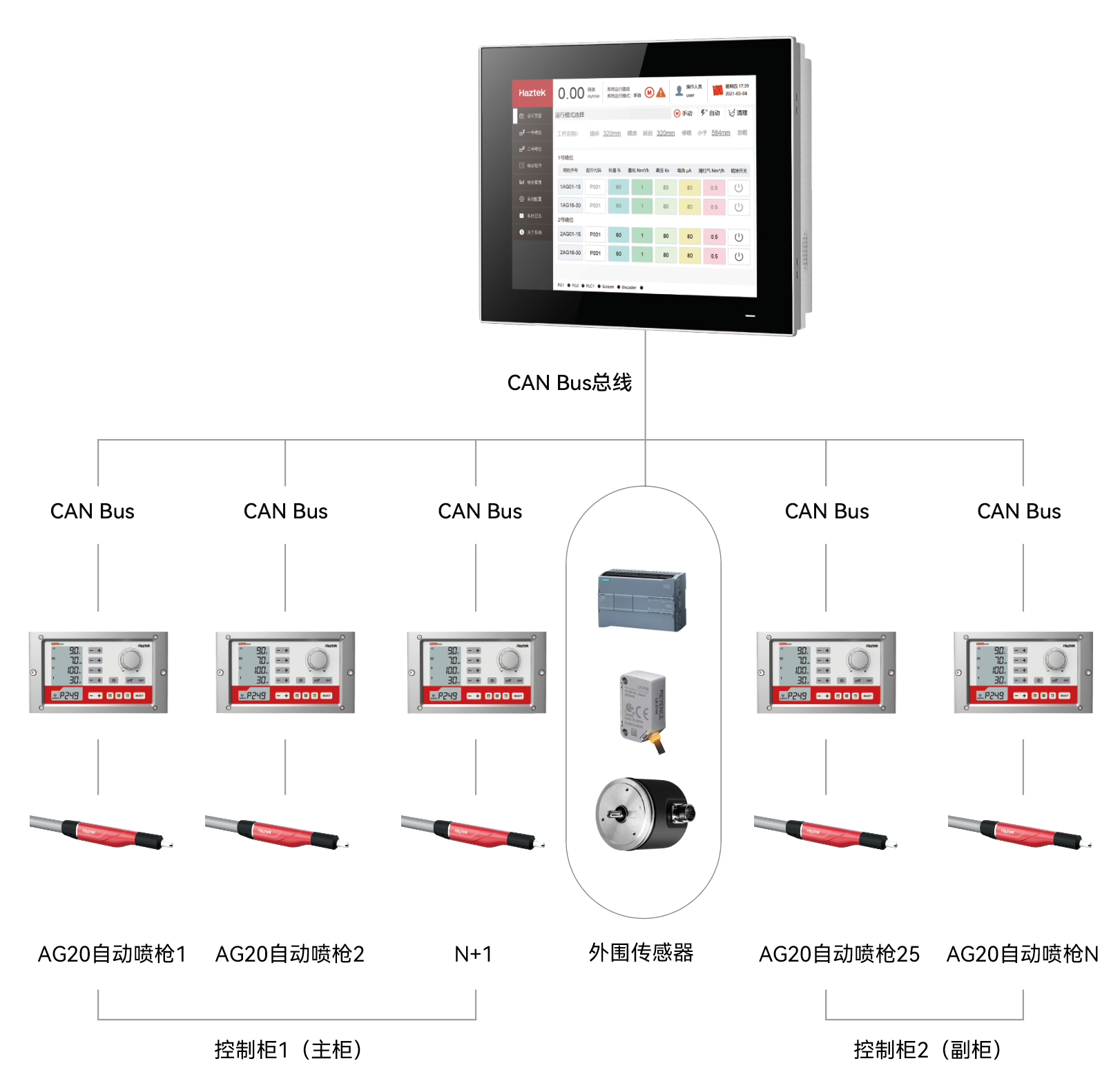

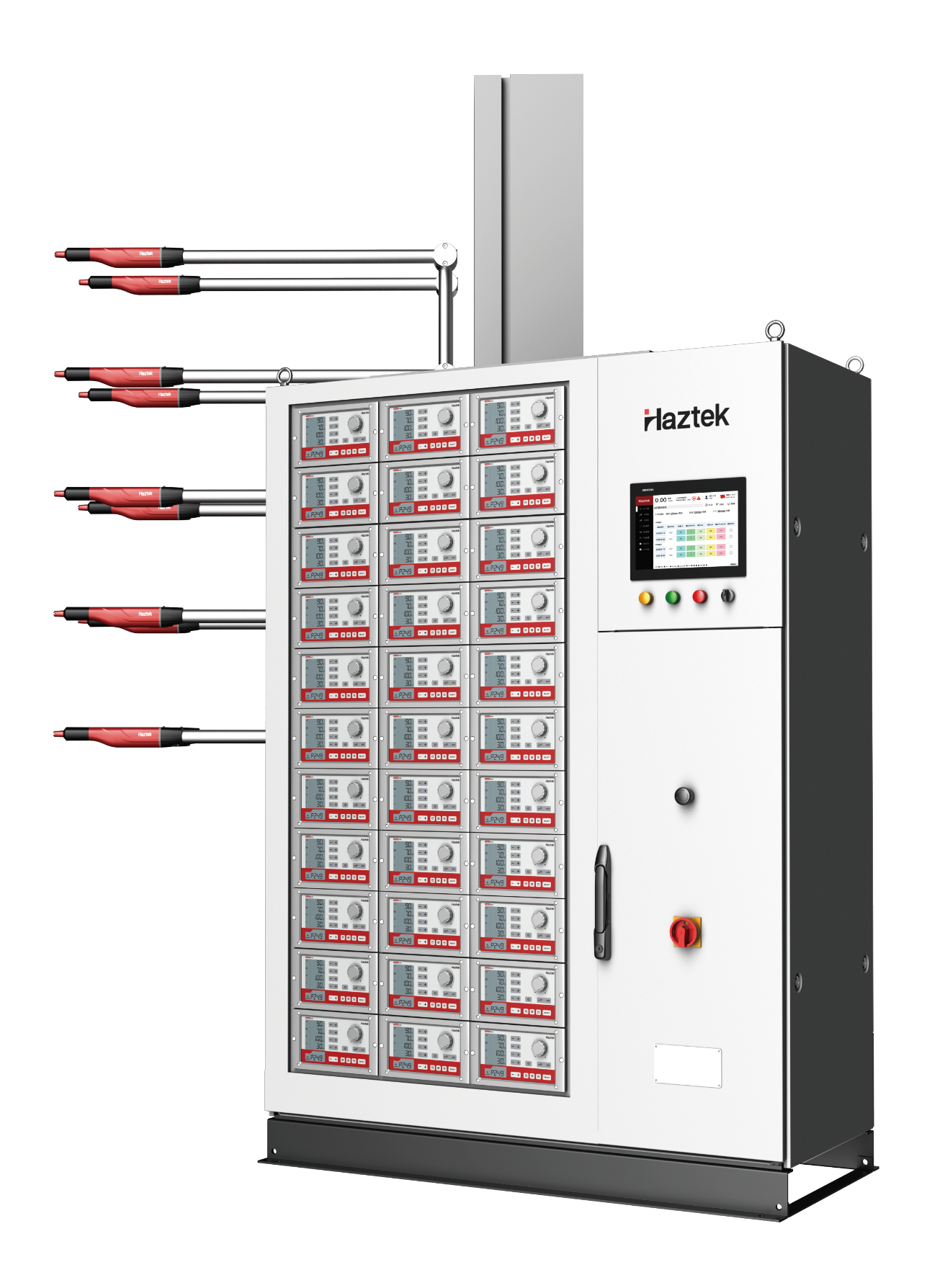

For larger automatic coating lines, the GCS provides centralized control for multiple spray guns and production equipment.
Key capabilities include:
Support for up to 120 spray guns
1000+ coating recipes
API, CANBus and I/O connectivity
Integration with robots, booths, PLC, MES and ERP systems
Recipe management and production data control
System self-diagnosis and monitoring
GCS is designed for automated production environments where process consistency, centralized management and production efficiency are important.

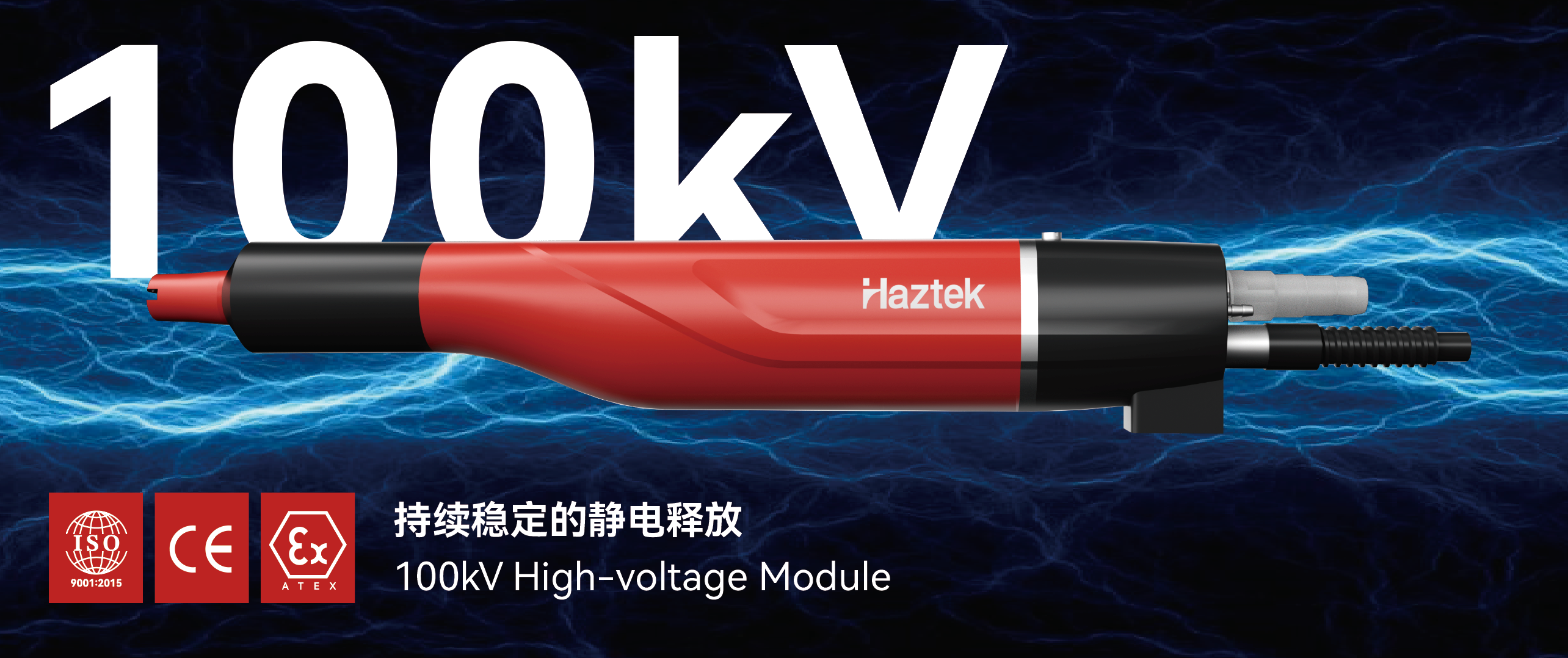

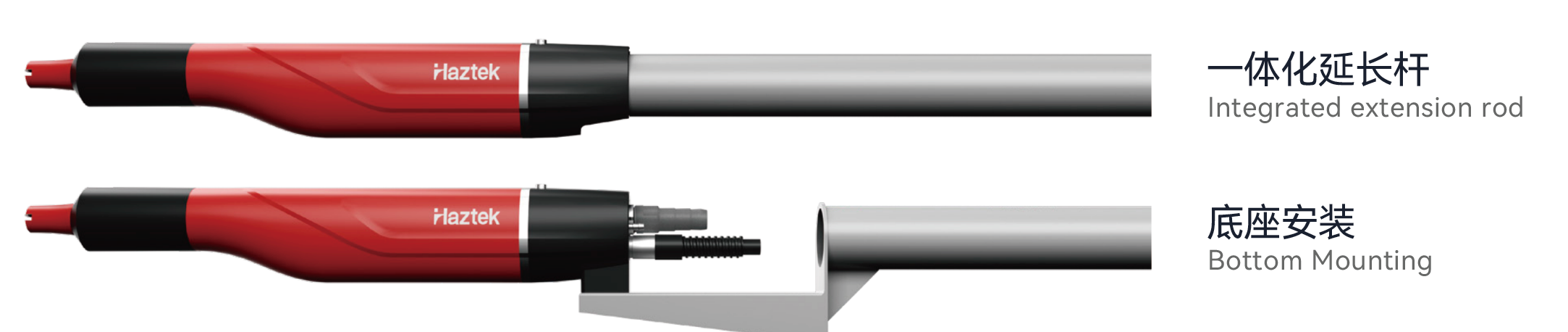

The AG20 is a modular automatic powder coating gun designed for continuous industrial spraying.

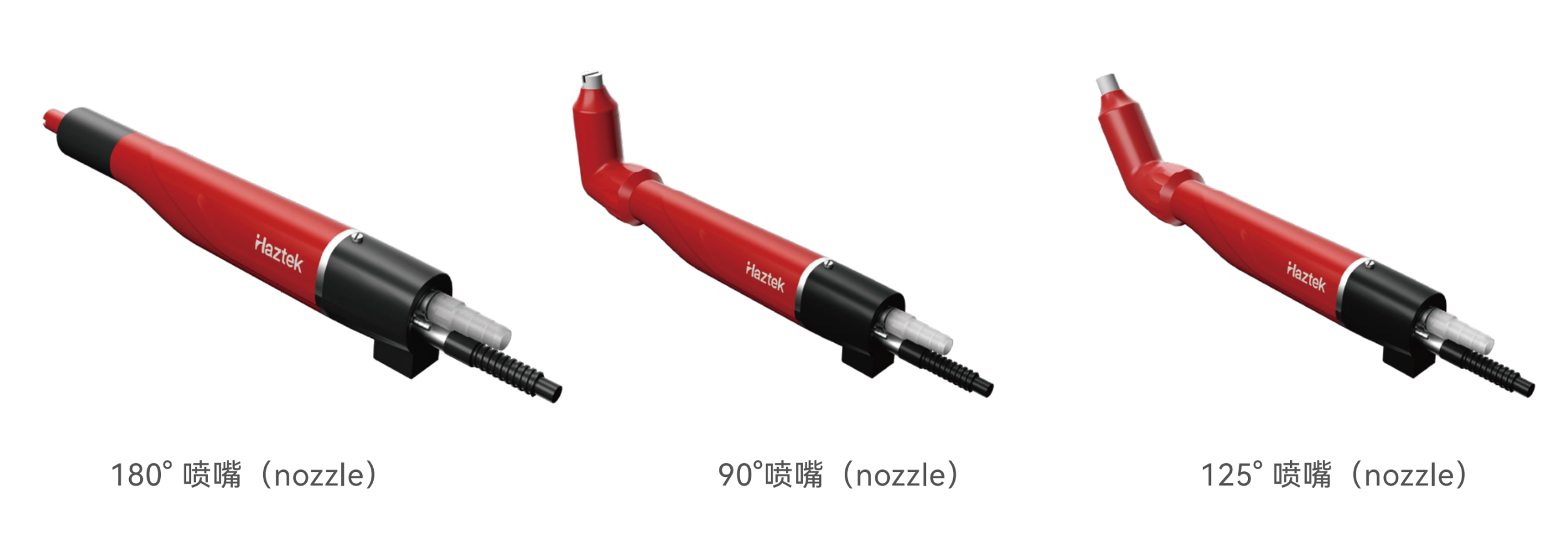

With up to 100 kV electrostatic output and flexible nozzle configurations, it can be integrated into automatic reciprocators, coating robots and production lines.
The adjustable voltage and current settings allow operators to optimize spraying parameters for different workpieces and coating requirements.
Pinnacle combines advanced electrostatic control with optimized powder delivery to achieve stable and efficient spraying.
Features include:
Electrode self-cleaning system
Three-stage air control
Precise voltage and current regulation
Optimized electrostatic energy control
Stable powder cloud and coating coverage
These technologies help improve coating penetration, reduce powder waste and maintain consistent surface quality.

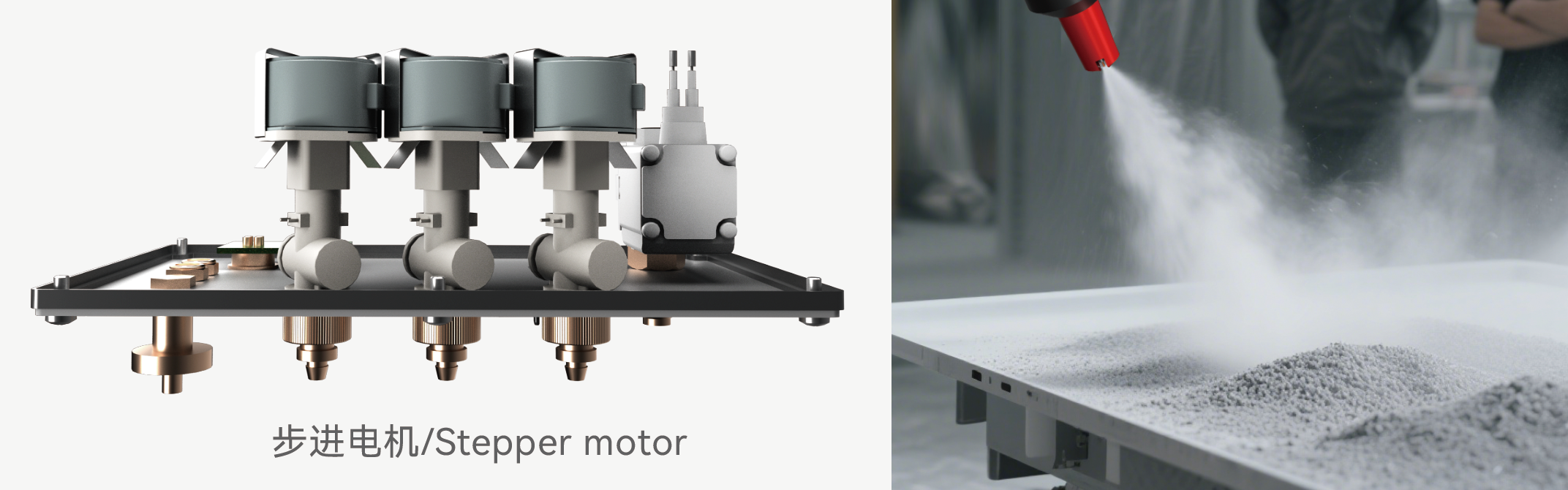

The PPH40 provides stable and efficient powder delivery for manual and automatic systems.
Plug-and-play design
Quick connection
Powder output up to 520 g/min
Designed for long-term continuous operation
Easy maintenance and cleaning
Its stable powder delivery helps maintain consistent coating thickness and spraying performance.
The Pinnacle Series also offers a range of manual configurations for different production requirements:

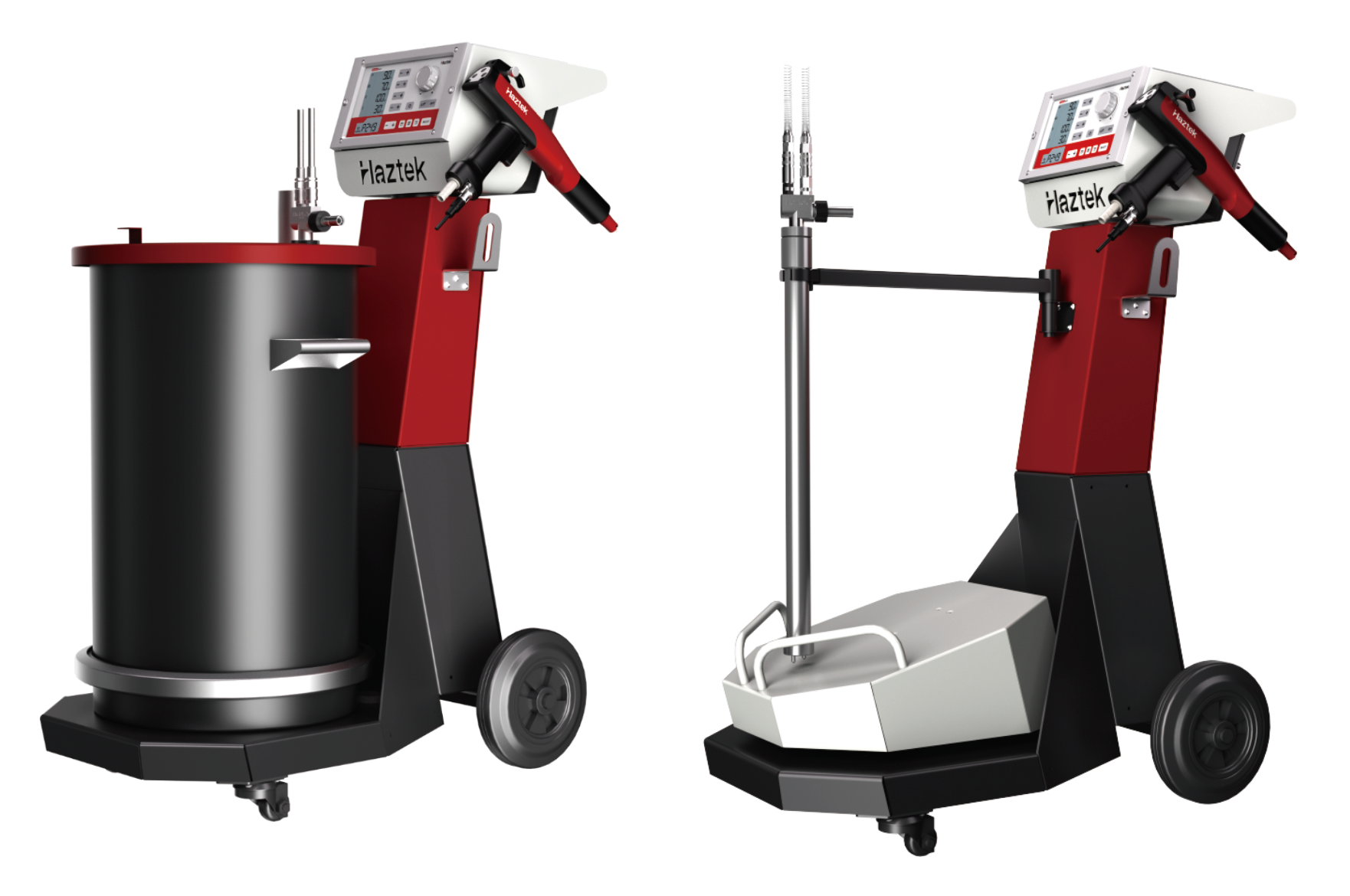

F – mobile trolley system for flexible operation
FZ – vibrating powder box system for efficient powder feeding
SE – wall-mounted configuration for space-saving installation

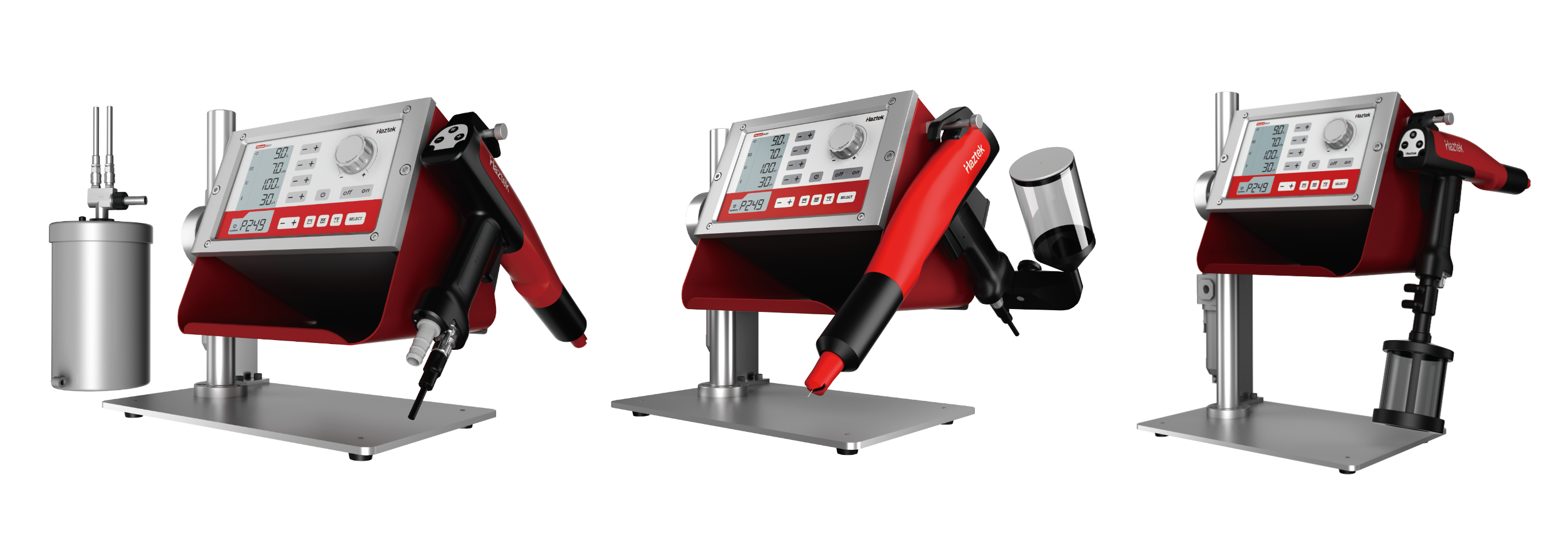

T / TD / TU – configurations for laboratory, testing and specialized coating applications
These solutions are suitable for both general production and professional coating development.

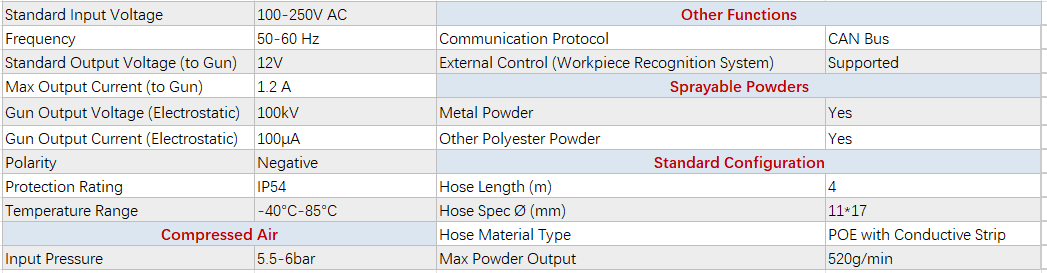

The MG20 combines high electrostatic output with ergonomic operation.
Up to 100 kV / 100 µA
Powder output up to approximately 510 g/min
Ergonomic gun design
Remote touch control
Double-trigger operation
CANBus communication
The MG20 is designed to provide operators with precise control while maintaining stable powder output during continuous spraying.
Professional Electrostatic Performance
High-voltage technology and optimized powder delivery for efficient coating.
Precise Digital Control
Advanced control systems help operators achieve repeatable coating parameters.
Flexible Solutions
From manual spray guns to multi-gun automatic systems, Pinnacle can adapt to different production scales.
Automation Ready
CANBus, I/O and API interfaces support integration with robots, PLC, MES and ERP systems.
Built for Industrial Production
Designed for stable operation, easy maintenance and consistent coating quality.
Professional powder coating technology for consistent results, efficient production and reliable industrial performance.
Contact Haztek for the right powder coating solution for your application.
