MG20 Manual Powder Spray Gun

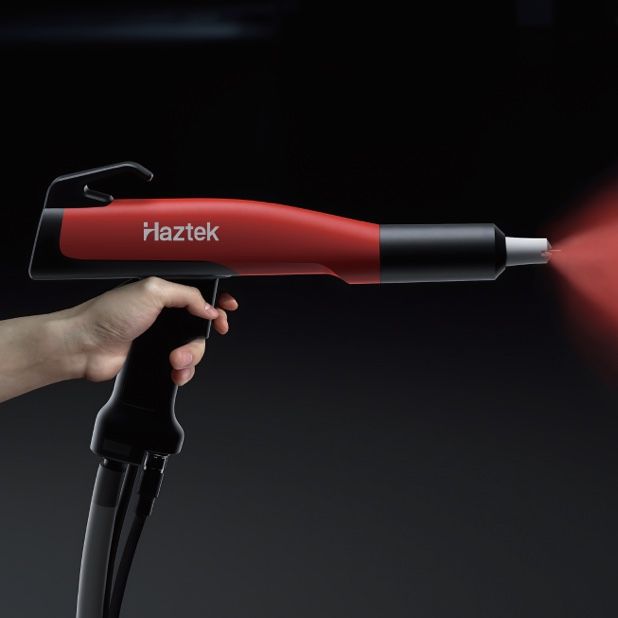

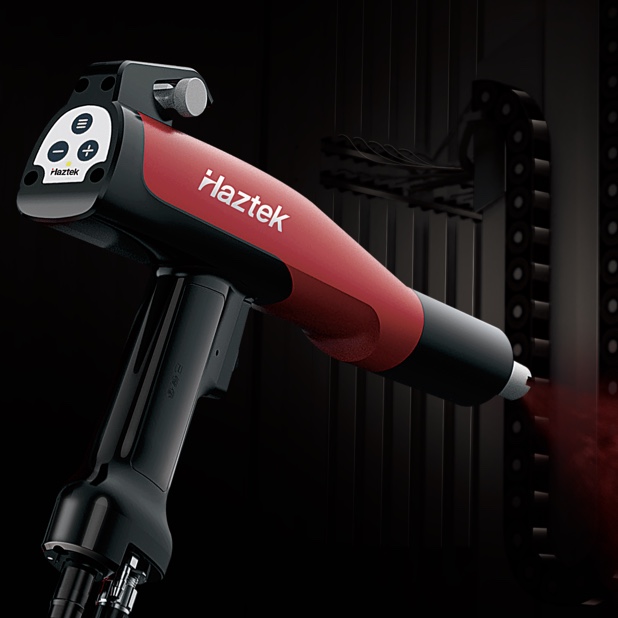

MG20 Manual powder spray gun

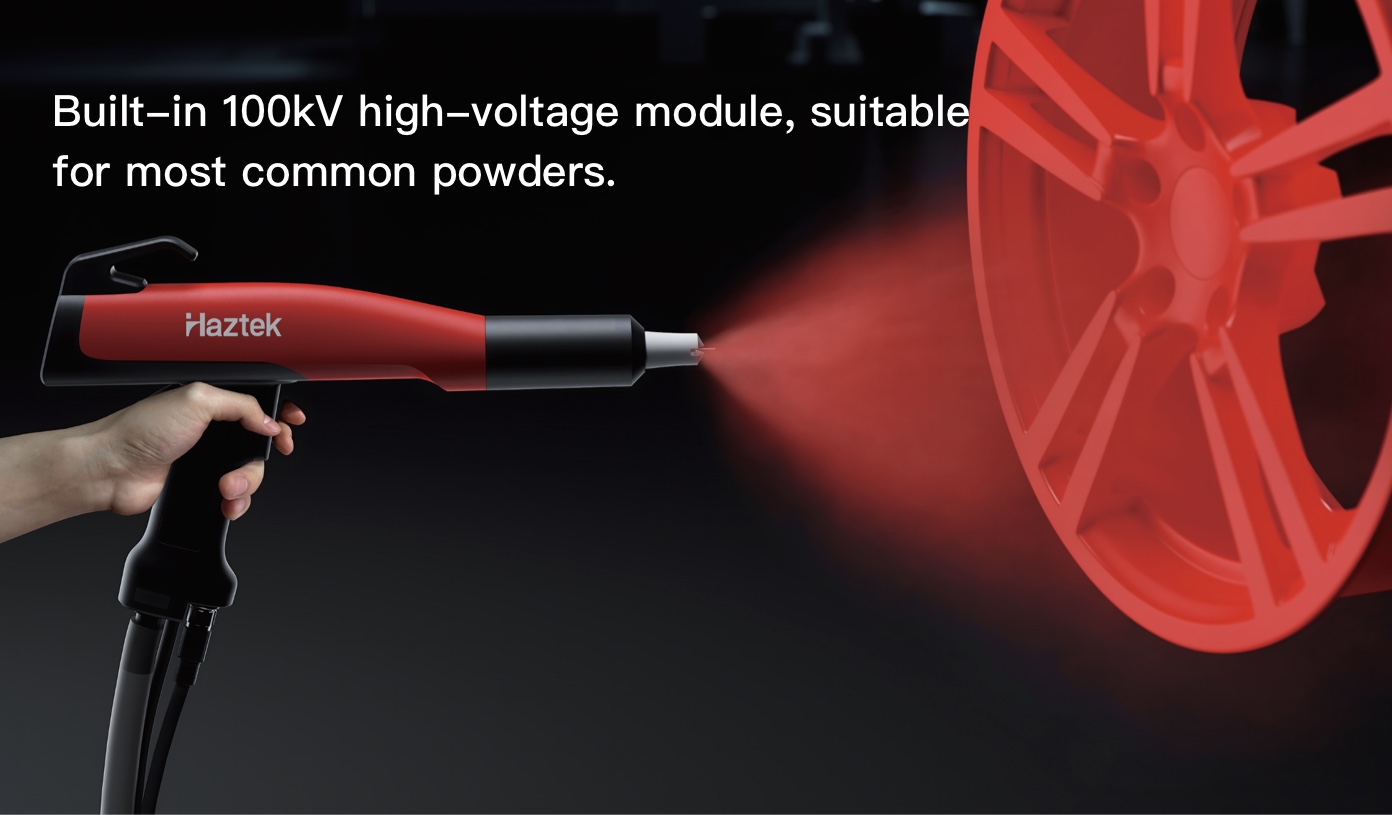

The built-in 100kV high-efficiency pressure doubler ensures a constant and stable output for excellent powder coating results. It is suitable for most of the common powders, even for those difficult to charge powder coatings, it can also realize efficient coating. In addition, its wearresistant design and preferred materials further reduce maintenance costs.

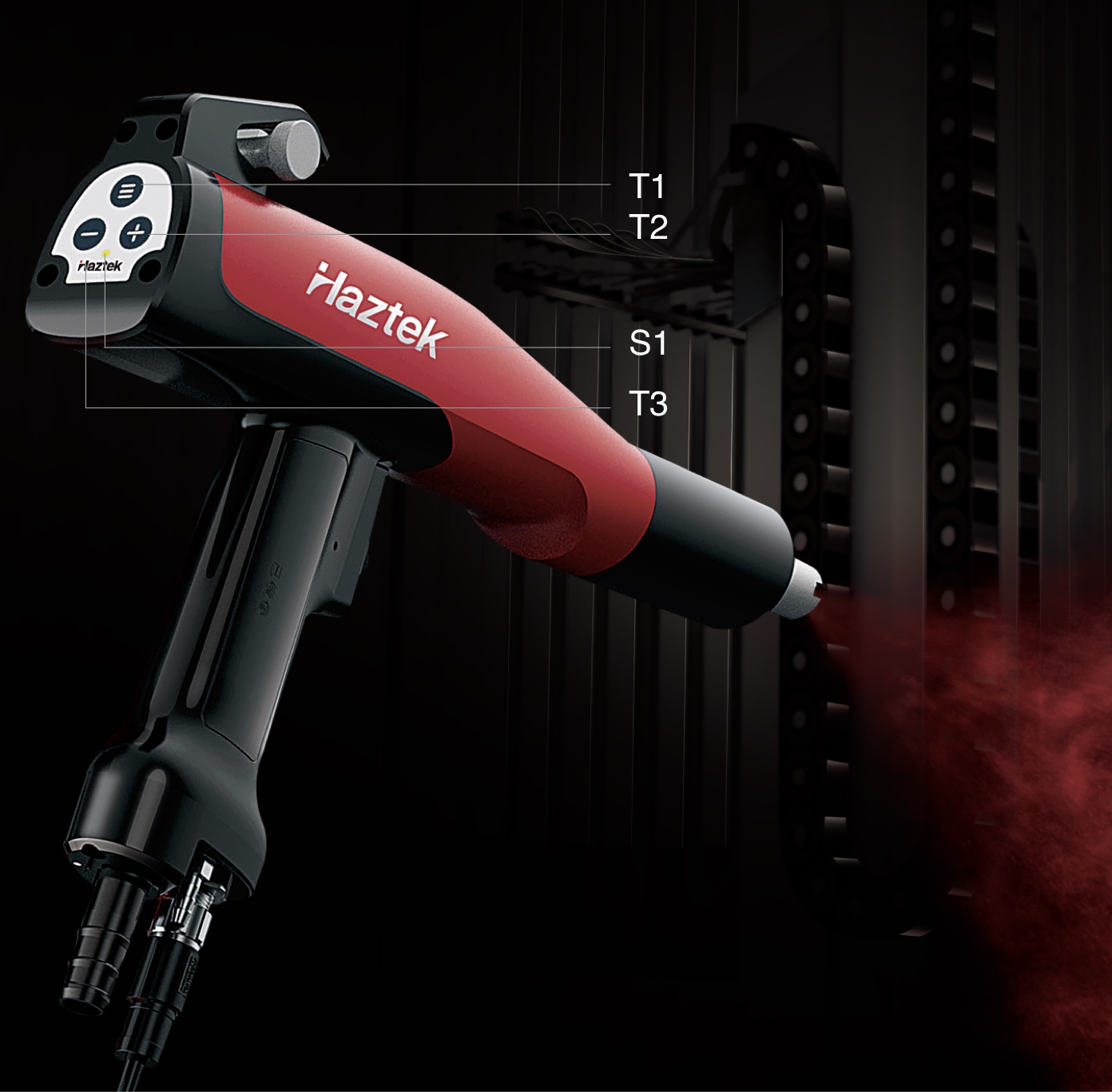

Quick parameter adjustment

S1 —— Spray Gun Operation Indicator

T1 —— Parameter Increase Button

T2 —— Parameter Decrease Button

T3 —— Parameter Change Button

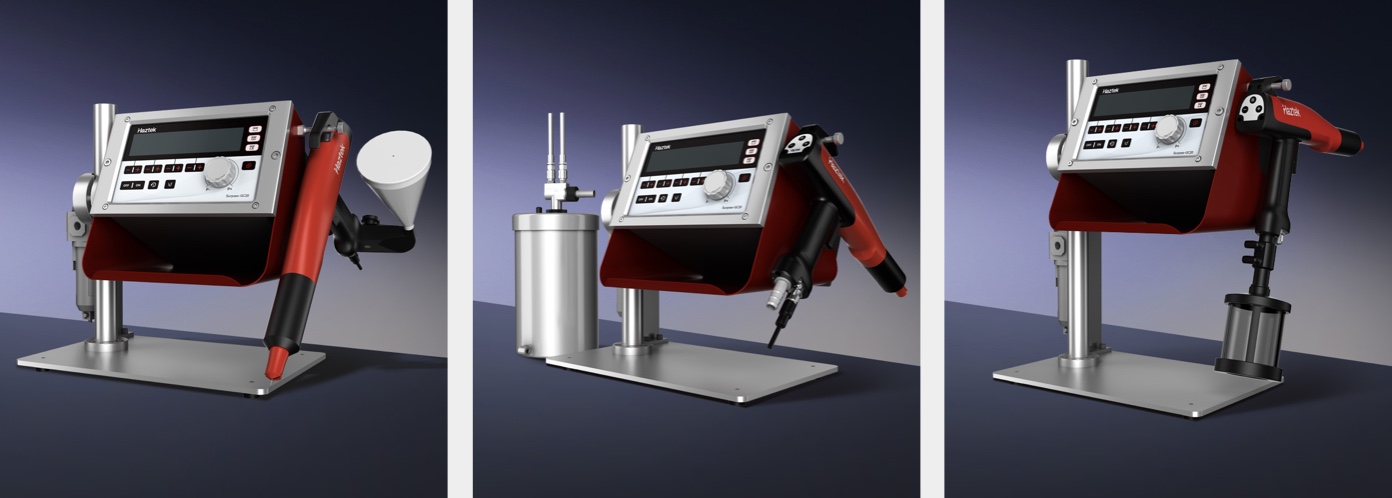

Can be used with a cart or an experimental or wall-mounted carrier.

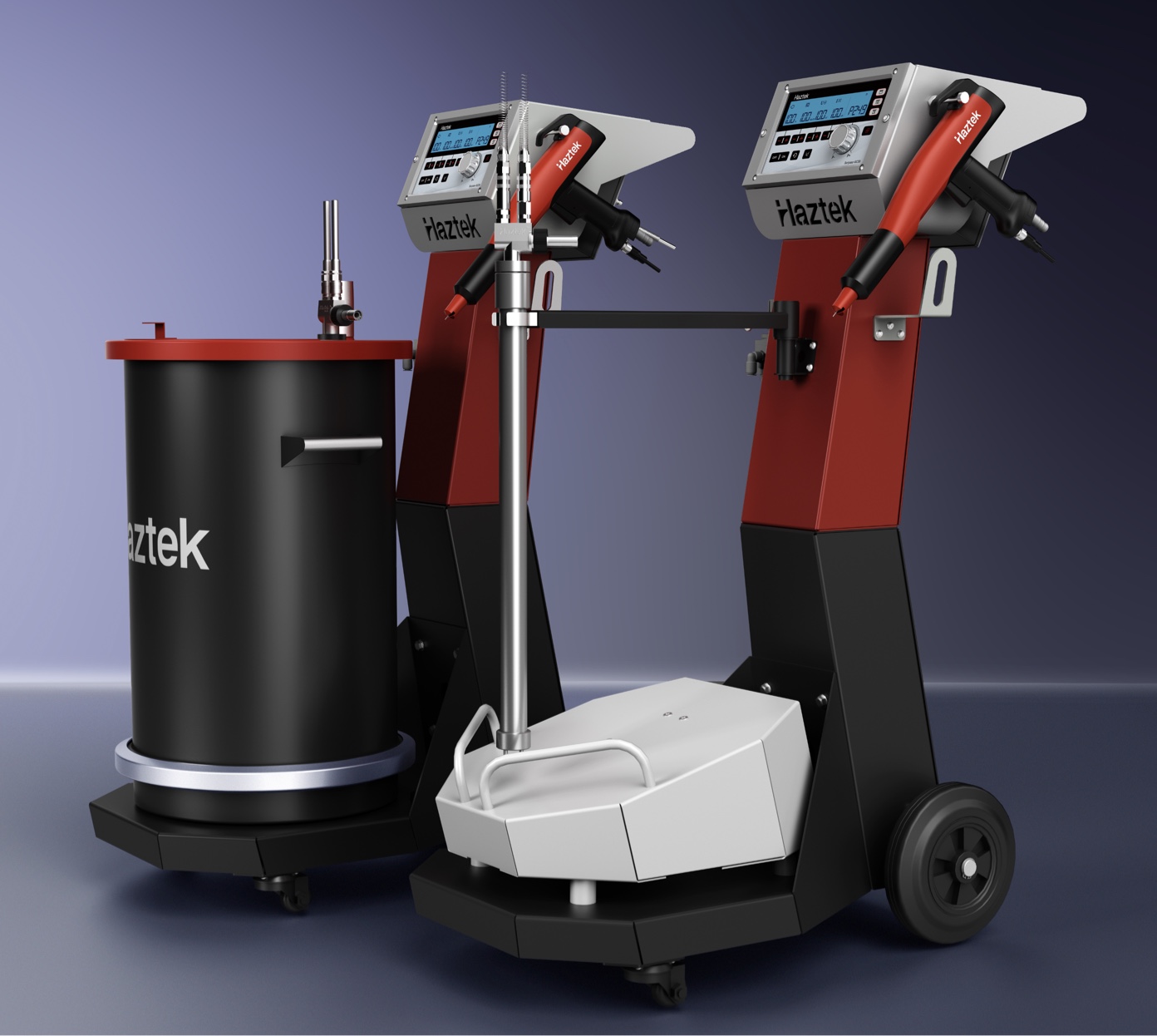

Manual spraying equipment shows unique advantages in different application scenarios with its  excellent flexibility and adaptability. The mobile cart stands out for its excellent mobility, and  with its 50-liter powder container, it makes coating large workpieces easy and convenient. The  experimental model, with its small powder container, adapts to changing laboratory  environments and the coating of small workpieces with its compactness and flexibility. The  wall-mounted models are designed with space utilization in mind, making them easy to install  and space-saving for workplaces with limited space. These diverse carrier options ensure that  Haztek manual spraying equipment can meet the needs of various scenarios, whether in  industrial production, laboratory testing or space-constrained environments, to provide efficient  and stable spraying solutions.

MG20 MG20 Manual powder spray gun equipment parameters

Standard input voltage：100-240VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h

Other functions

Canbus fieldbus：Support

External control （workpiecerecognition system）：Support

Powder coating capability

Metal powder capability：yes

Other polyester powder capability：yes

Standard configuration

Powder hose length (m)：16/20(Standard Powder Hose Options for Automatic Spray Guns)

Powder hose specification Ø (mm)：12*18/11*17

Powder hose material type：POE with Conductive Strip

Maximum powder discharge rate：520g/min
