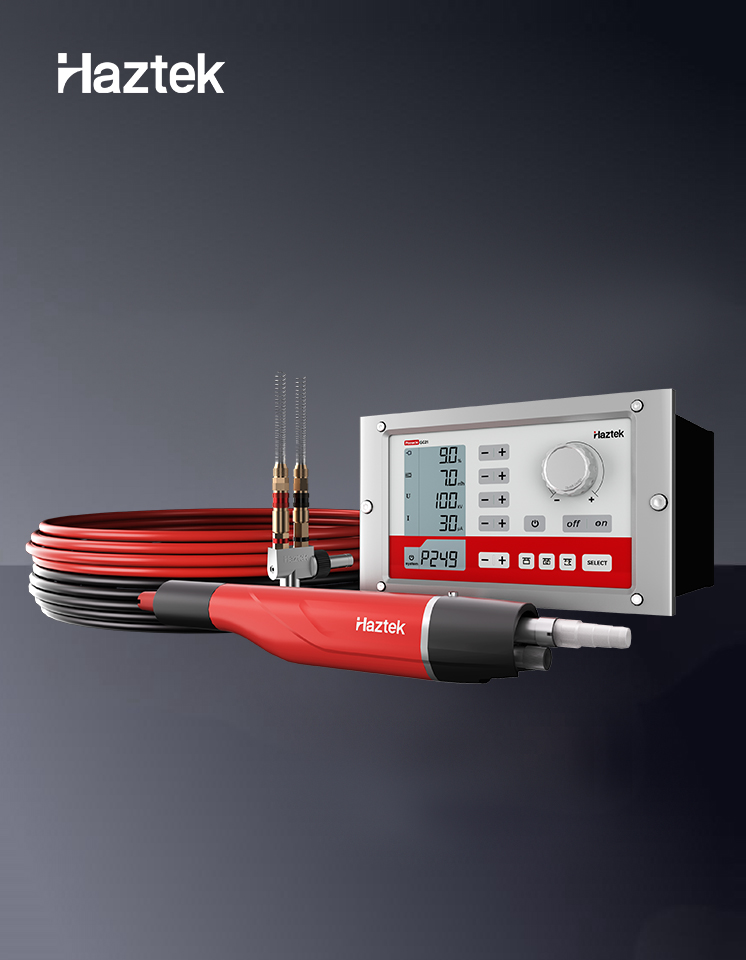

Pinnacle Series Automatic Powder Coating Equipment( High-end series)

Parameters

- Standard input voltage: 110-250VAC

- Frequency: 50-60Hz

- Standard output voltage(to spay gun): 12V

- Standard output current(to spray gun): 1.2A

- Gun output voltage: 100KV

- Gun output current: 100uA

- Polarity: Negative electrode

- Protection Level: IP54

- Temperature range: -40 ℃-85℃

- Input pressure: 5.5-6bar

- Maximum air consumption: 8.5Nm³/h

- CANBus fieldbus: Support

- External control(workpiece recognition system): Support

- Metal powder: Support

- Other polyester powder: Support

- Powder hose length(m): 16/20

- Powder hose specification ⌀(mm): 11*17

- Powder hose material type:  POE with conductive strip

- Maximum powder discharge rate: 520g/min

Characteristics

- Built-in 250 programmable spraying programs;

- Three Pre-Coating Modes: flat-part mode, re-spraying mode, and special-shaped part mode.

- Features DVC digital valve technology and dual-mode control with buttons and knobs.

- Corona Charging.

- PCC Precision Charging.

- Support CANopen Communication.

- Fault Monitoring & Early Warning.

- Button + multi-dimensional stepless knob, visual operation interrace, instant adjustment of various parameters.

- Hardware components are sourced from top-tier international brands.

- High Output: AG20 spray gun with built-in 100kV multiplier delivers stable, high powder deposition.
