Surpass Series Automatic Powder Coating Equipment (High-end Series)

Parameters

- Standard input voltage: 110-240VAC

- Frequency: 50-60Hz

- Standard output voltage(to spay gun): 12V

- Standard output current(to spray gun): 1.2A

- Gun output voltage: 100KV

- Gun output current: 100uA

- Polarity: Negative electrode

- Protection Level: IP54

- Temperature range: -40 ℃-85℃

- Air inlet pressure: 5.5-6bar

- Maximum air consumption: 8.5Nm³/h

- CANBus fieldbus: Support

- External control(workpiece recognition system): Support

- Metal powder: Support

- Other polyester powder: Support

- Powder hose length(m): 16/20

- Powder hose specification ⌀(mm): 12*18/11*17

- Powder hose material type: POE with conductive strip

- Maximum powder discharge rate: 420g/min, 360g/min

Characteristics

- Corona charging technology.

- DVC precision powder flow control.

- PCC precise charging.

- External remote touch control module.

- Efficiency: Easy cleaning and maintenance for faster color changes.

- Precision: Accurate current control (<10µA) prevents overcharging and improves finish quality.

- Programmable: Up to 250 coating programs for consistent, repeatable results.

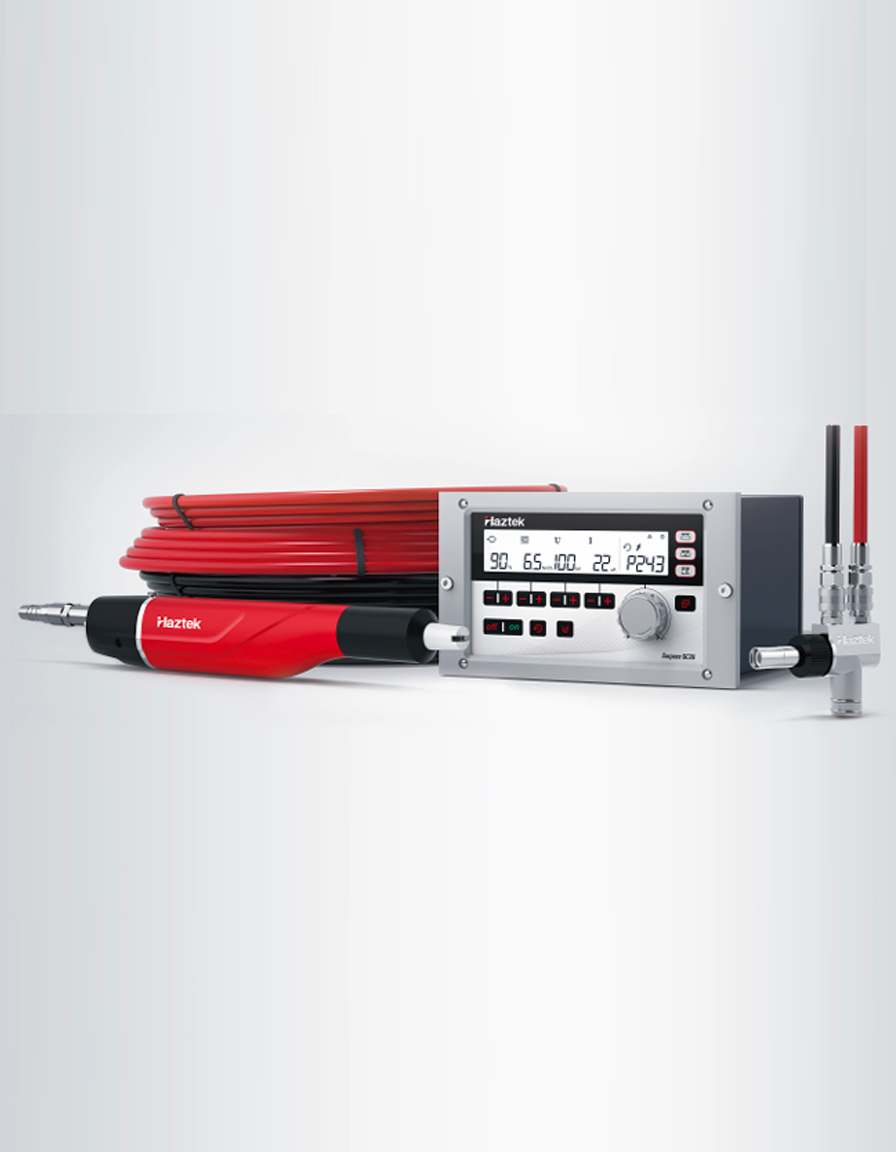

- High Output: AG20 spray gun with built-in 100kV multiplier delivers stable, high powder deposition.
