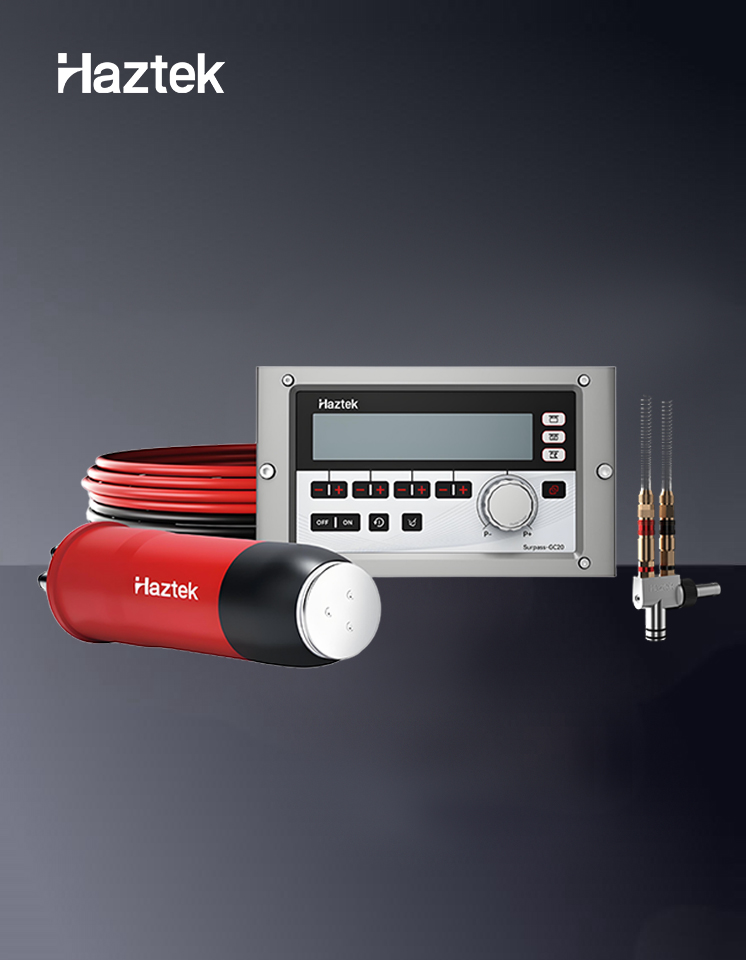

Surpass Series Bell Powder Rotary Cup Coating System

Parameters

- Input Voltage: 85~264VAC 50/60Hz

- Voltage Tolerance Range:±10 %

- Protection Type: IP54

- Max Power Supply Capacity: 45VA

- Max Output Voltage:110kV

- Frequency: 21kHz

- Max Output Current: 100μA

- Optimal Rotation Speed: 6500 - 8500 rpm

- Max Powder Output: ≈500g/min（per unit）

- Max Input Air Pressure: 8bar

- Max Allowed Moisture Content:1.2g/m3

- Max Allowed Oil Content: ≤0.1ppm

- Max Air Consumption: 15Nm3/h

- Ambient Temperature: -40-80 ℃

- Overall Dimensions: L362*Φ83mm

- Support Tube Mounting Size: Φ60mm

Characteristics

1. Outstanding High-Voltage Performance:  The bell integrates a 110kV high-voltage unit, ensuring highly efficient powder transfer.

2. Simplified Maintenance: Designed with real user needs in mind — the powder bell is easy to disassemble, components are durable, and the replacement frequency of consumables is significantly reduced.

3. Intelligent Control System: The integrated closed-loop speed control system ensures synchronized rotation when multiple guns are operating simultaneously, eliminating inconsistencies caused by unstable air pressure and achieving uniform spray patterns.

4. High-Efficiency Pneumatic Motor: The dual-turbine pneumatic motor, specially designed for powder coating environments, ensures fine atomization comparable to paint spraying under any powder flow condition.

5. Uniform High-Voltage Field: The annular electrostatic field design ensures uniform distribution of the high-voltage electric field, resulting in excellent powder charging, higher transfer efficiency, and minimal “edge build-up.”

6. Flexible Coating: The Surpass Bell reduces powder flow speed by over 30%, allowing longer charging time for each powder particle and achieving even higher transfer efficiency.

7. Precise Coating Results: When spraying with a single bell, the film thickness uniformity can reach ±5 μm, saving powder and significantly improving surface finish quality.
