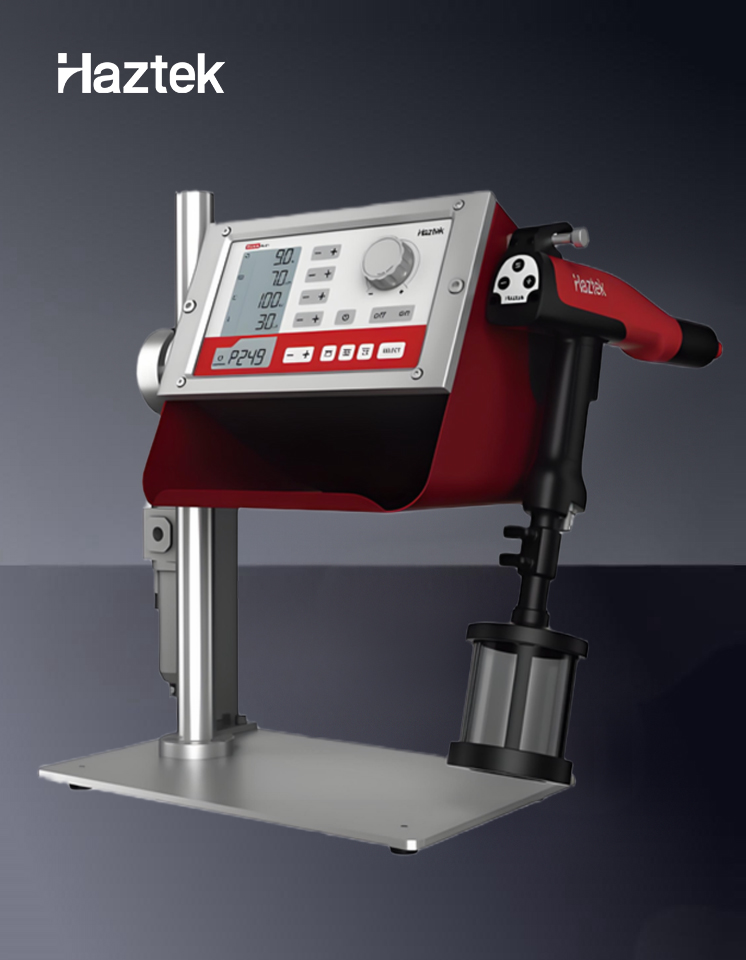

Milepost Series Desktop Lab Manual Powder Coating Equipment with Small Cup (High-end Series)

Parameters

- Standard input voltage: 110-220VAC

- Frequency: 50-60Hz

- Standard output voltage(to spay gun): 12V

- Standard output current(to spray gun): 1.2A

- Gun output voltage: 100KV

- Gun output current: 100uA

- Polarity: Negative electrode

- Protection Level: IP54

- Temperature range: -40 ℃-85℃

- Air inlet pressure: 5.5-6bar

- Maximum air consumption: 8.5Nm³/h

- CANBus fieldbus: Support

- External control(workpiece recognition system): Support

- Metal powder: Support

- Other polyester powder: Support

- Powder hose length(m): 5

- Powder hose specification ⌀(mm): 11*17

- Powder hose material type: POE with conductive strip

- Maximum powder discharge rate: 520g/min

Characteristics

- Corona Charging Technology;

- DVC Precise Control Adjustment Technology;

- PCC Precise Charging Technology;

-  Manual spray gun MG20 built-in 100kV high-voltage module, suitable for most common powders.

- Support CANopen communication;

- Digital panel with soft-touch buttons.

- MG20 manual spray gun features a control module for switching between powder, atomization, current, and voltage settings, with +/- buttons for quick adjustments.
