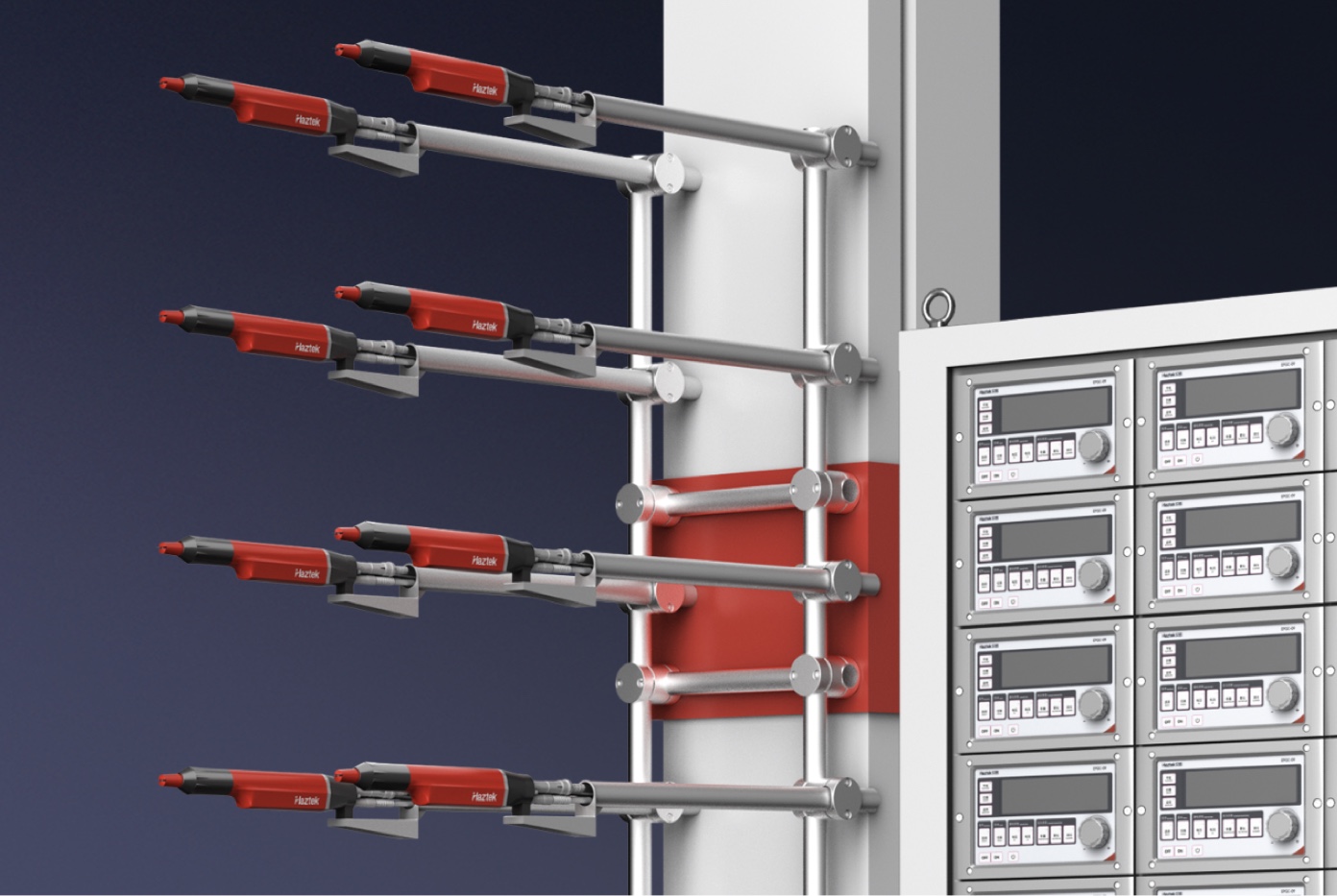

AG09 Powder Spray Gun Controller

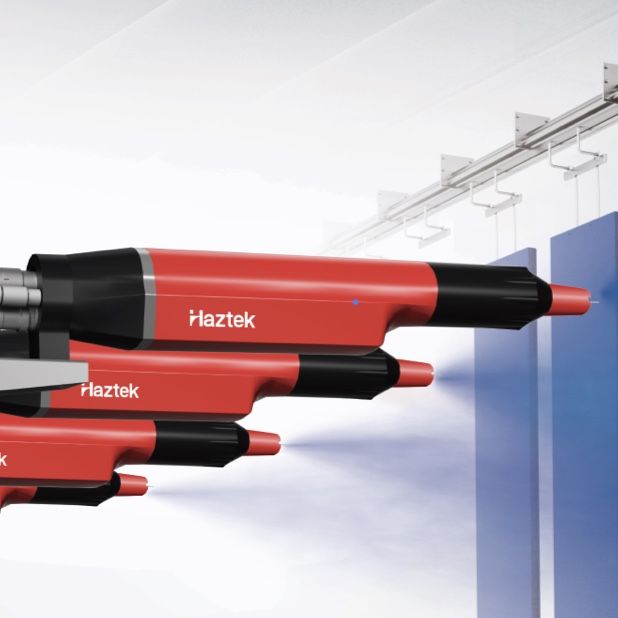

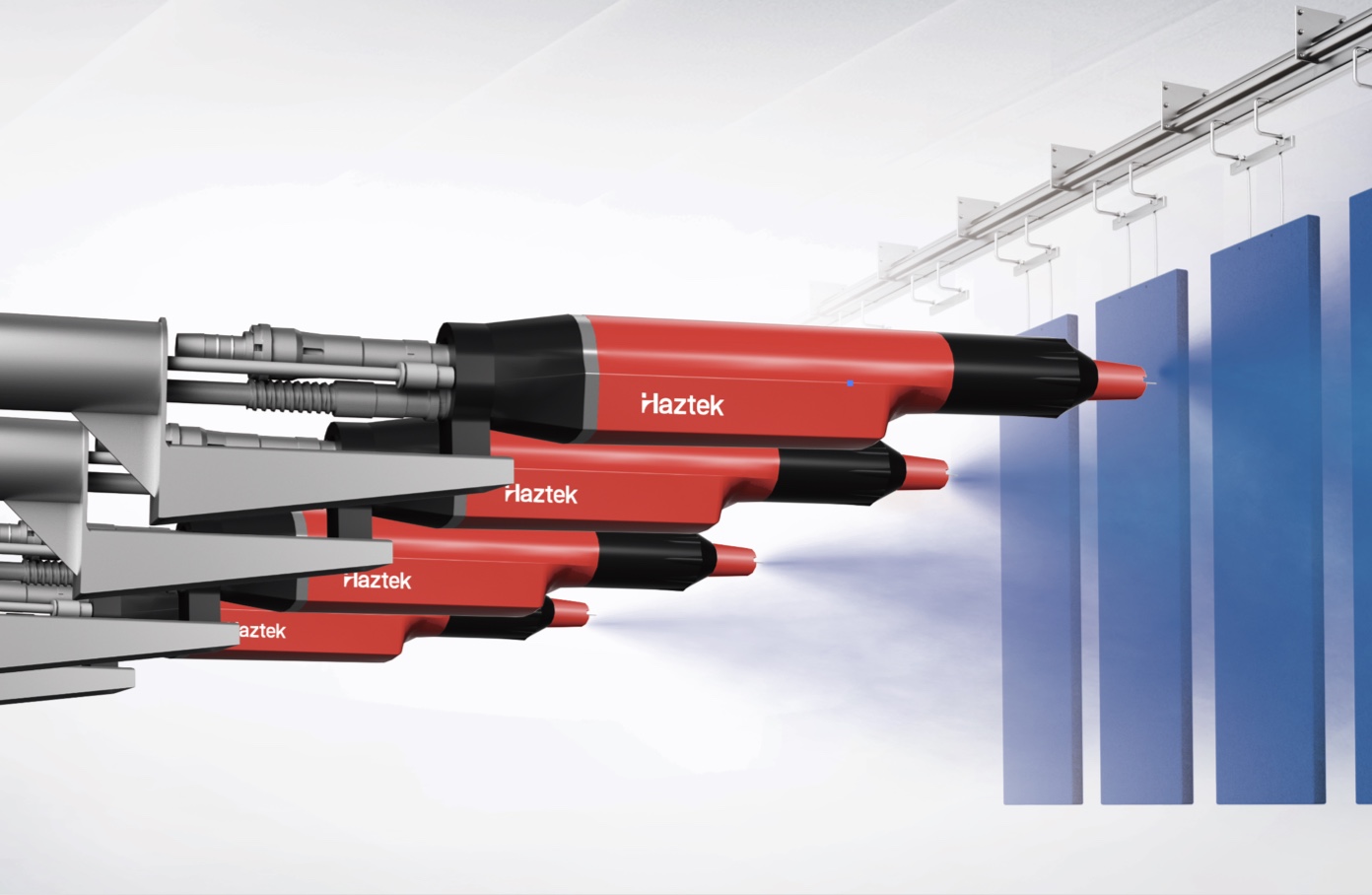

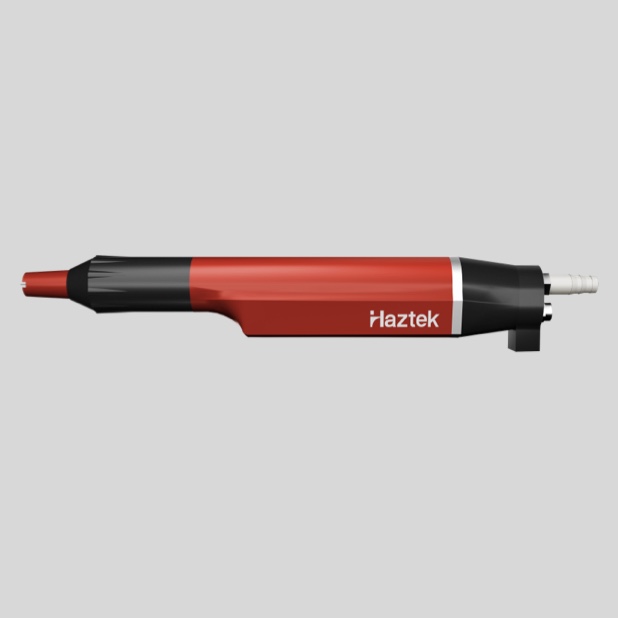

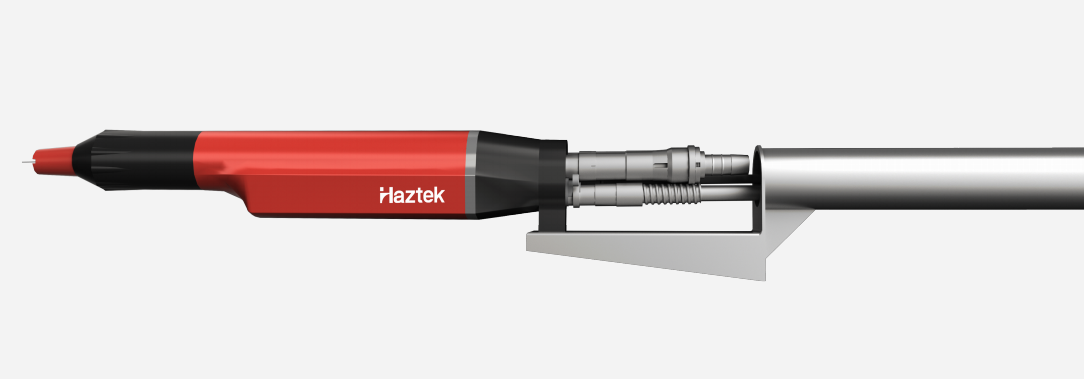

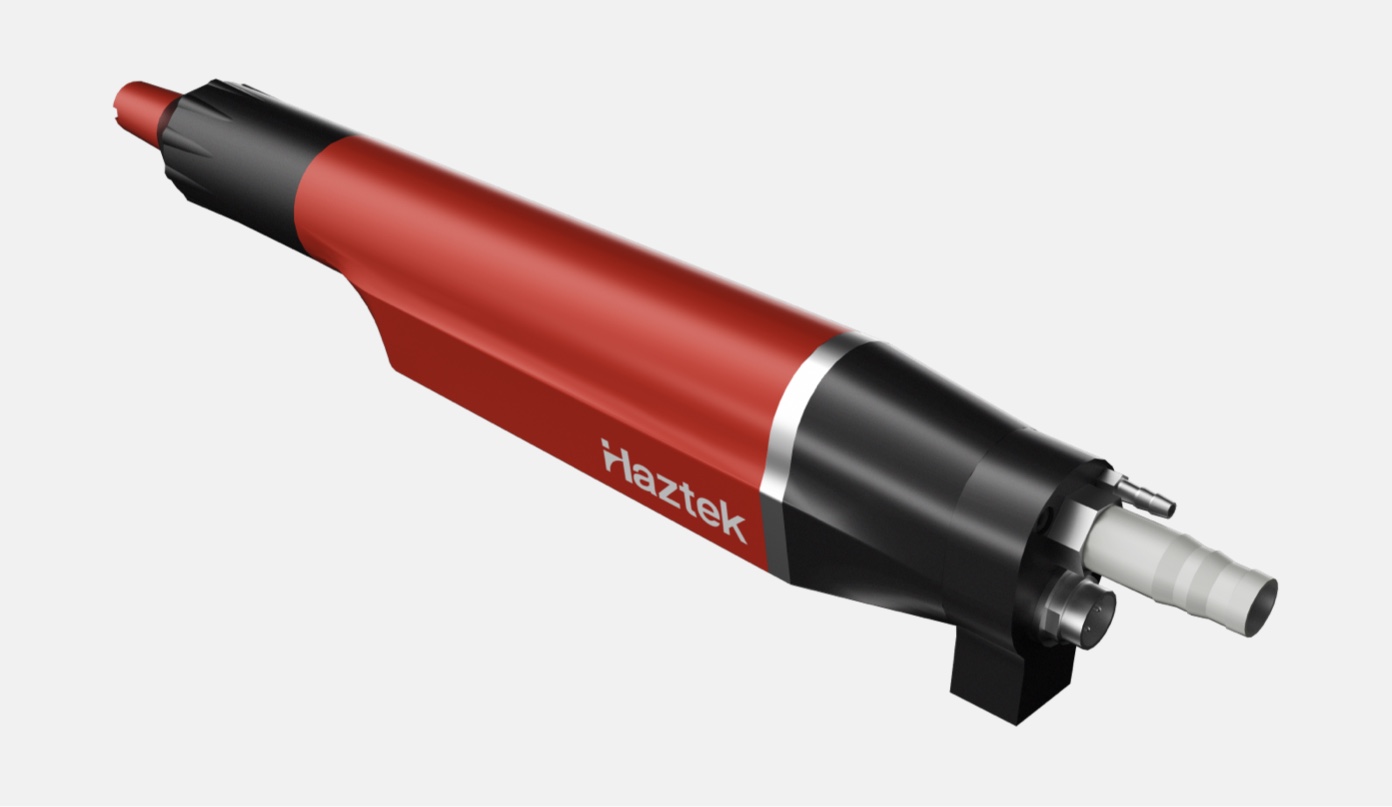

AG09 Automatic Spray Gun

TBuilt-in 100kV high-performance voltage-doubling block ensures stable continuous output,  thereby achieving an extremely high powder deposition rate. The electrode needle features an  internal triple air intake technology, which keeps the electrode needle tip clean, effectively  preventing powder agglomeration and ensuring excellent electrostatic discharge effect. Elbow  nozzles with various angles (90°, 120°, 135°) are available. It is compatible with most common  powders, including metal powders, meeting various coating requirements and catering to diverse  needs.

The AG20 Automatic Electrostatic Powder Spray Gun outperforms other domestic brands in an  all-round way in terms of internal structural design, electric field control system, and powder  delivery technology, while matching the performance of high-end European and American  spraying equipment in multiple key performance indicators (KPIs). Manufactured to extremely  high process standards, the spray gun selects core components from world-class brands,  boasting longer service life and higher stability; its precise voltage and current control as well as  modular structural design enable it to demonstrate outstanding adaptability and consistency in  coating operations for complex structures such as flat surfaces, grooves, and irregular shapes.

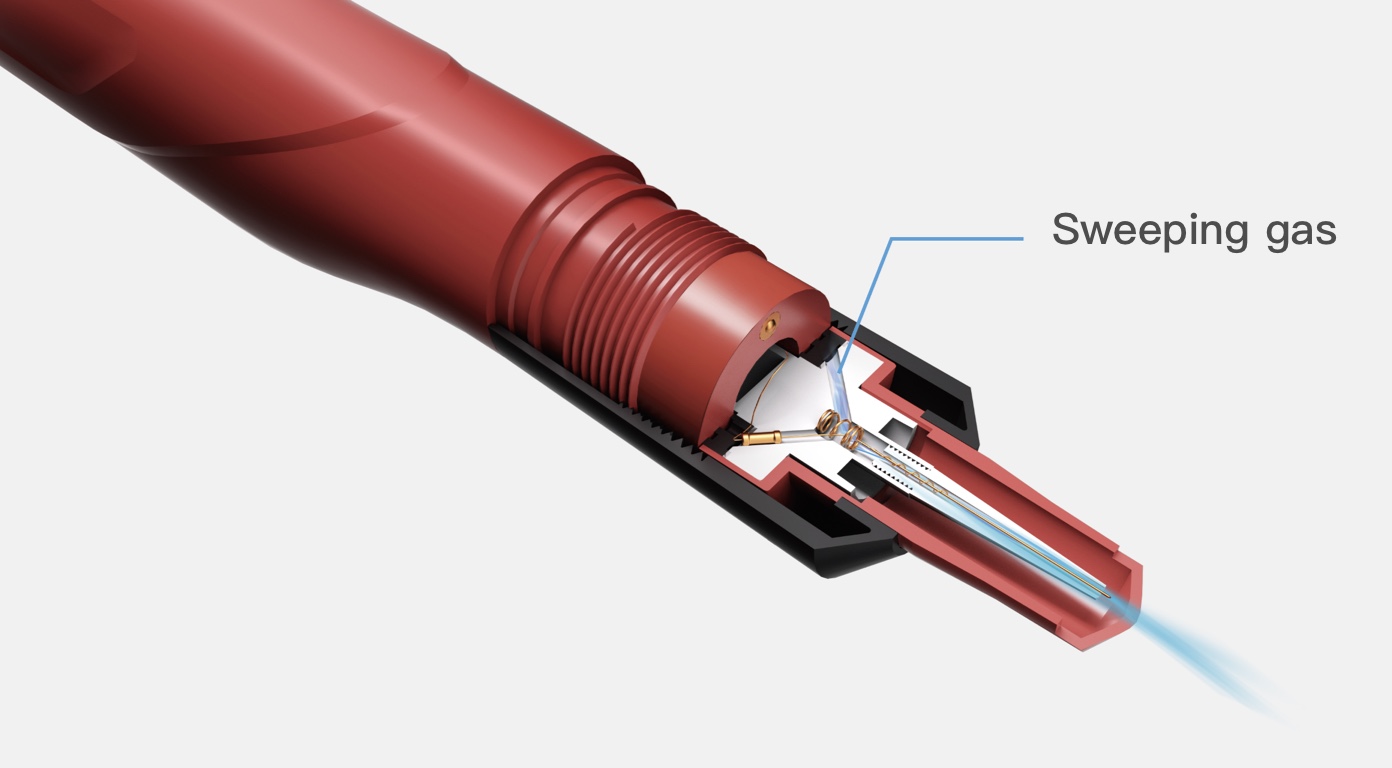

Electrode needle self-cleaning / three-time intake  technology

The internal design of the spray gun features three cleaning gas channels, which can  continuously clean the electrode needle tip, effectively preventing powder condensation, thereby  ensuring excellent electrostatic release. This helps to improve the charging efficiency and  powder application rate of the powder, thus enhancing the coating efficiency. At the same time,  a clean electrode needle aids in sustained and non-decaying electrostatic release, allowing for  more stable and thorough charging of the powder.

AG09 equipment parameters

Standard input voltage：100-240VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h
