GC09S-Automatic Powder Coating Equipment: Master Controller+ Automatic Spray Gun

Multiple Preset Spray Modes Make Production Of  Difficult-To-Spray Workpieces Easier.

The GC09 series is centered around efficiency, intelligence, and ease of use. With 250  programmable spray coating programs built into the system, it can handle various complex  workpieces and spraying challenges with one click, significantly reducing the difficulty for  operators to get started. This not only lowers operational complexity but also boosts production  efficiency, while ensuring high-quality coatings, achieving cost reduction and efficiency  improvement in production management, and enhancing business profitability and growth  potential.

The system supports the 485 bus Modbus communication protocol, allowing the GC09 spray  gun system to easily interconnect with external devices, forming an intelligent control system  that enables more efficient production automation and simplifies coating challenges.

One-time powder coating efficiency rates of up to 70%.

Solving three major difficult-to-spray workpieces with just a touch / Does not pick operators,  easy to understand, easy to master just like a skilled worker.

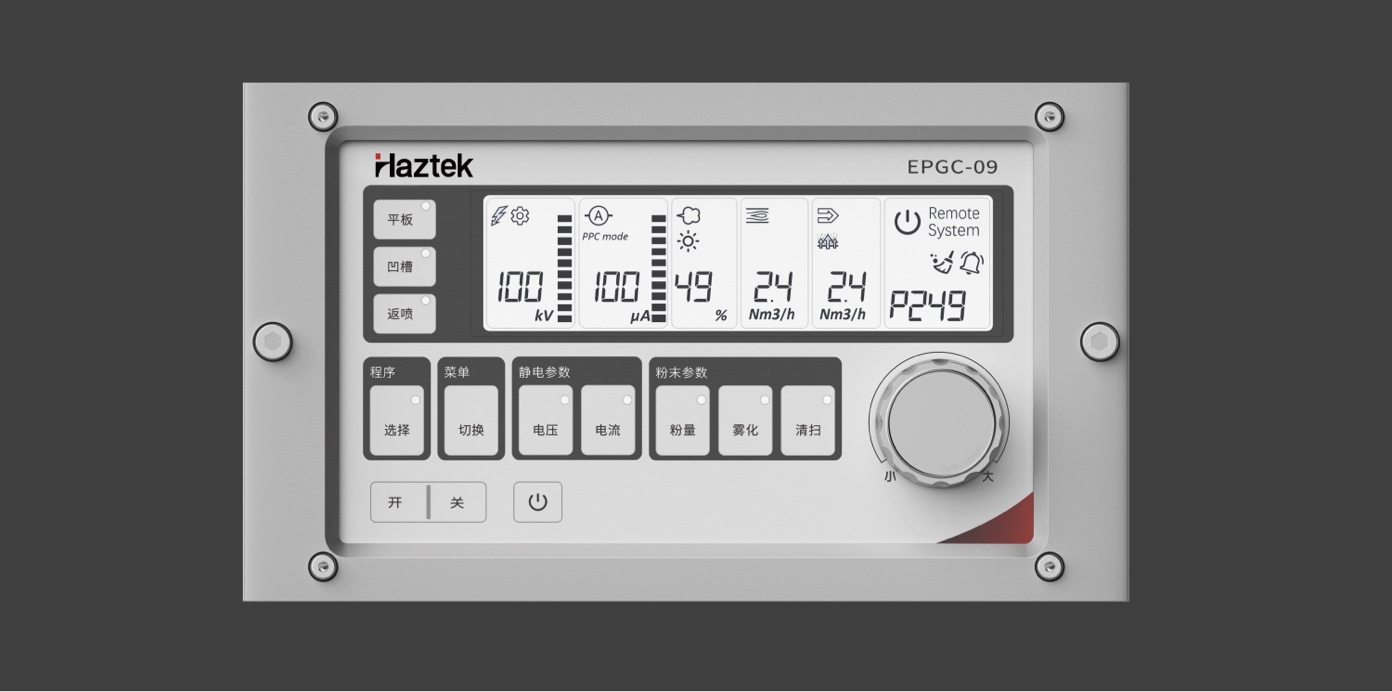

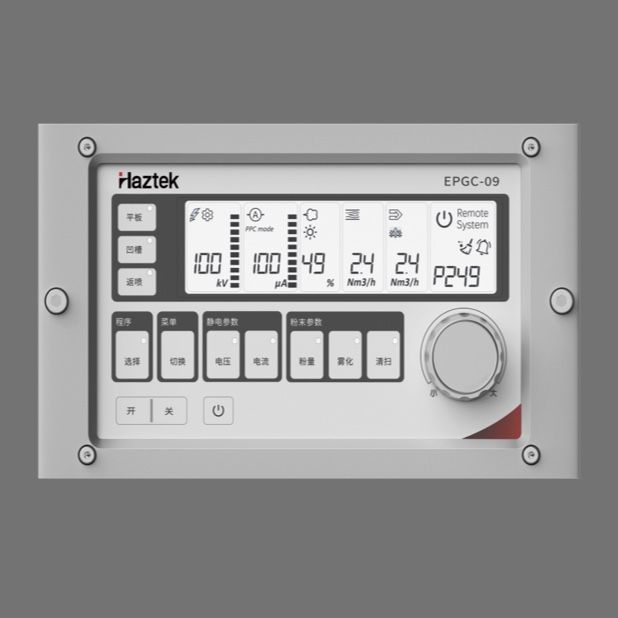

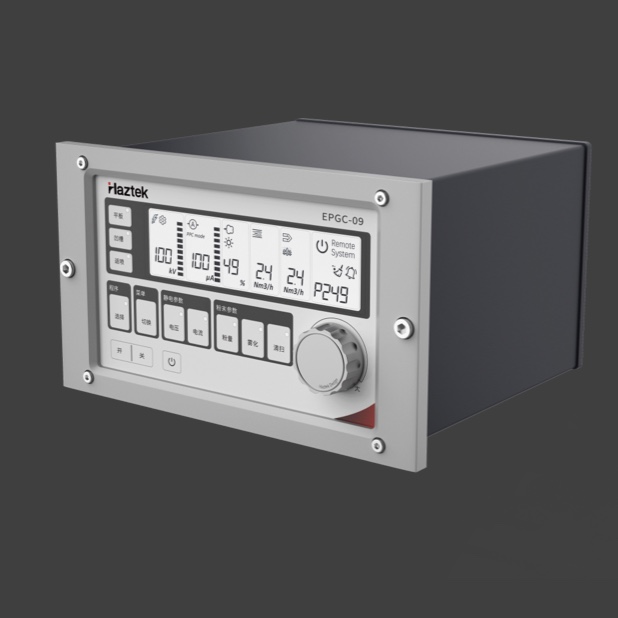

The GC09 has three modes on the controller: flat workpiece, groove workpiece, and re-spray  workpiece, which quickly improves spraying efficiency and quality, and also reduces the  experience required of the operator. The controller's function control layout is clear, easy to  understand, and extremely easy to use.

Automatic Current Control (ACC) Technology

ACC technology controls the electric field intensity to achieve uniform distribution of the electric  field in various grooves or corners. This allows powder particles to deposit uniformly on the  entire surface of the workpiece, without insufficient deposition in certain areas due to the  Faraday cage effect.

DVC proportional valve control technology

DVC proportional valve control technology precisely controls the powder output, combining the  flexibility and high concentration powder supply of PPH40 and specially designed nozzles to  achieve more stable powder output and excellent atomization effects. It also has excellent  powder compatibility, ensuring high-quality and continuous coatings.

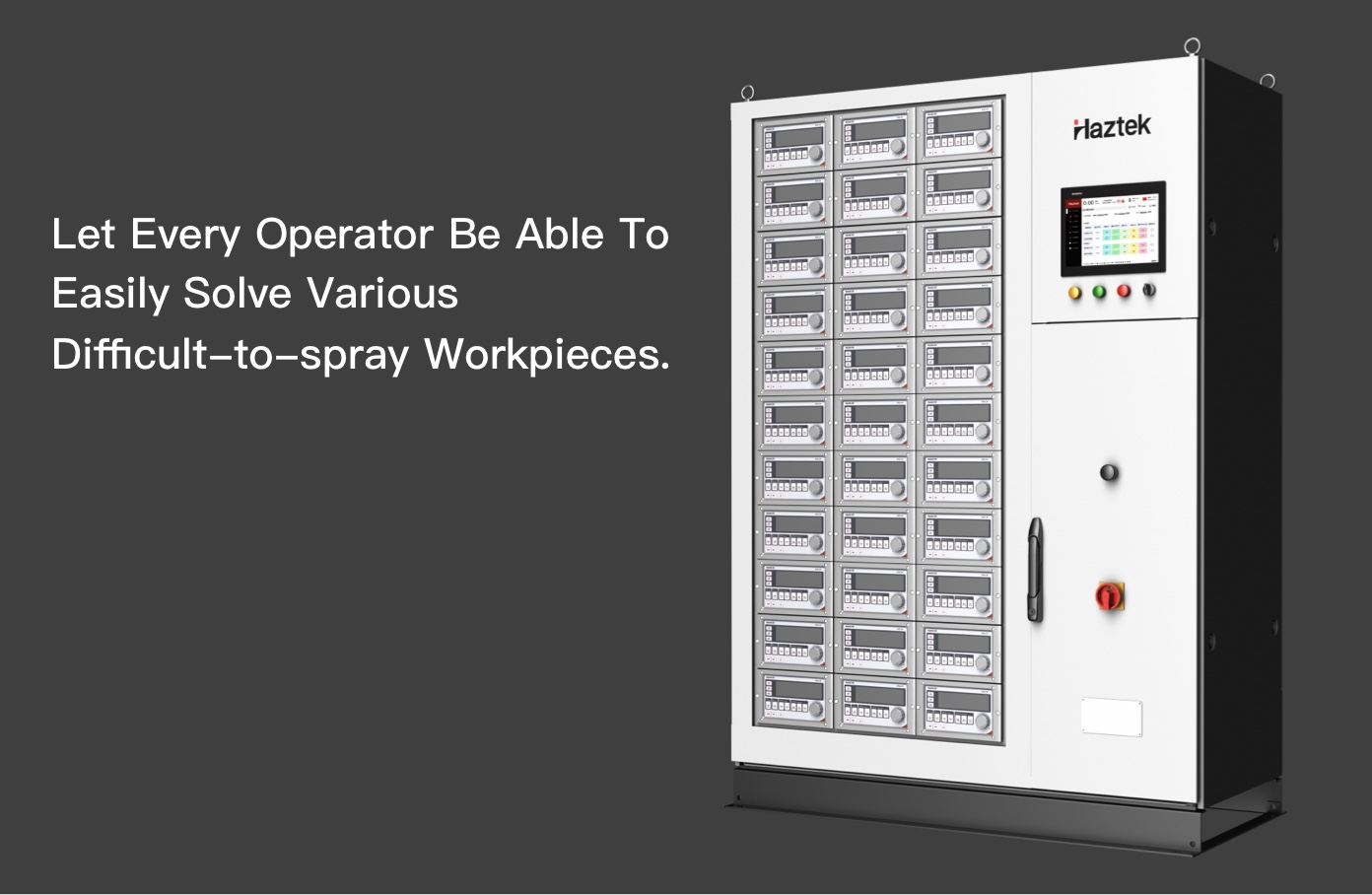

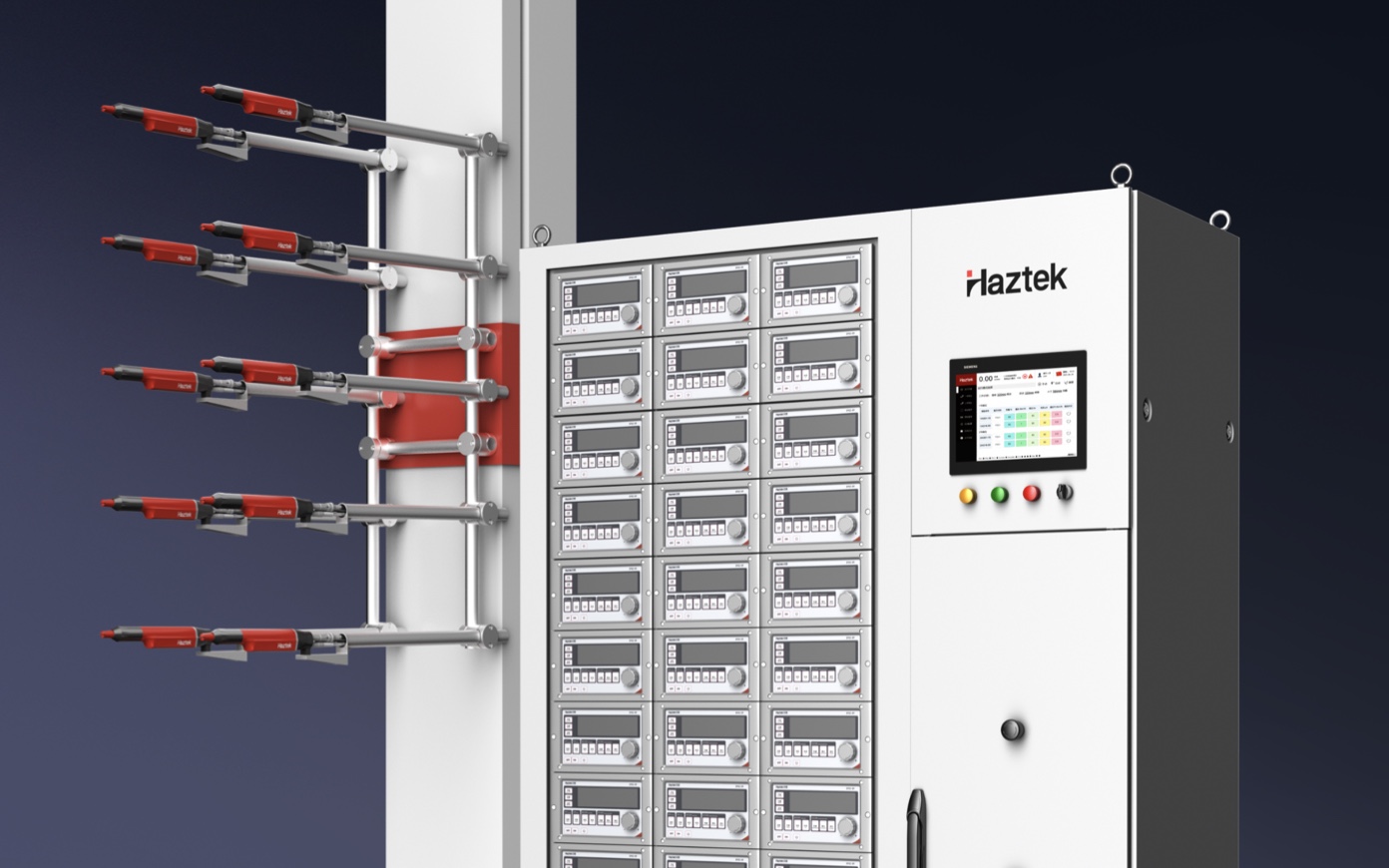

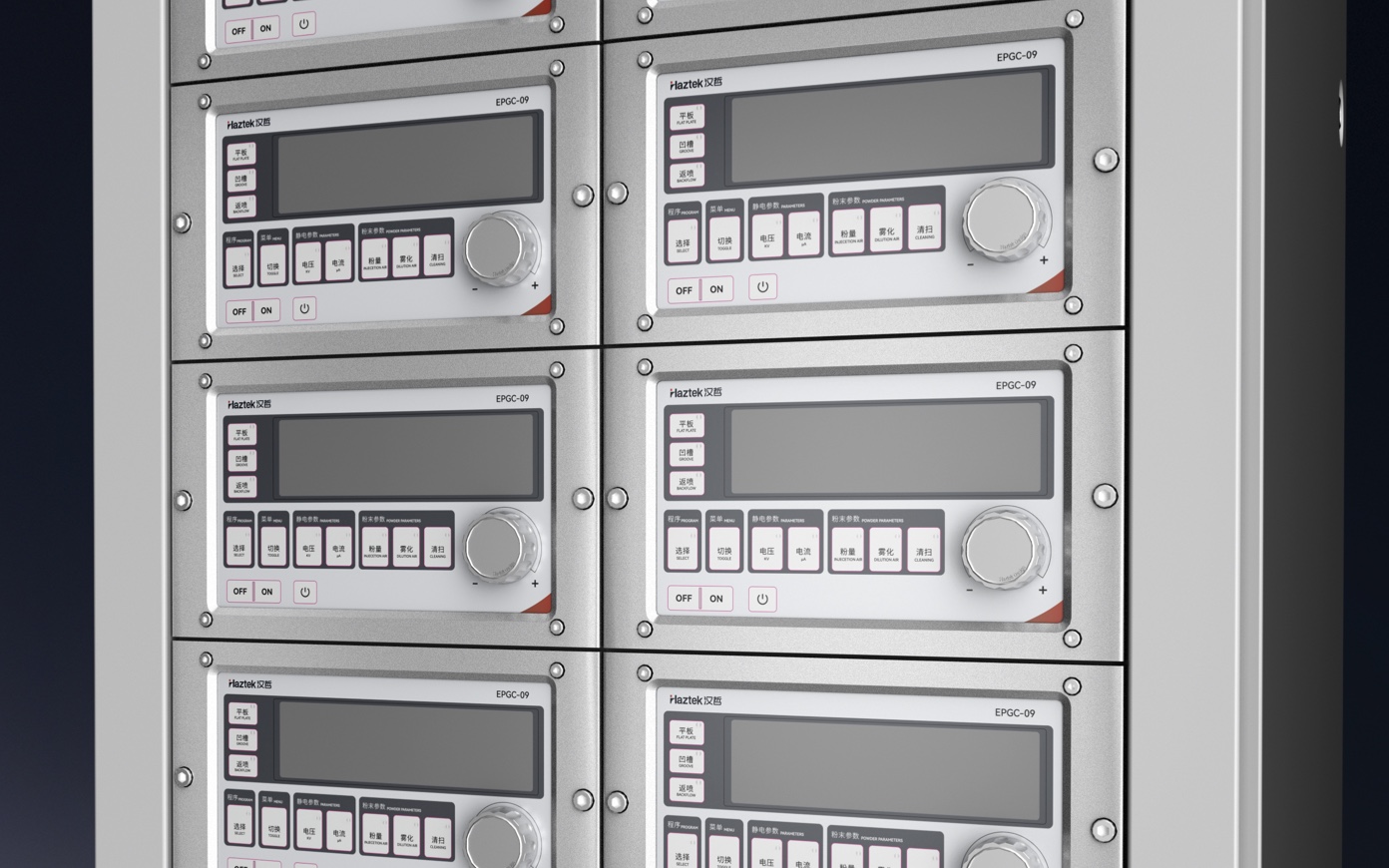

GCS Spray Gun Control System / A great tool for largescale spray gun deployment.

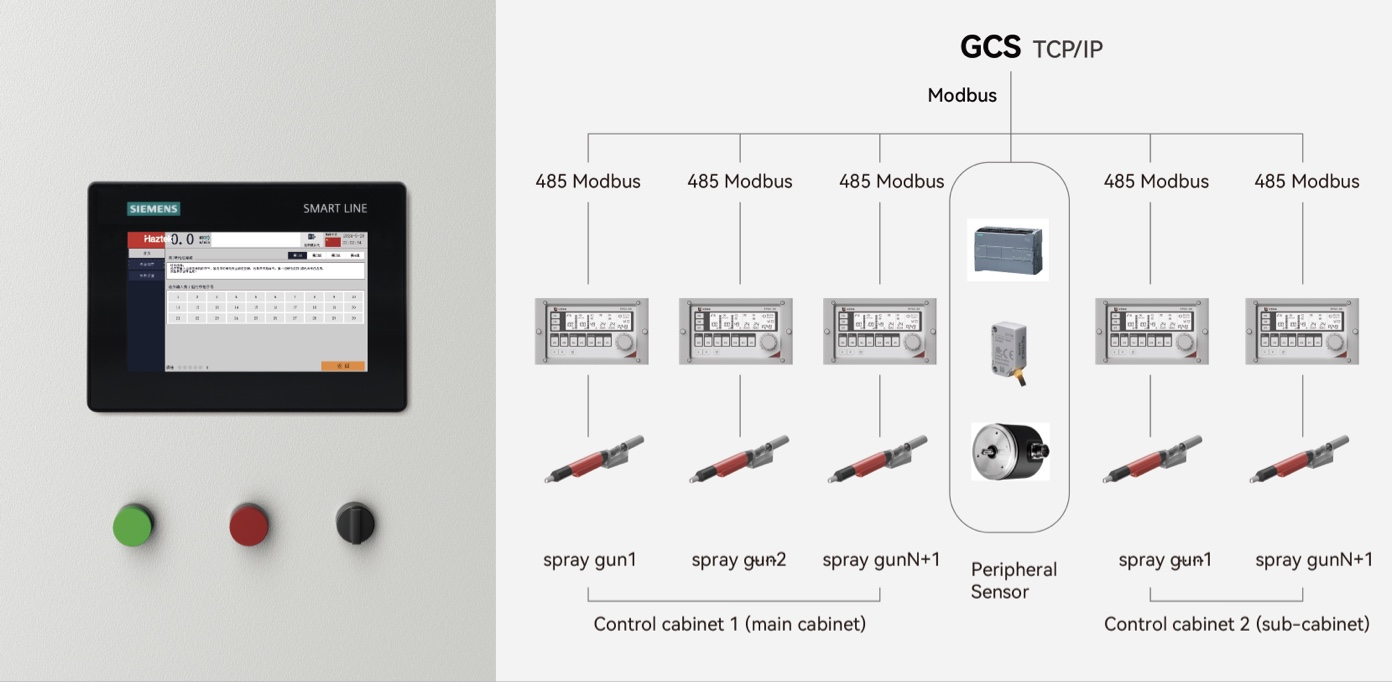

Simple and easy-to-understand HMI, centralized control of all parameters and precise point-to-point control. The reliable ModBus communication bus supports up to 127 stations

simultaneously and allows the deployment of workpiece identification and remote maintenance

systems. In addition, the control system also features one-button synchronized cleaning.

GC09 equipment parameters

Standard input voltage：100-240VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h

Other functions

Canbus fieldbus：Support

External control （workpiecerecognition system）：Support

Powder coating capability

Metal powder capability：yes

Other polyester powder capability：yes

Standard configuration

Powder hose length (m)：6

Powder hose specification Ø (mm)：12*17

Powder hose material type：POE with Conductive Strip

Maximum powder discharge rate：520g/min
