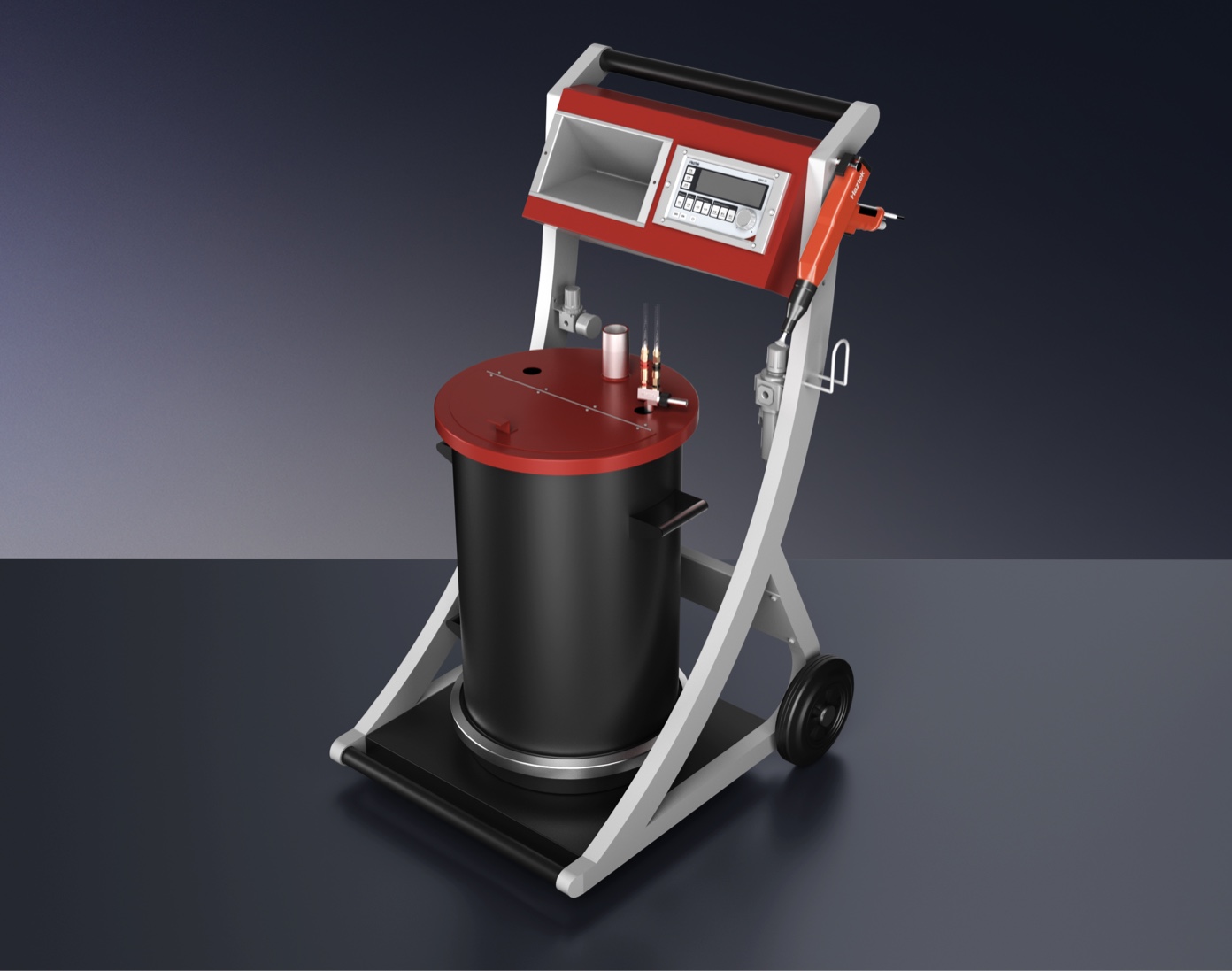

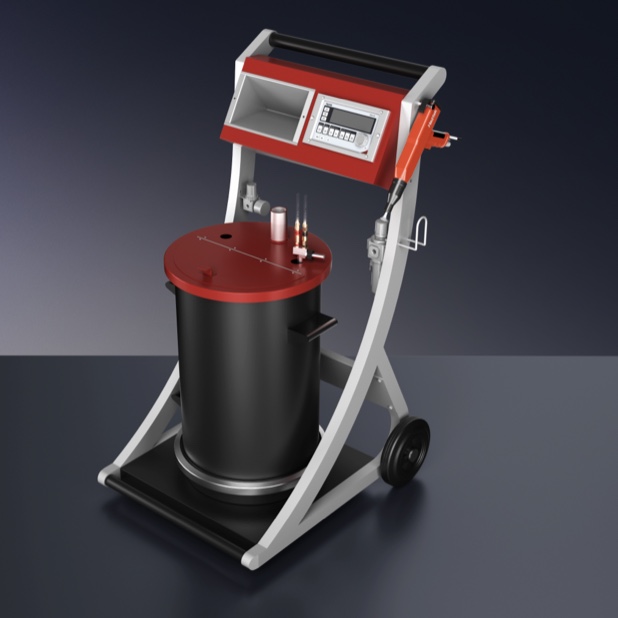

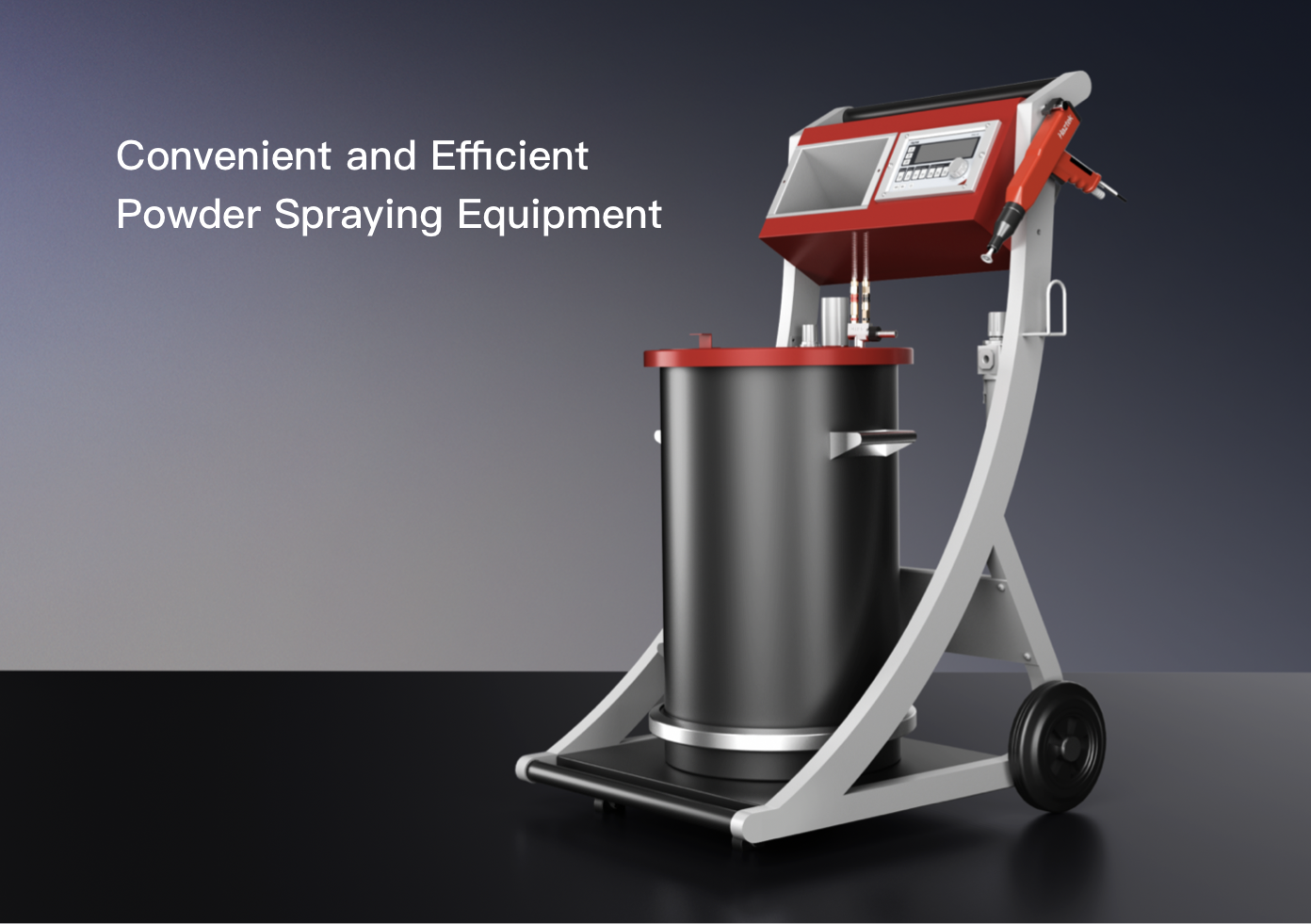

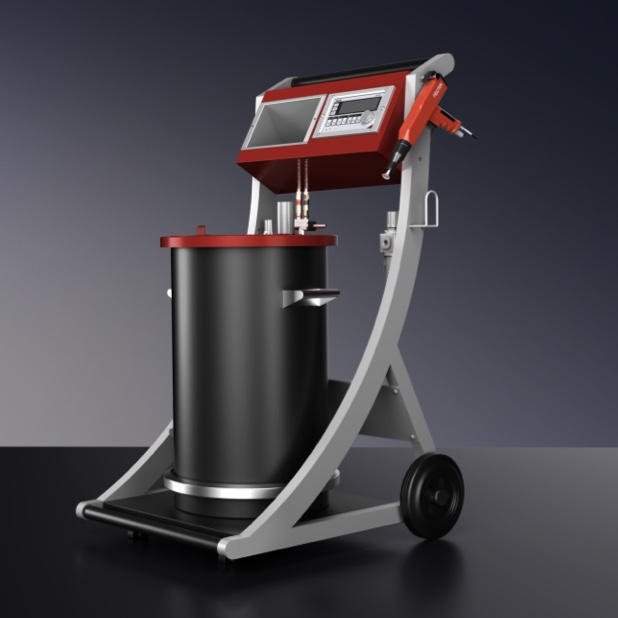

GC09S-F Manual Powder Coating Equipment

Adopts a modular trolley support frame, integrating spray guns, powder pumps, controllers, and  air source components, supporting quick relocation to different workstations. The trolley is  equipped with universal casters and braking mechanisms, enabling flexible deployment in  workshops, especially suitable for on-site spraying of large workpieces (such as automotive  frames, wheel hubs, construction machinery components, and irregular-shaped plates).

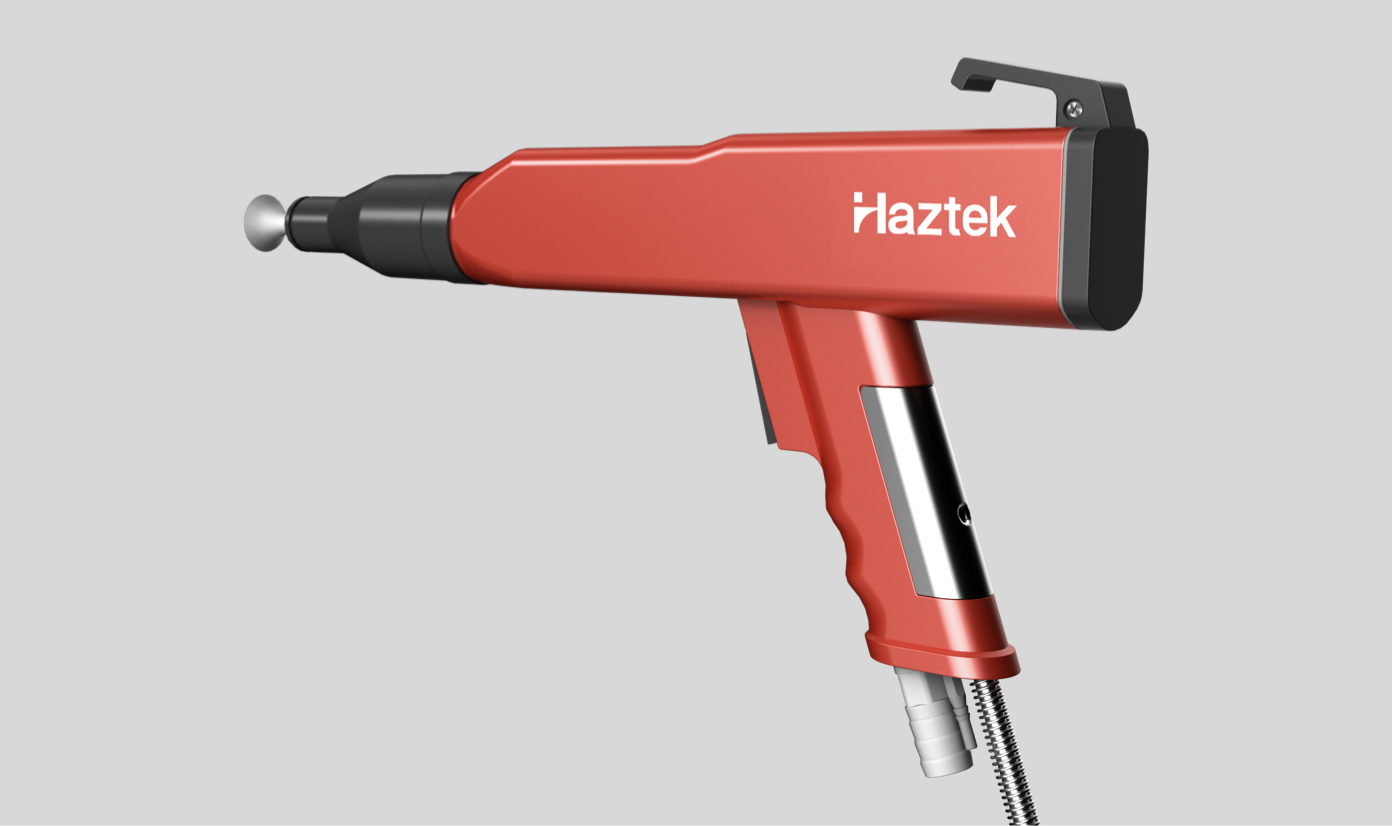

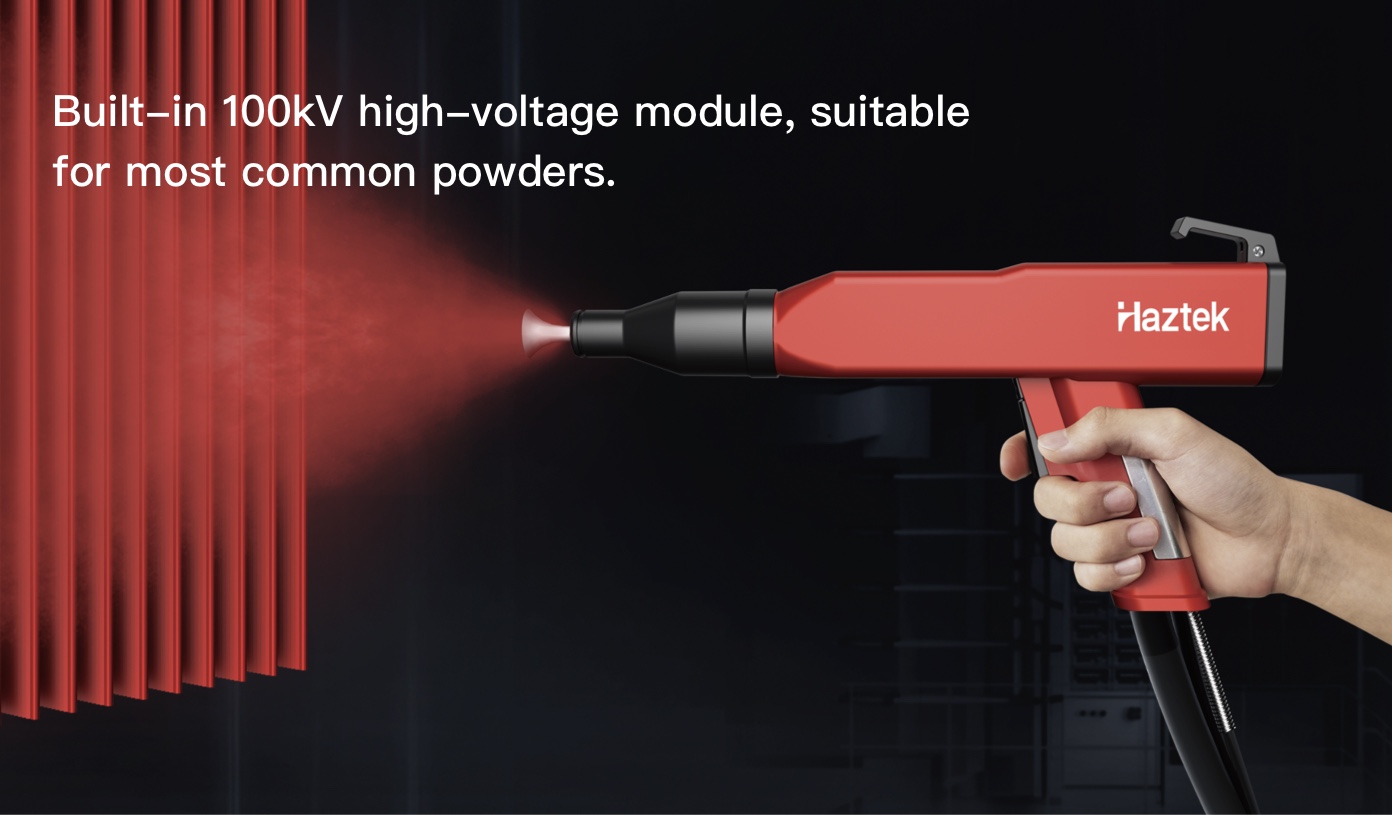

MG10 Manual powder spray gun

Built-in 100kV high-voltage module, suitable for most common powders. The built-in 100kV high-efficiency pressure doubler ensures a constant and stable output for  excellent powder coating results. It is suitable for most of the common powders, even for those  difficult to charge powder coatings, it can also realize efficient coating. In addition, its wearresistant design and preferred materials further reduce maintenance costs.

GC09-F Manual powder spray gun equipment parameters

Standard input voltage：100-240VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h
