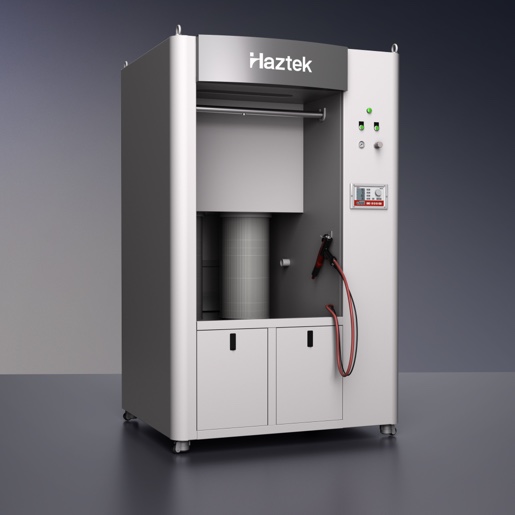

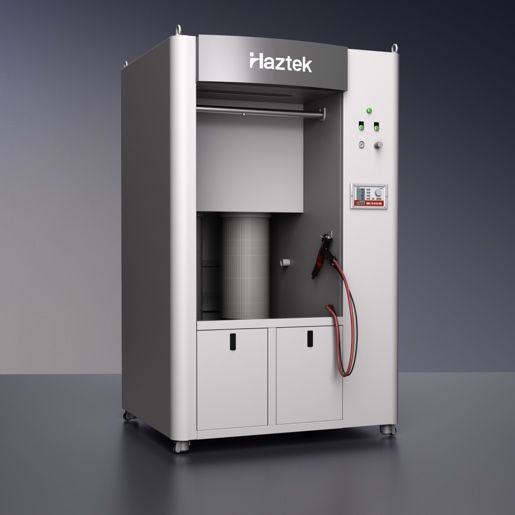

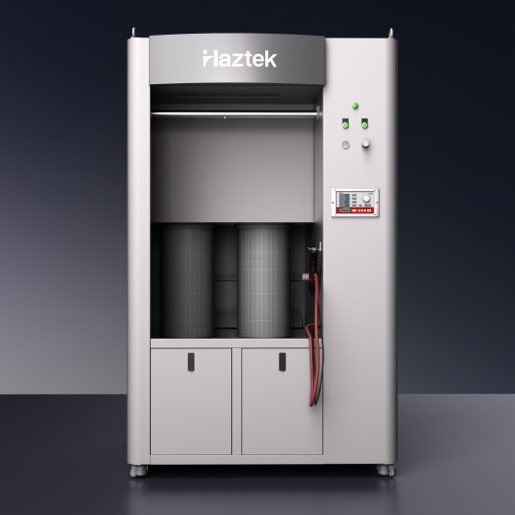

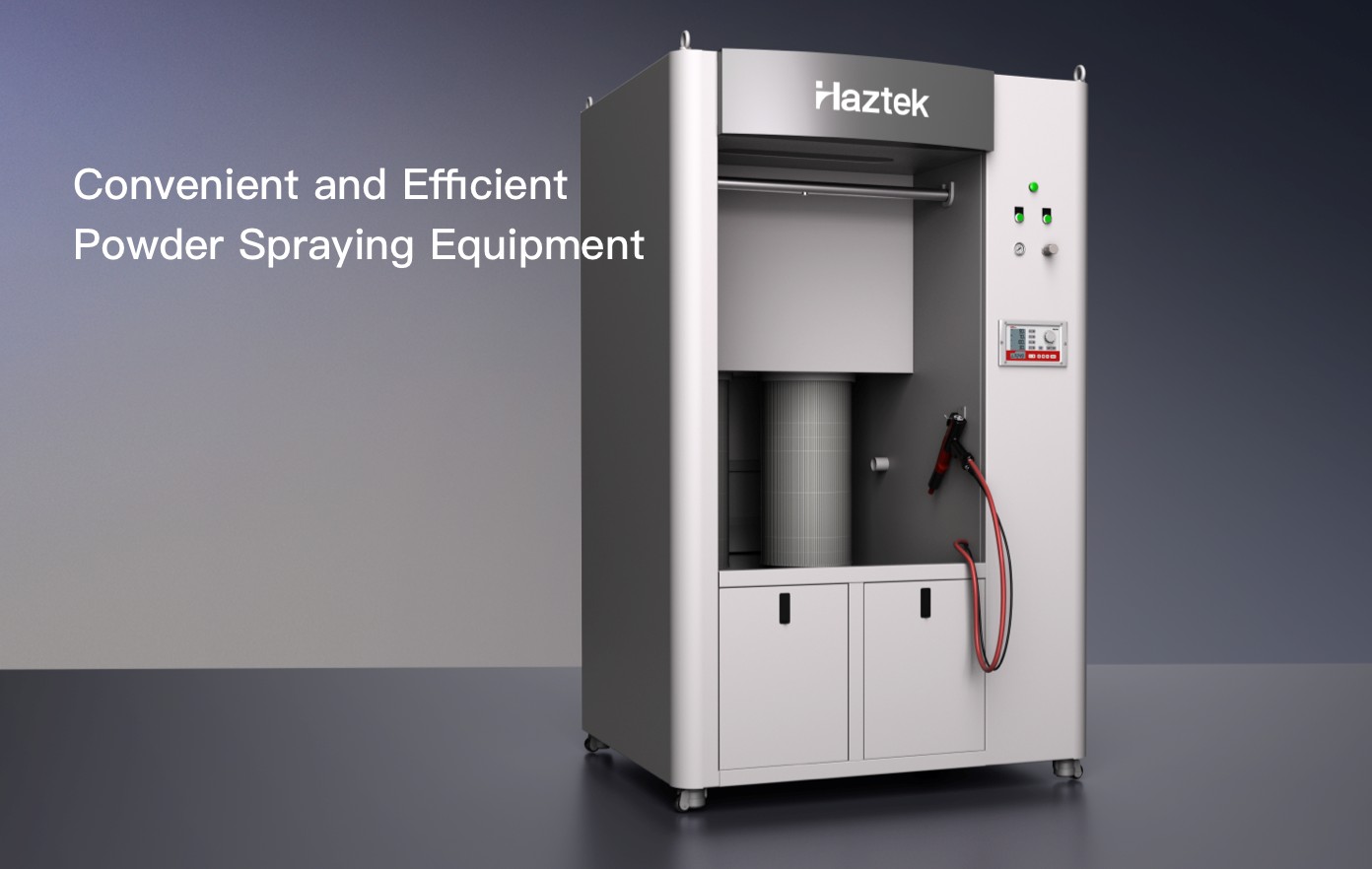

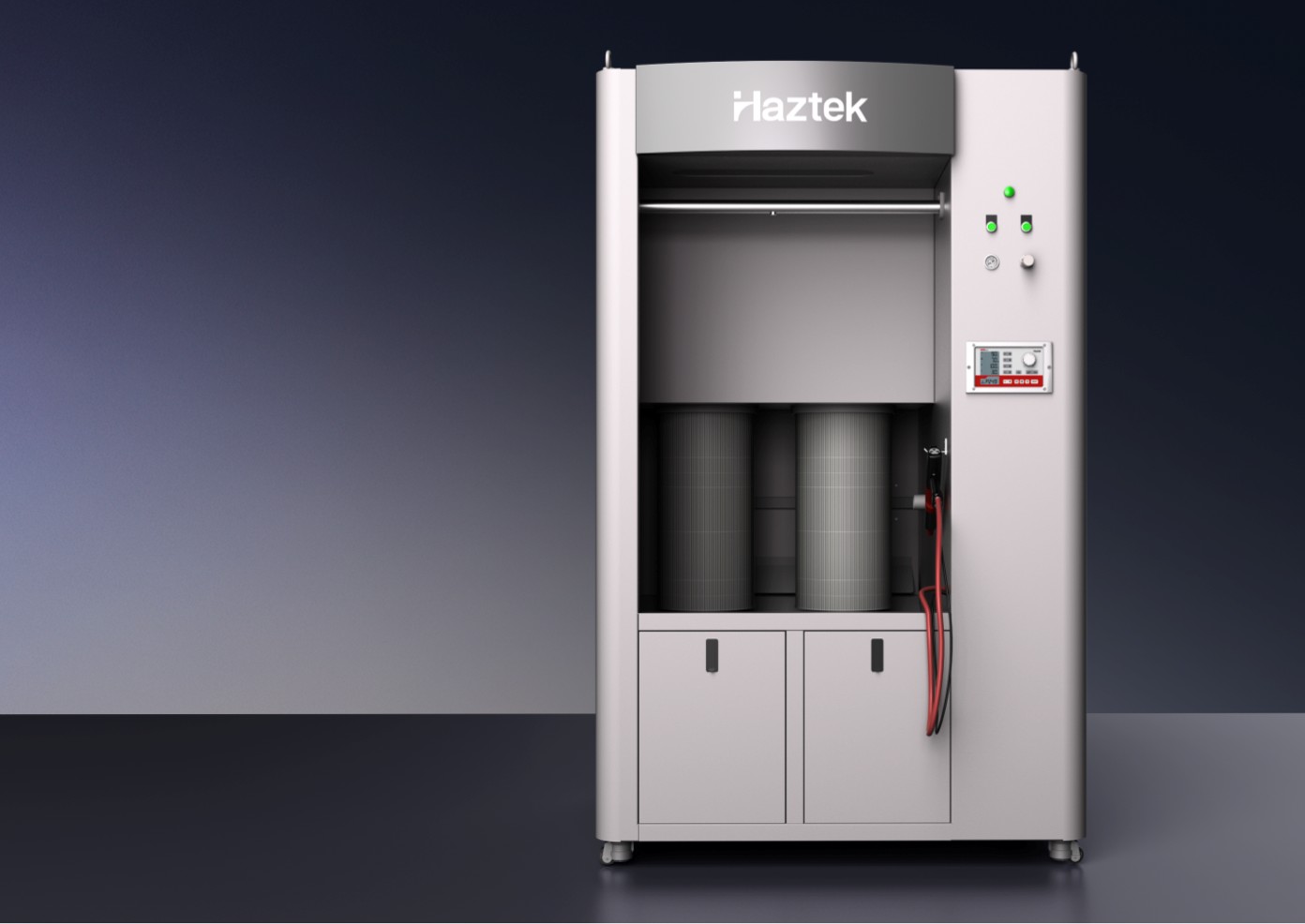

Manual Electrostatic Powder Coating 2 in 1 Booth

Functional Integration: Integrates the "manual electrostatic powder spraying" operation area  with the "powder recovery" system, eliminating the need for additional independent recovery  equipment and saving site space.

Operational Flexibility: Relies on manual operation of the spray gun, suitable for coating small  and medium-sized workpieces, special-shaped parts, or small-batch customized coating needs,  with flexible adjustment of spraying angles and ranges.

Cost Economy: The integrated design reduces equipment procurement costs, and the recovery  system can reuse unadsorbed powder coatings, reducing raw material loss.

Manual Electrostatic Powder Coating Booth（Dimensional Parameters）

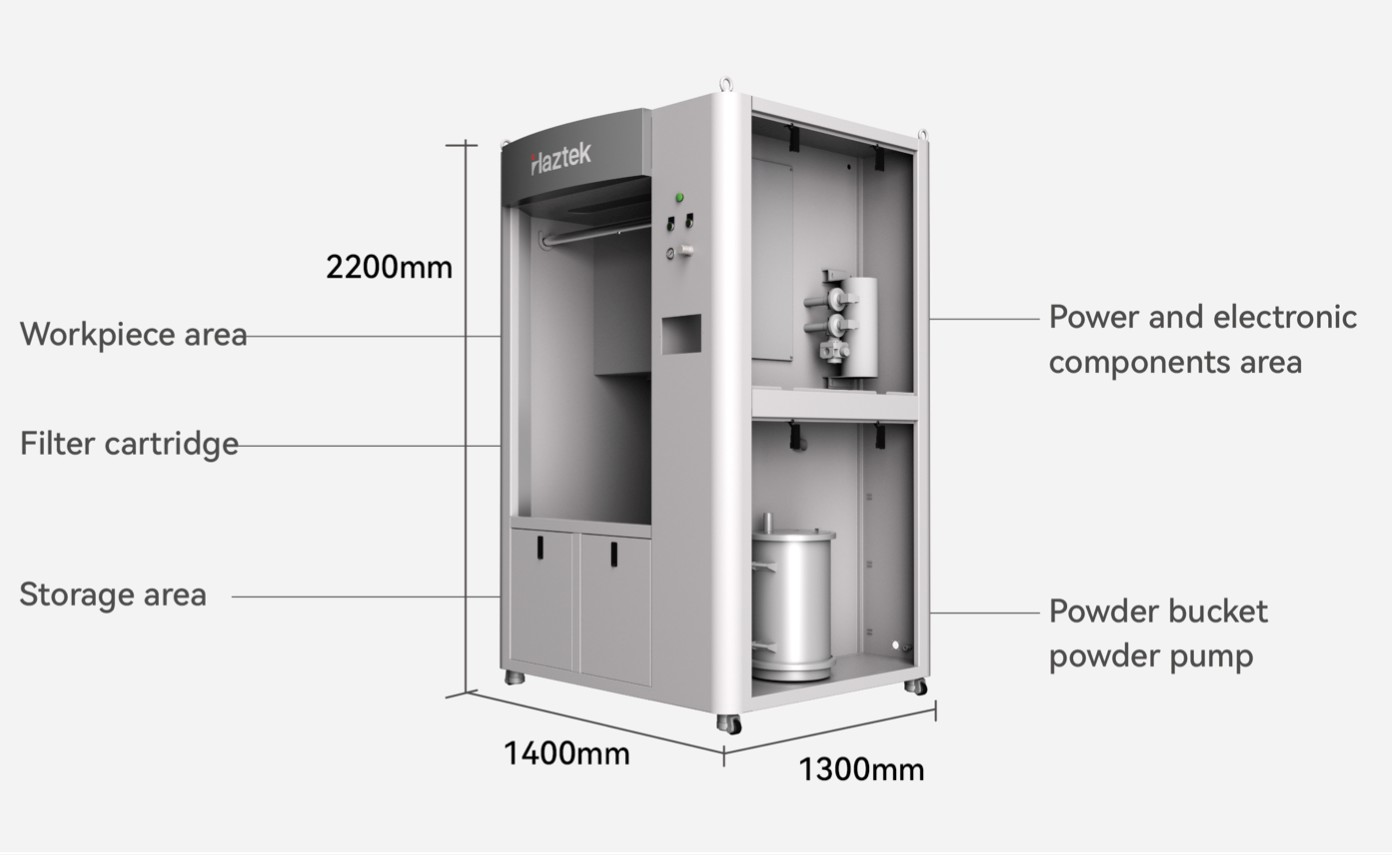

External Dimensions：

L14000 × W1300 × H2200 mm

Working Opening：

L880 × W550 × H1300 mm

Affect the operating space of artificial or mechanical spraying，Determine the volume of workpiece that can be accommodated

The recommended maximum size for workpieces is:

L300 × W250× H800 mm

About Size Customization:

1. The work area can be customized according to the size of the workpiece.

2. The fan power is matched according to the size of the work area, with a standard 1.5KW fan.  When the size of the work area increases, adjust the number of fans according to the actual  situation, along with the power and the number of filters.

3. Regarding the air compressor, a normal 220V air compressor with a power of 3180W and a  capacity of 40L is used.

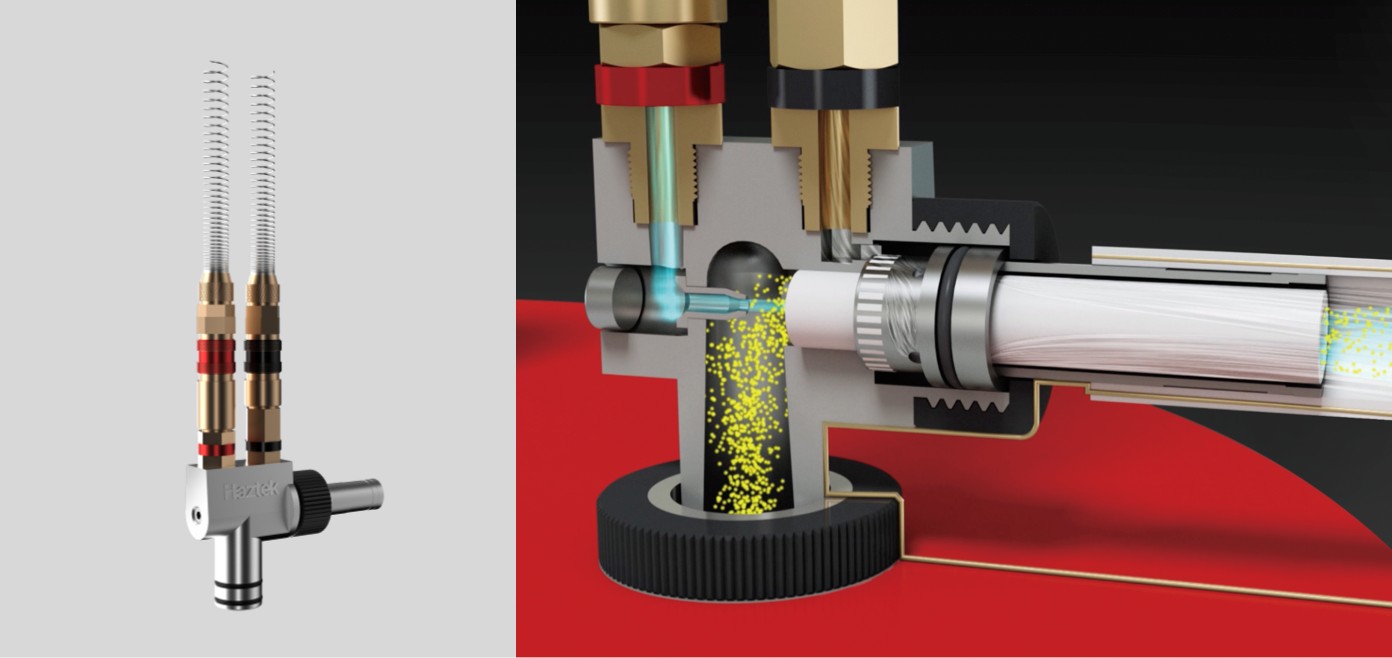

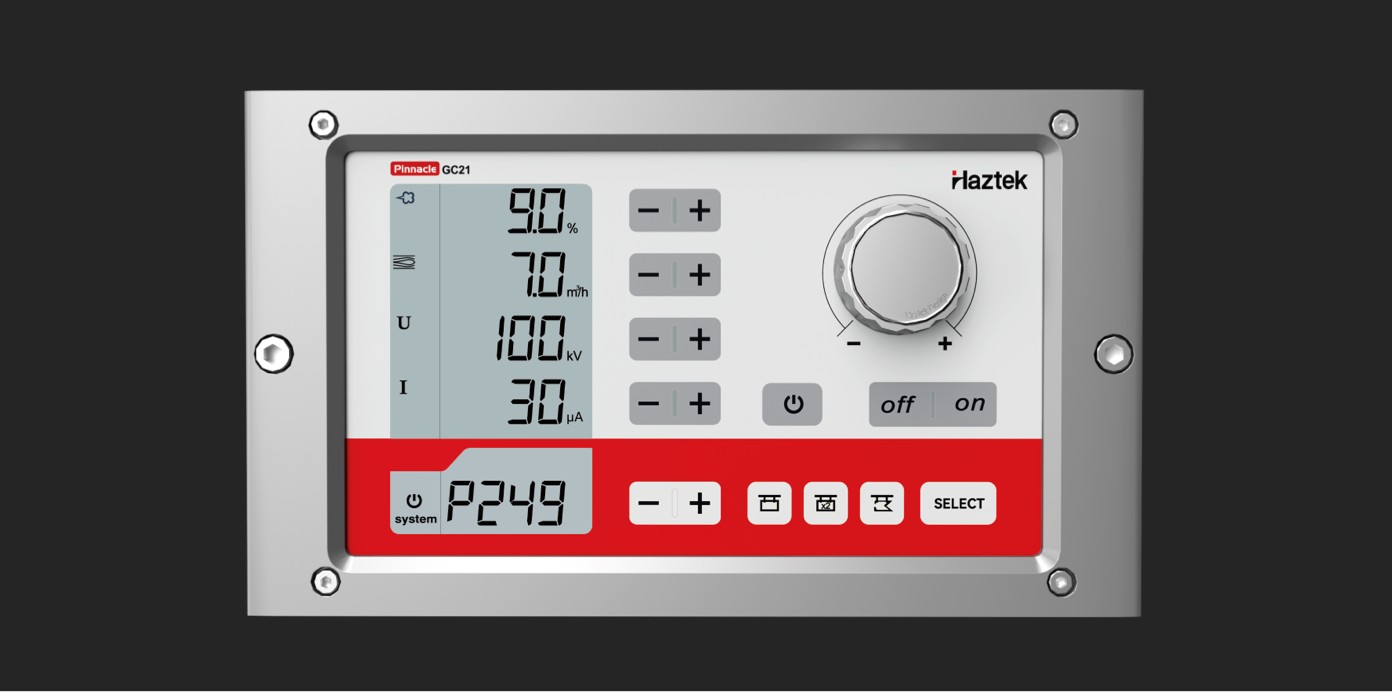

DVC Digital Valve Technology / Precise Powder Flow Control

This technology achieves stability and high consistency in the spraying process through the

precise regulation of powder output, atomizing air and delivery air.

PCC Precision Charging

Dynamic charge regulation and intelligent matching achieve efficient charging and uniform adsorption of powder particles, significantly improving coating quality and production efficiency.

For workpieces with complex geometries (such as automotive wheel hubs and home appliance casings), its charge regulation system can dynamically enhance the electric field intensity in hidden areas like deep cavities and grooves, ensuring the powder adsorption coverage rate is further improved.

250 Programmable Spray Programs, Enabling Repeatable Coating Effects

It can be programmed individually, store 250 custom programs, and these programs can be recalled at any time, ensuring quick and convenient operation.

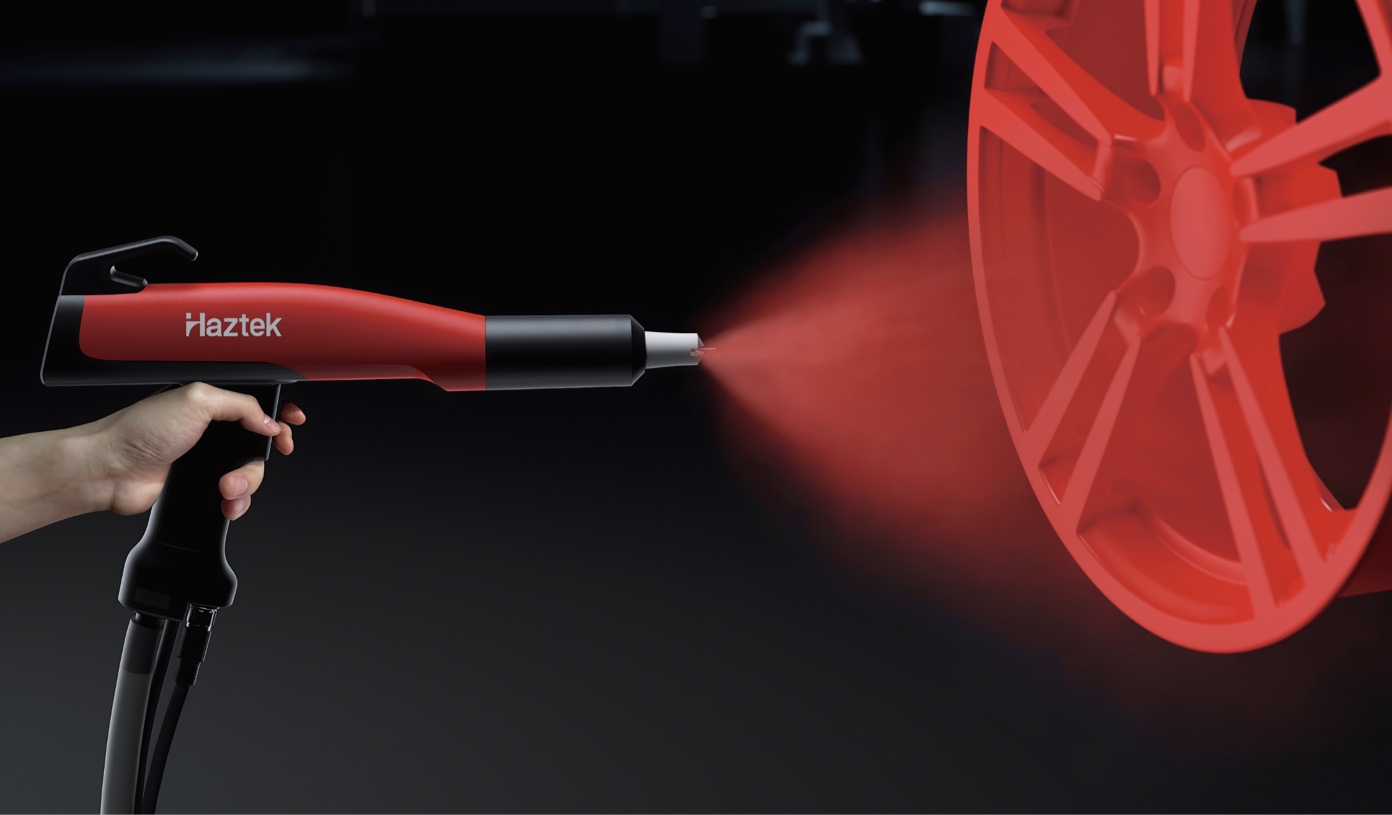

Manual Powder Spray Gun Mg20

Built-in 100KV high-voltage module, suitable for the majority of common powders; ergonomic  design; spray gun with quick parameter keys

PPH40 Automatic Sprayer Suitable for quick color change and quick cleaning

The product meets the "plug and play" functionality, suitable for quick color changes and quick  cleaning. The quick insertion design of the powder tube facilitates the separation and  connection for cleaning. The Venturi tube is made of high-quality non-stick material and is  equipped with a quick connector for connecting compressed air. The powder supply is stable  and even, with excellent atomization effect, which helps to form high-quality coatings. The  maximum powder output rate can be up to 520g/min (depending on specific configuration and  powder type).

Manual Electrostatic Powder Coating 2 in 1 Booth Equipment Parameters

Standard input voltage：100-240VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h

Other functions

Canbus fieldbus：Support

External control （workpiecerecognition system）：Support

Powder coating capability

Standard configuration

Powder hose length (m)：16/20(Standard Powder Hose Options for Automatic Spray Guns)

Powder hose specification Ø (mm)：12*18/11*17

Powder hose material type：POE with Conductive Strip

Maximum powder discharge rate：520g/min
