MG10 Manual Powder Spray Gun

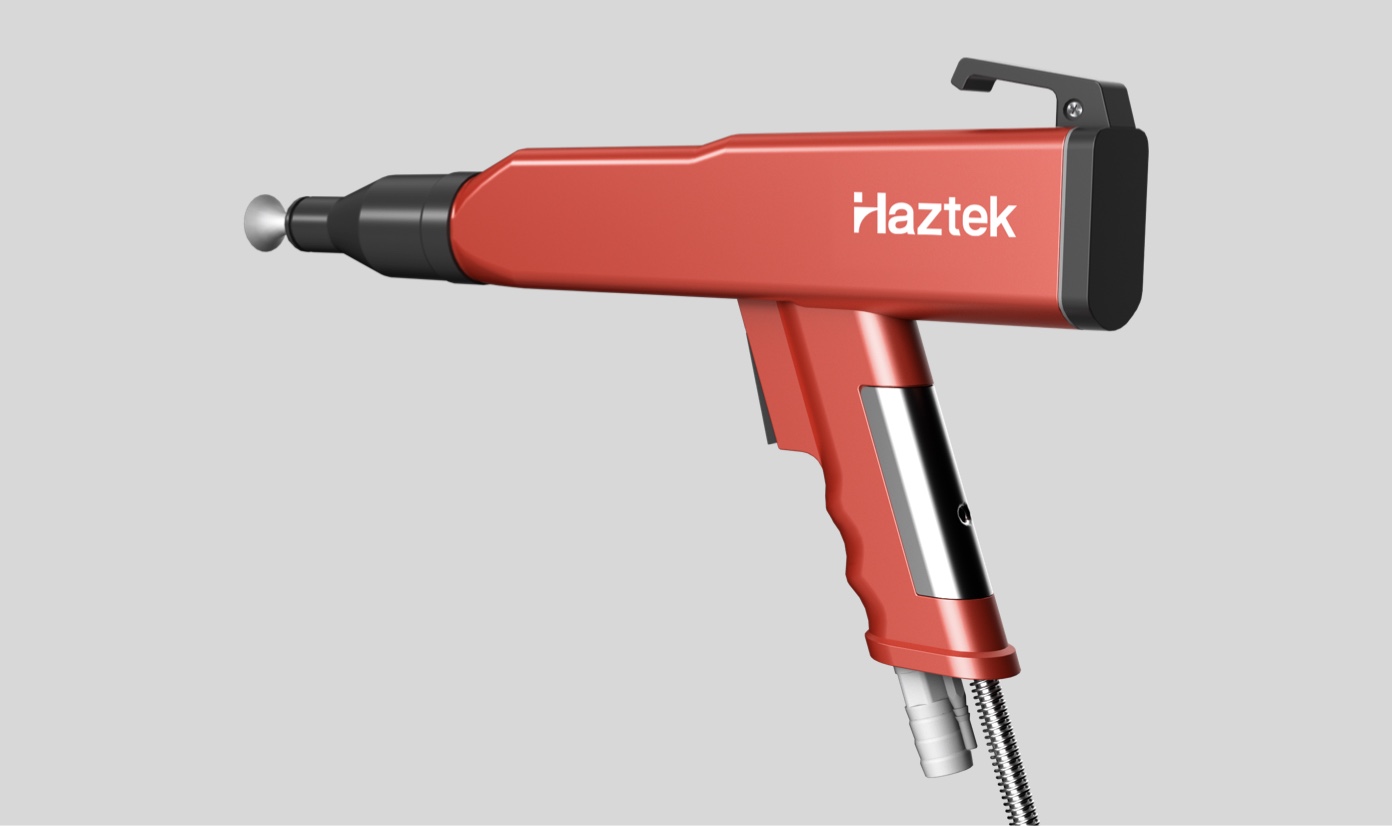

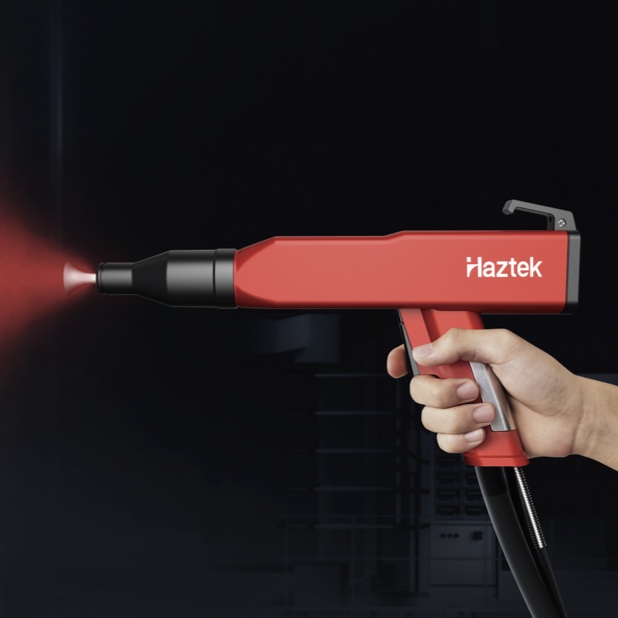

MG10 Manual powder spray gun

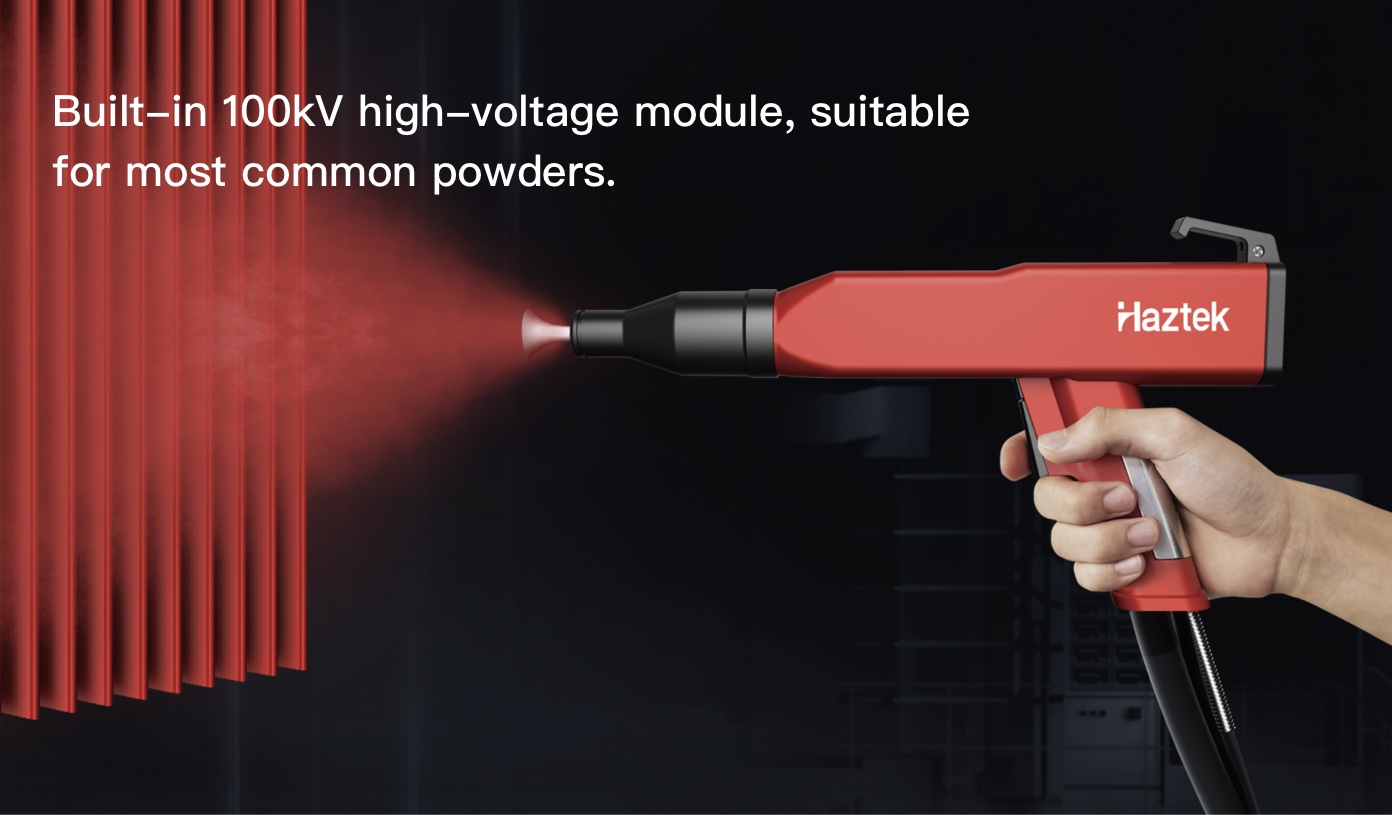

Built-in 100kV high-voltage module, suitable for most common powders. The built-in 100kV high-efficiency pressure doubler ensures a constant and stable output for  excellent powder coating results. It is suitable for most of the common powders, even for those  difficult to charge powder coatings, it can also realize efficient coating. In addition, its wearresistant design and preferred materials further reduce maintenance costs.

The MG10 manual spray gun features excellent ergonomic design, with a lightweight feel.  Despite its light weight, it still maintains exceptional durability. The fan-shaped nozzle design  delivers outstanding atomization effect and forms a uniform powder flow. Its unique elevation  angle and handle design ensure no fatigue even during long hours of operation. Double-clicking  the trigger allows for quick switching to the preset spraying program, greatly improving work  efficiency.

Can be used with a cart or an experimental or wallmounted carrier.

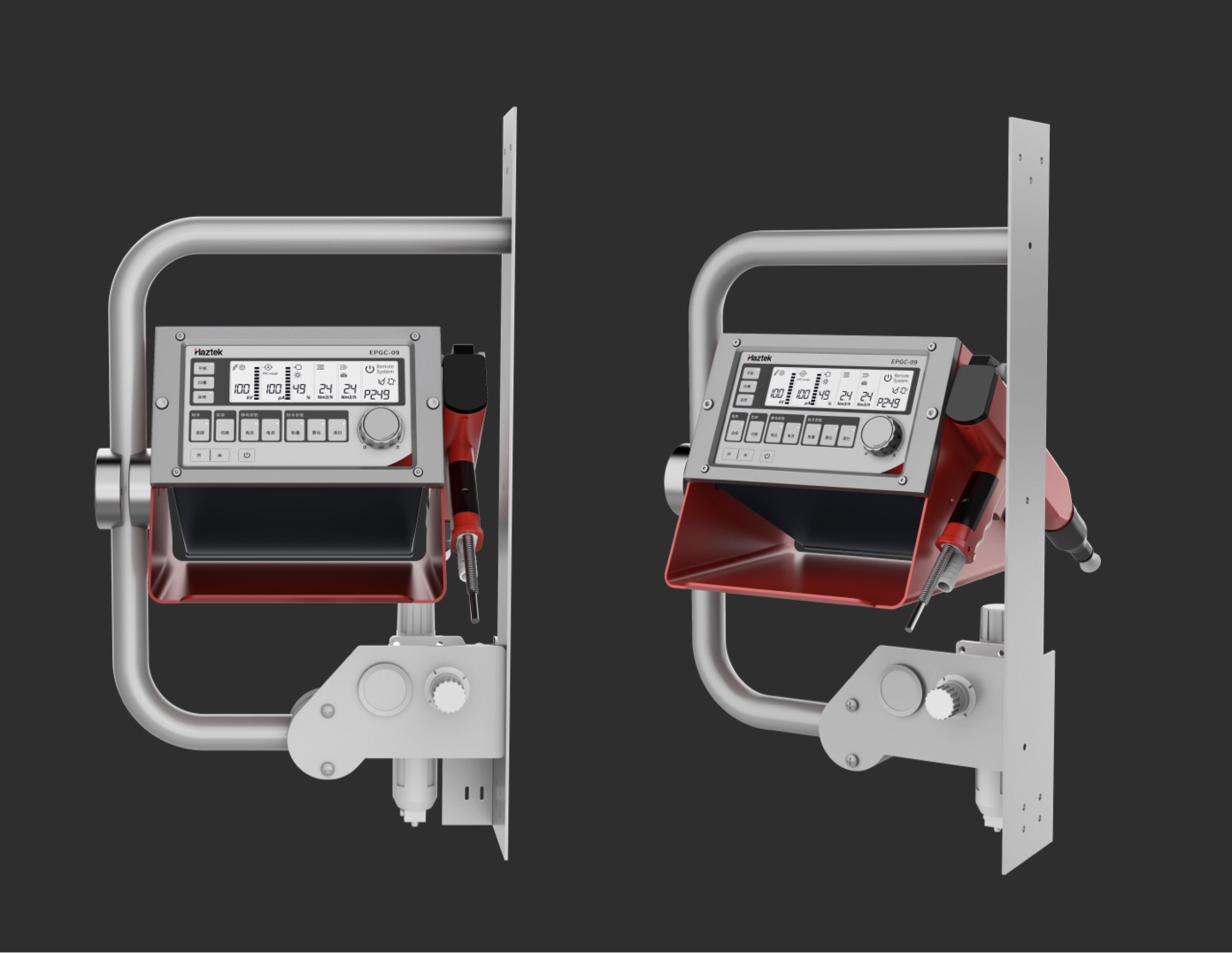

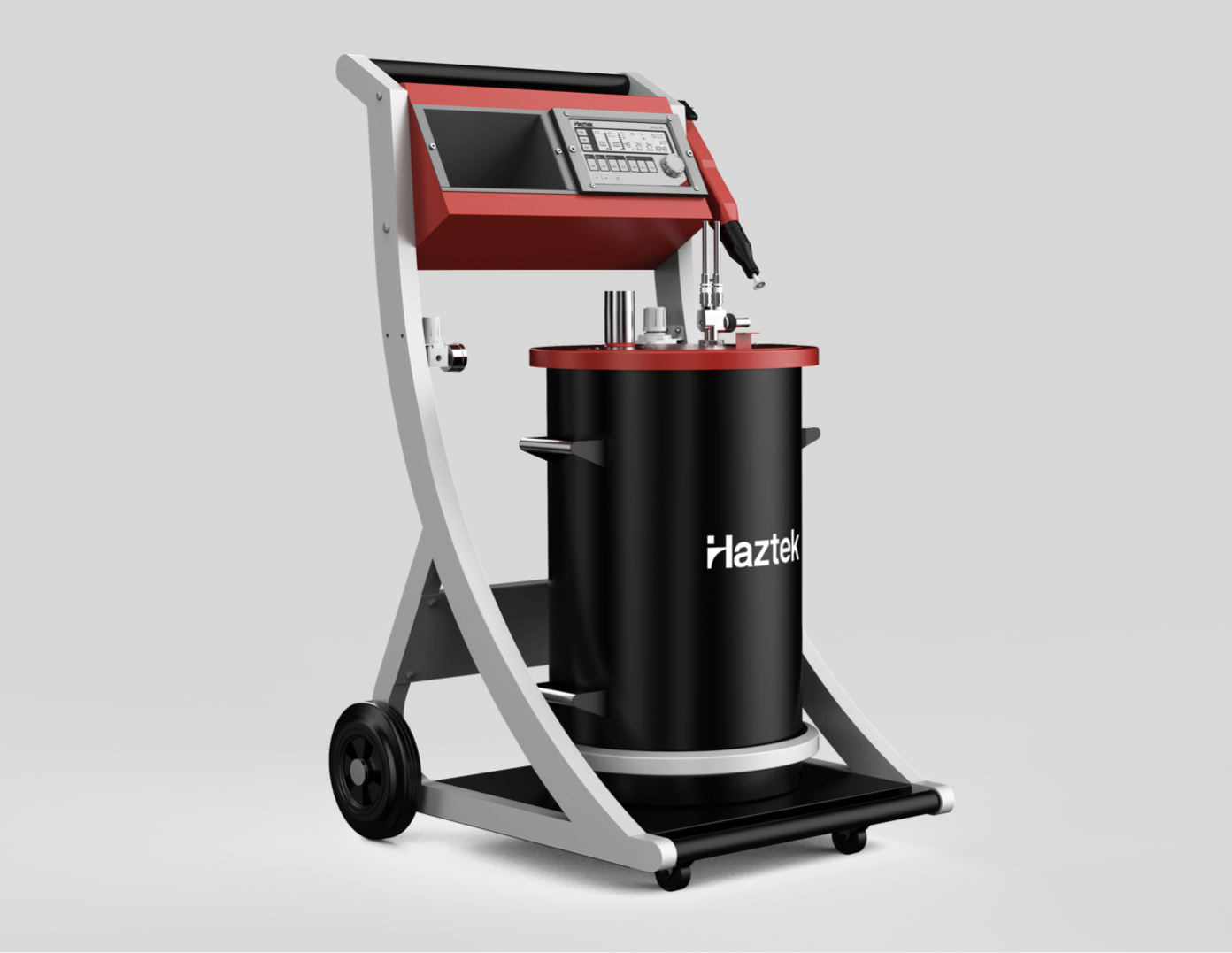

Manual spraying equipment shows unique advantages in different application scenarios with its  excellent flexibility and adaptability. The mobile cart stands out for its excellent mobility, and  with its 50-liter powder container, it makes coating large workpieces easy and convenient. The  experimental model, with its small powder container, adapts to changing laboratory  environments and the coating of small workpieces with its compactness and flexibility. The  wall-mounted models are designed with space utilization in mind, making them easy to install  and space-saving for workplaces with limited space. These diverse carrier options ensure that  Haztek manual spraying equipment can meet the needs of various scenarios, whether in  industrial production, laboratory testing or space-constrained environments, to provide efficient  and stable spraying solutions.

MG10 Manual powder spray gun equipment parameters

Standard input voltage：100-240VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h
