PINNACLE GC21-SE Wall-Mounted Manual Powder Coating Equipment

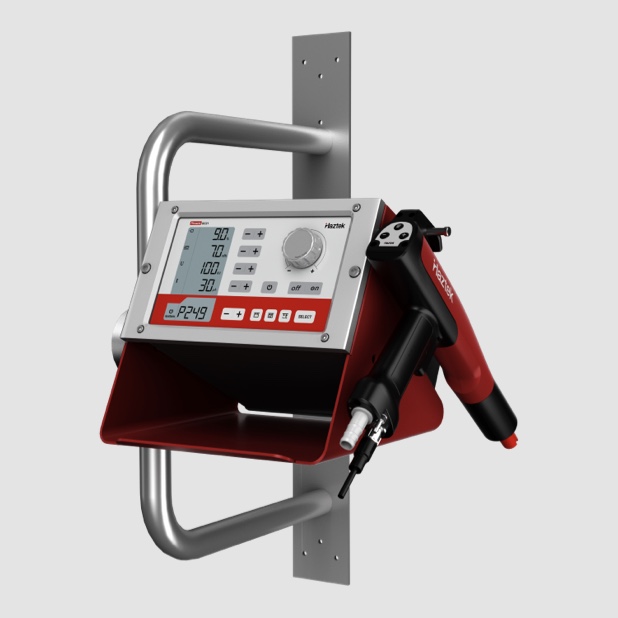

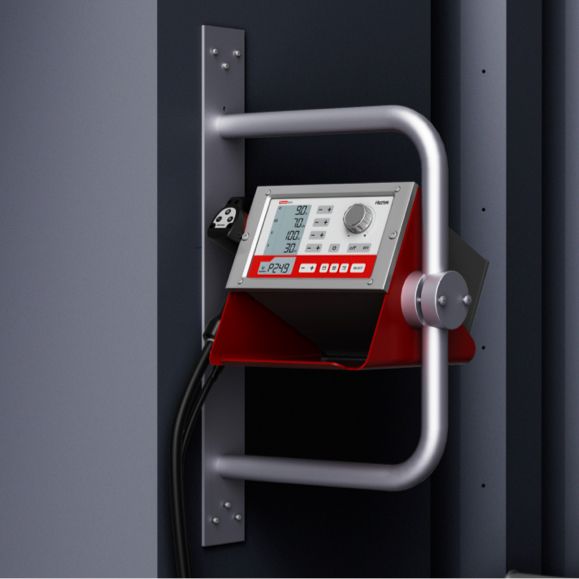

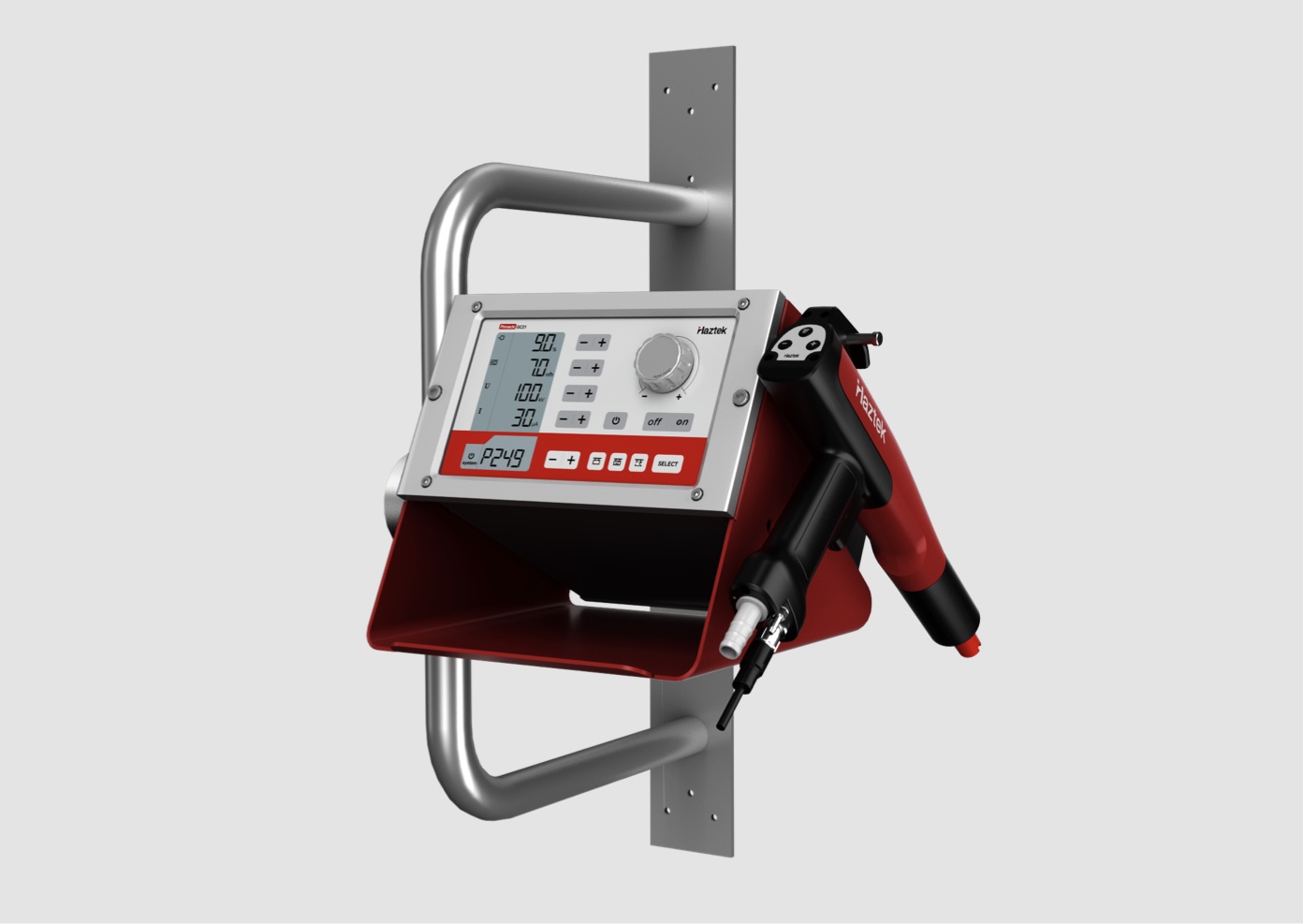

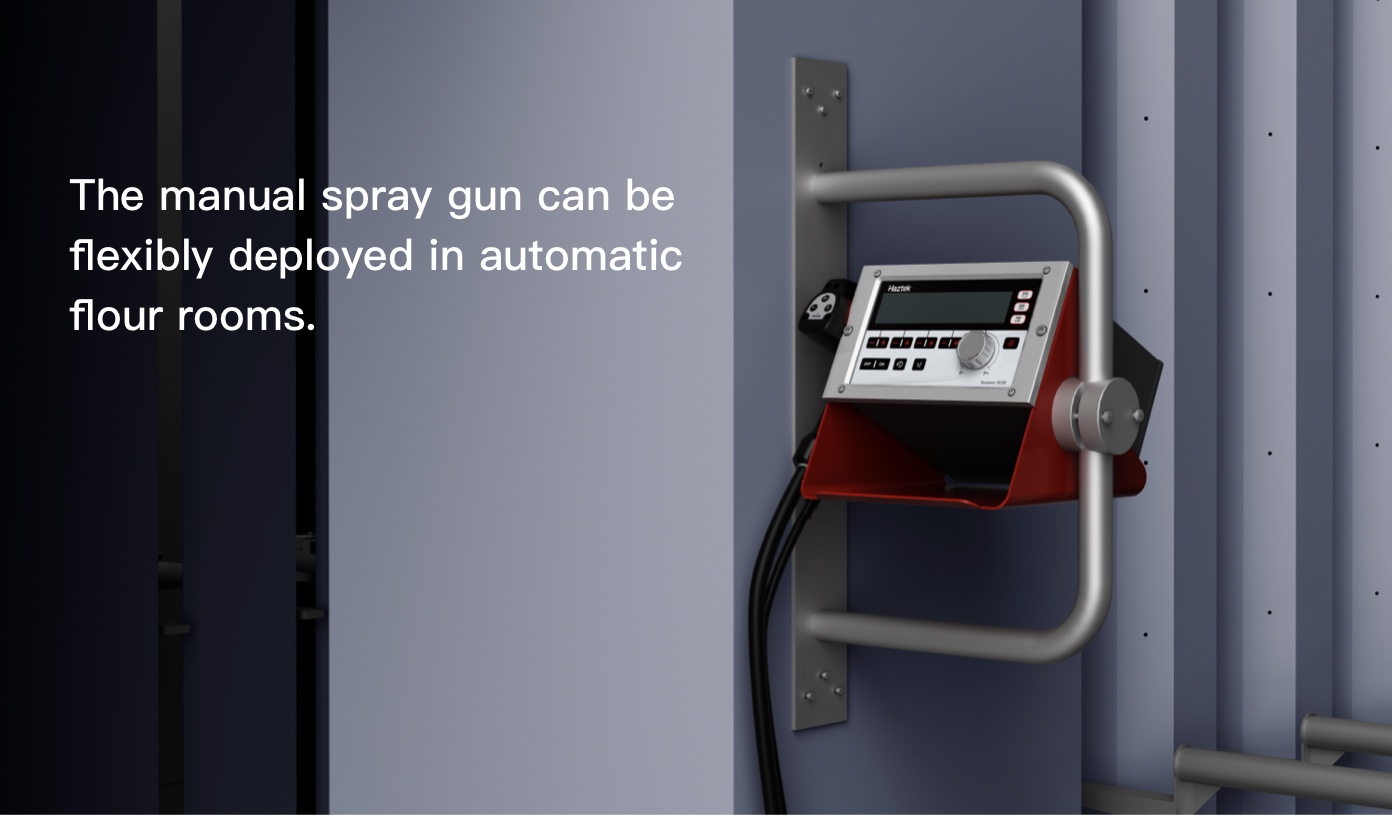

Equipped with a lightweight wall-mounted bracket that supports multi-angle installation and  vertical adjustment, it can be installed at the manual spraying station of an automatic powder  coating booth or flexibly deployed within the workshop. It can draw powder from either a  centralized powder supply system or an independent powder bucket, enabling flexible touch-up  spraying requirements.

DVC Digital Valve Technology / Precise Powder Flow  Control

This technology achieves stability and high consistency in the spraying process through the  precise regulation of powder output, atomizing air and delivery air.

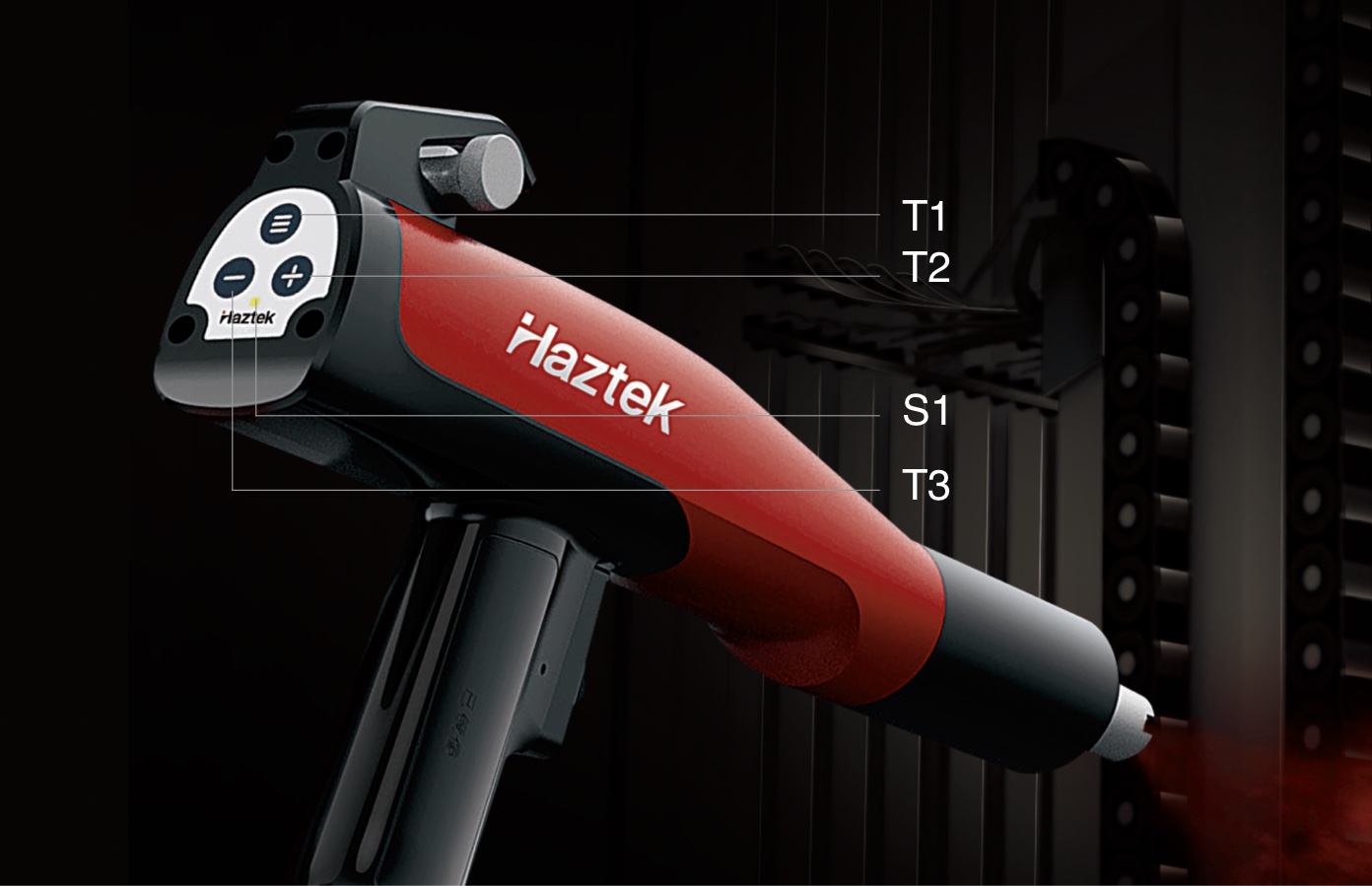

Key + multi-dimensional incremental knob Visual operation interface, instant adjustment of various  parameters

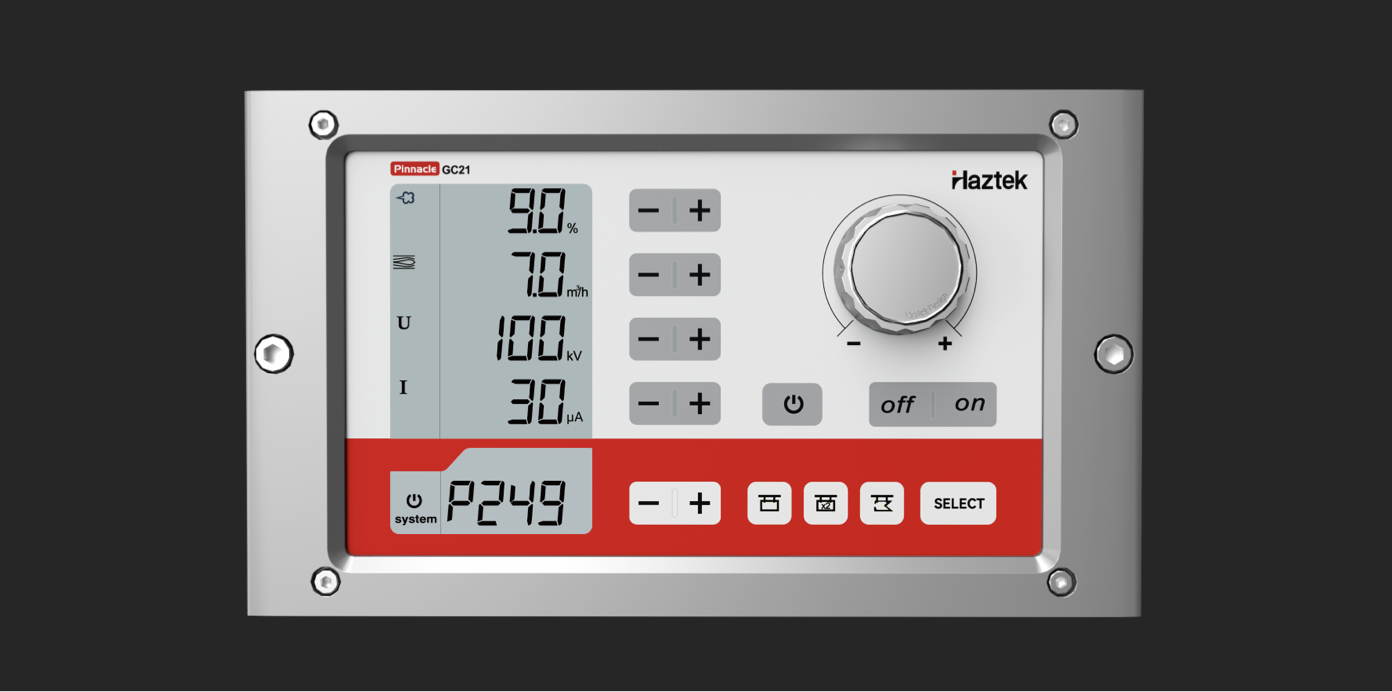

Press the button and adjust with the multi-dimensional incremental knob, paired with an LED  display, parameters are intuitive and clear. The multi-dimensional incremental knob allows for  quick adjustment of various parameters. The knob integrates voltage, flow, and current  adjustment functions, convenient and quick, with the minimum current adjustment at 1A and the  minimum voltage adjustment at 1kV.

Operators only need to simply select the corresponding mode on the control panel during  production, one-click call up expert-level spraying parameters, without the need for  cumbersome manual adjustment, ensuring stable and efficient spraying quality.

Three Preset Spray Modes (Flat Workpieces, Re-sprayed  Workpieces, Special-shaped Workpieces)

250 Programmable Spray Programs, Enabling Repeatable  Coating Effects

It can be programmed individually, store 250 custom programs, and these programs can be  recalled at any time, ensuring quick and convenient operation.

PINNACLE GC21-SE equipment parameters

Standard input voltage：100-250VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h

Other functions

Canbus fieldbus：Support

External control （workpiecerecognition system）：Support

Powder coating capability

Metal powder capability：yes

Other polyester powder capability：yes

Standard configuration

Powder hose length (m)：4

Powder hose specification Ø (mm)：11*17

Powder hose material type：POE with Conductive Strip

Maximum powder discharge rate：520g/min
