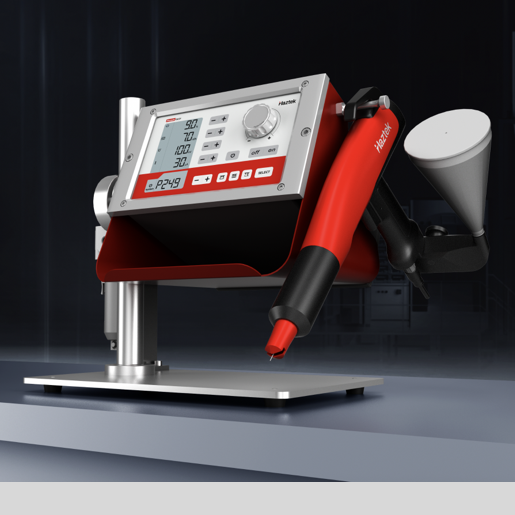

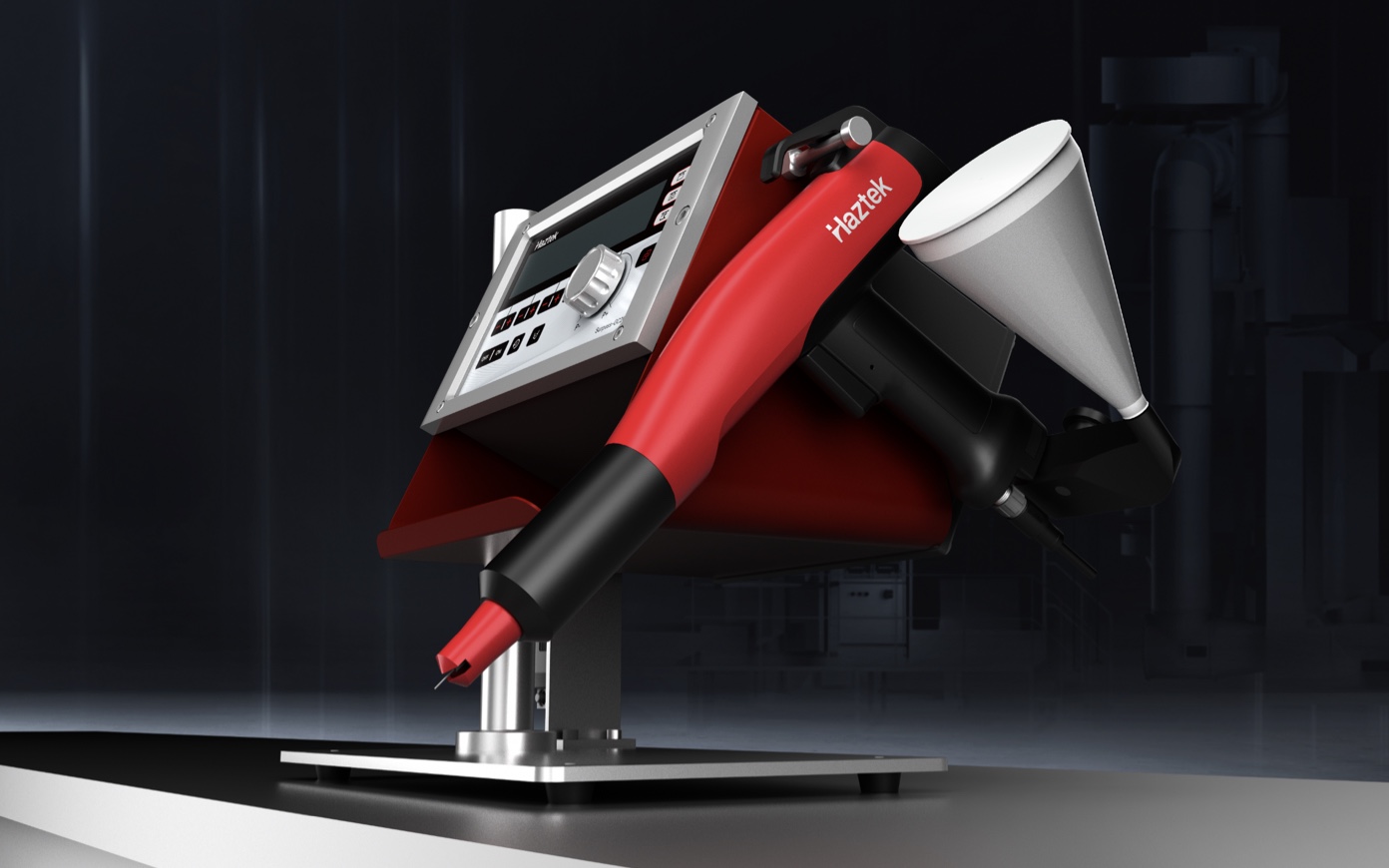

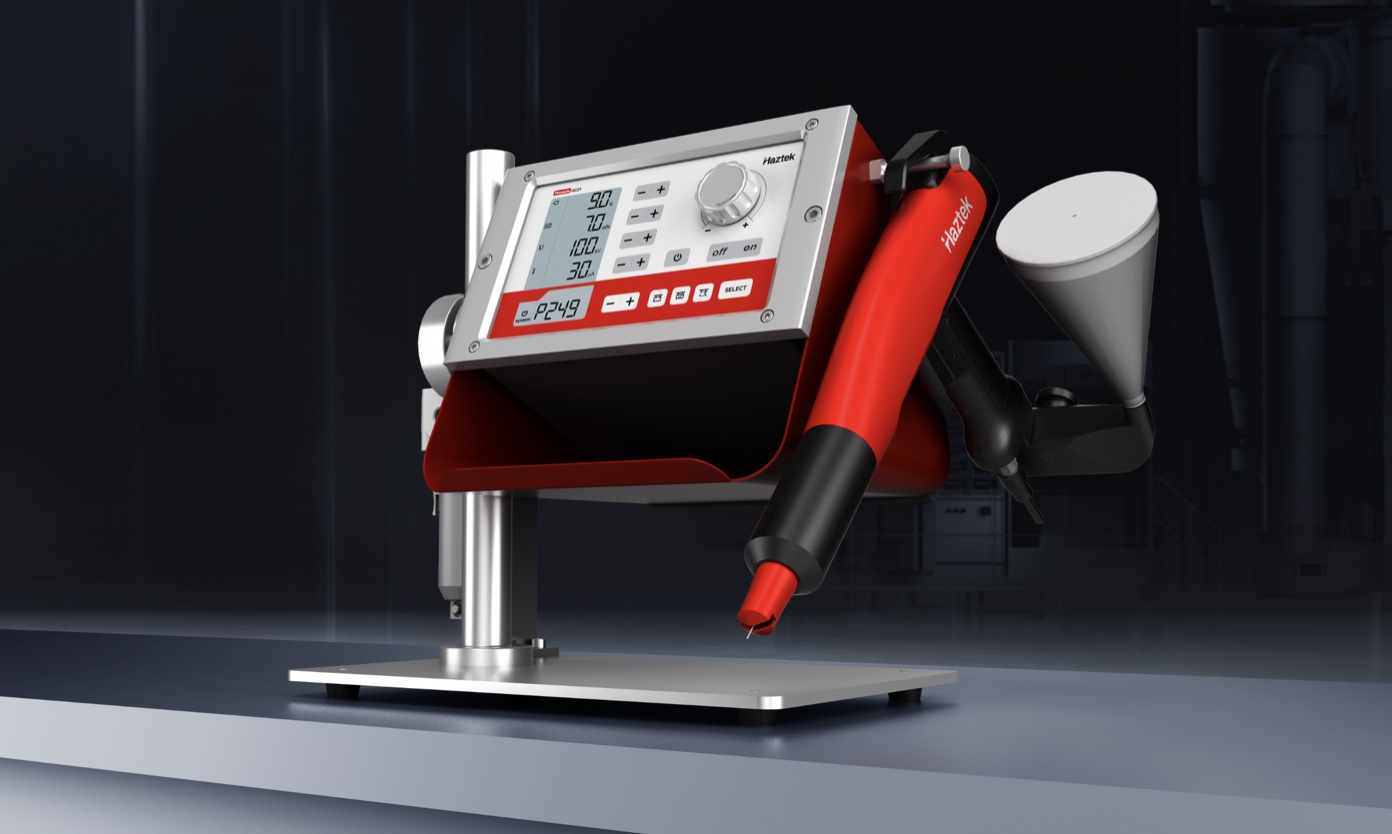

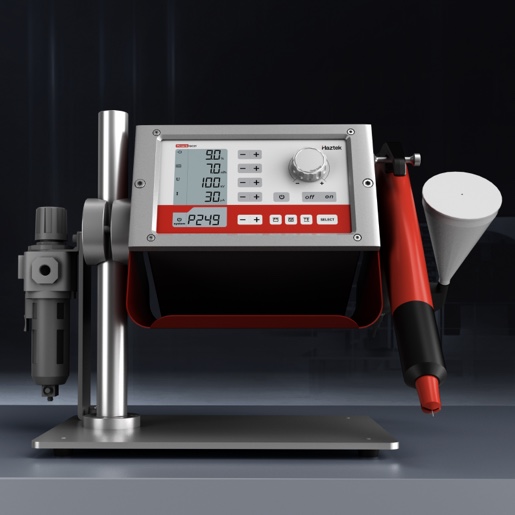

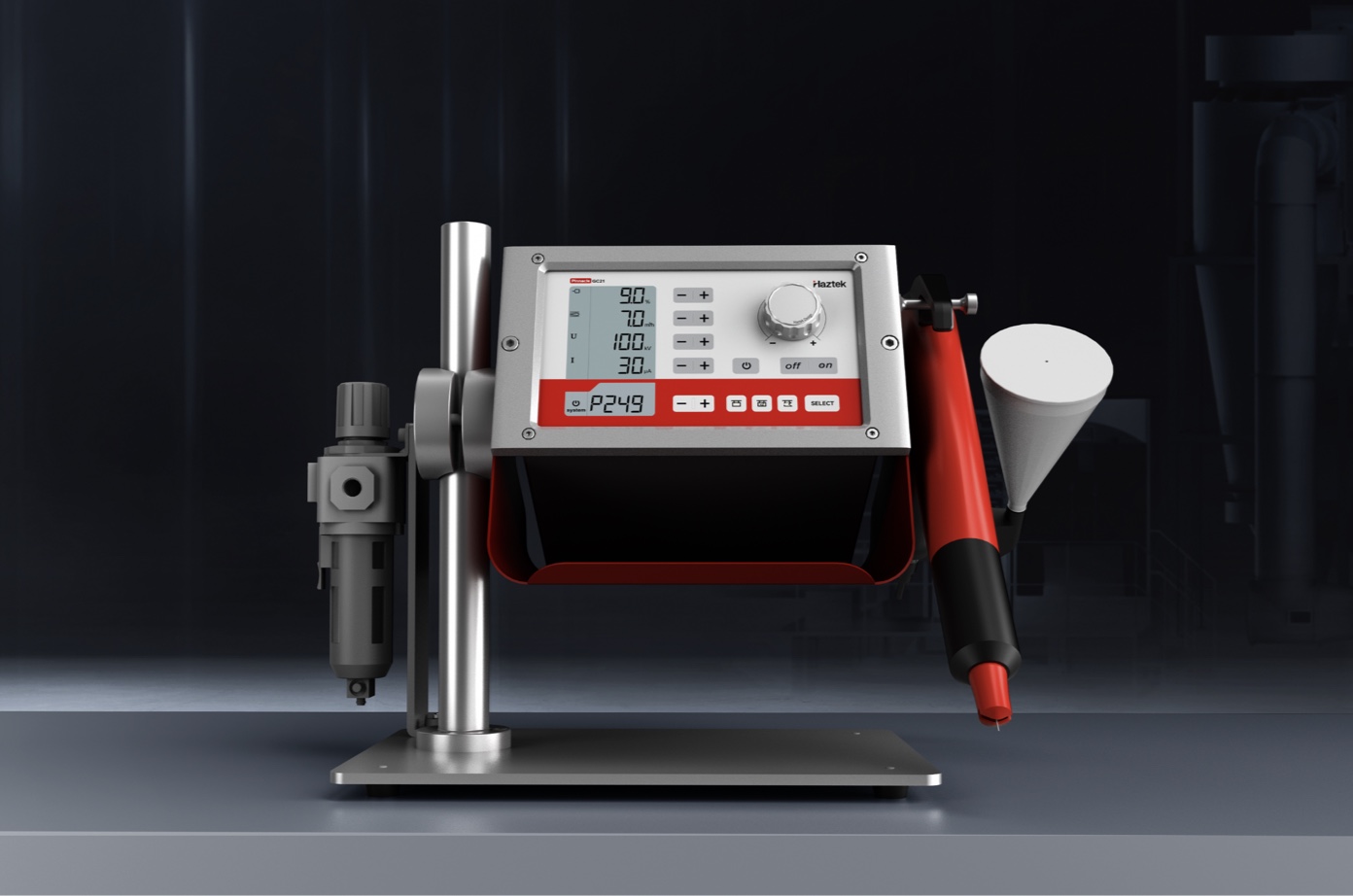

PINNACLE GC21-TD Desktop Type Lab Powder Coating Equipment

Adopts a base-mounted bracket combined with a funnel-shaped powder cup design, enabling  rapid color changes and cleaning. This significantly reduces the time cost of powder  replacement in experiments and improves the efficiency of multi-group comparative tests,  especially suitable for quick evaluation of formulations during the powder color matching stage. (Note: Wall-mounted bracket is available as an option.)

DVC Digital Valve Technology / Precise Powder Flow  Control

This technology achieves stability and high consistency in the spraying process through the  precise regulation of powder output, atomizing air and delivery air.

PCC Precision Charging

Dynamic charge regulation and intelligent matching achieve efficient charging and uniform  adsorption of powder particles, significantly improving coating quality and production efficiency.  For workpieces with complex geometries (such as automotive wheel hubs and home appliance  casings), its charge regulation system can dynamically enhance the electric field intensity in  hidden areas like deep cavities and grooves, ensuring the powder adsorption coverage rate is  further improved.

250 Programmable Spray Programs, Enabling Repeatable  Coating Effects

It can be programmed individually, store 250 custom programs, and these programs can be  recalled at any time, ensuring quick and convenient operation.

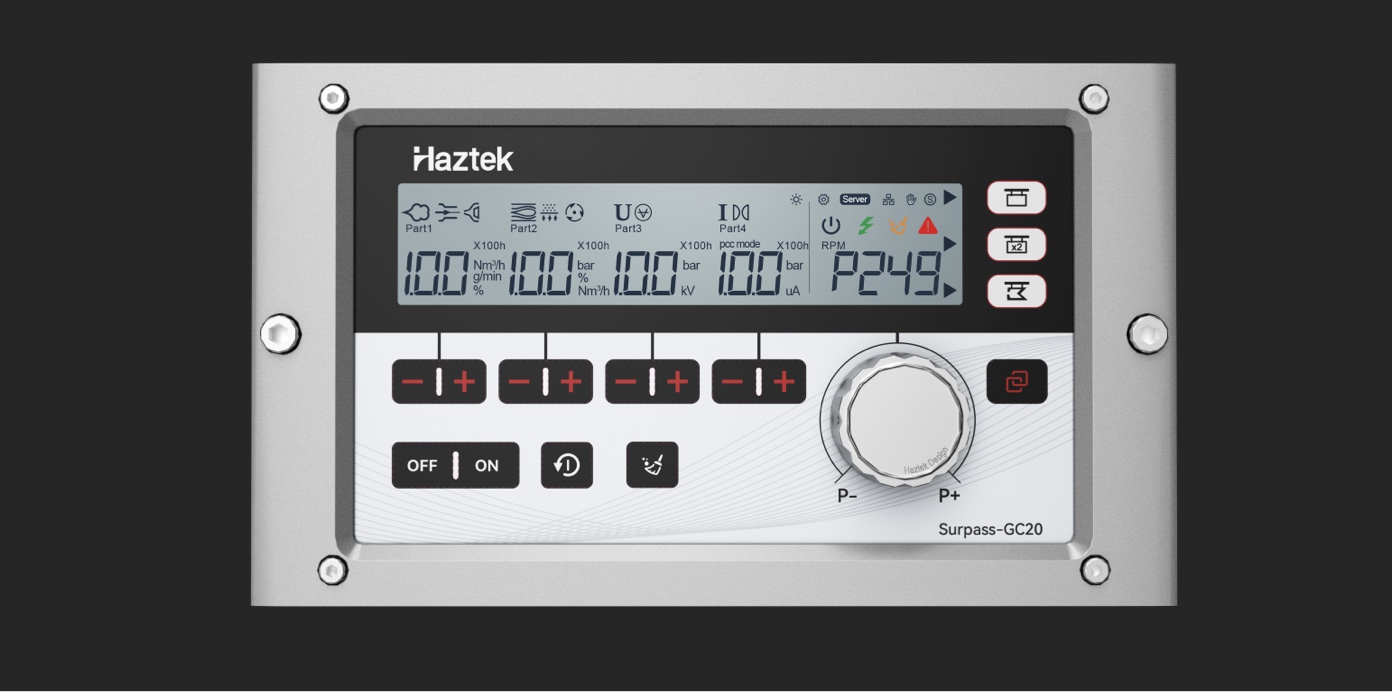

Quick parameter adjustment

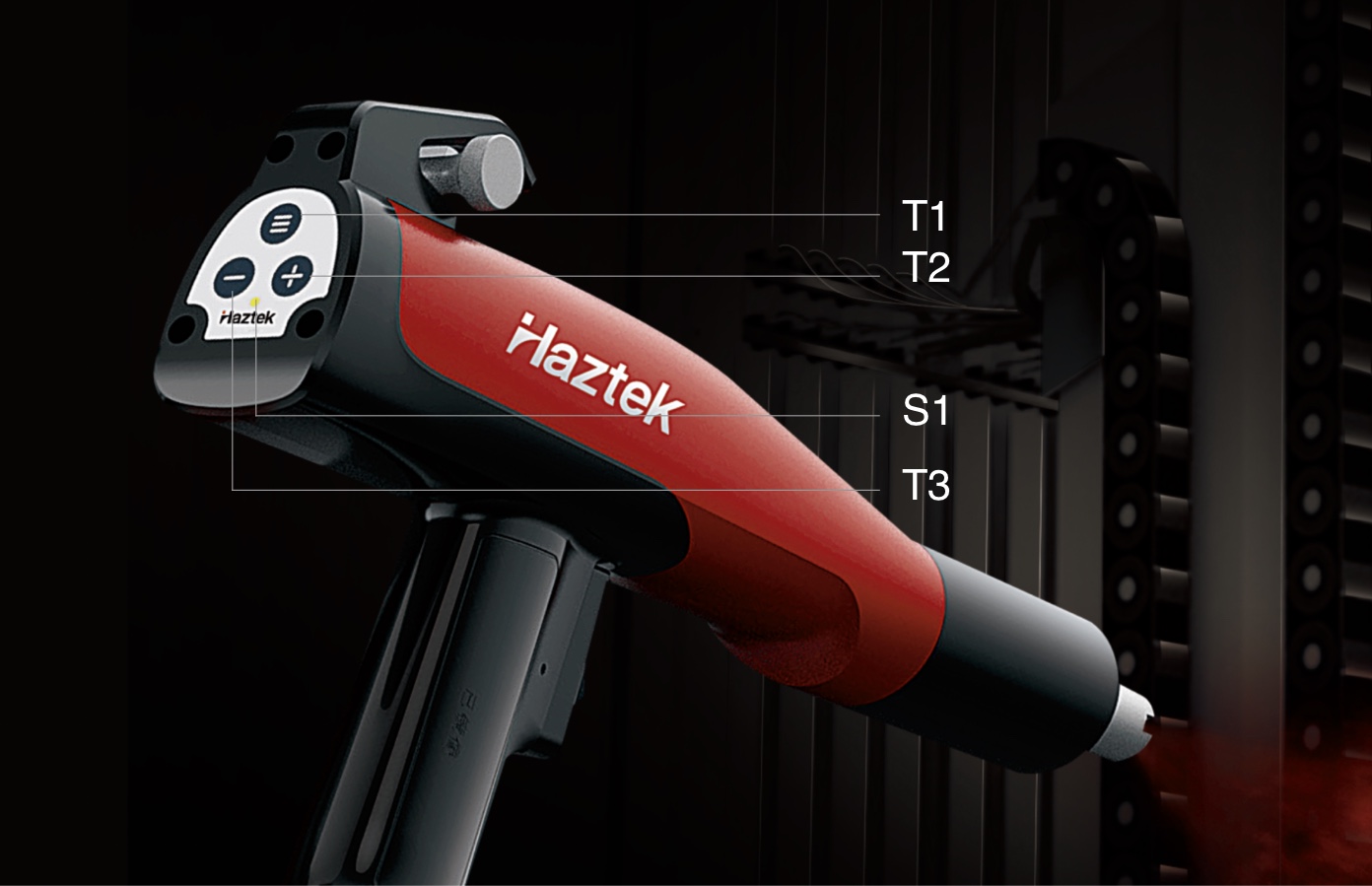

S1 —— Spray Gun Operation Indicator

T1 —— Parameter Increase Button

T2 —— Parameter Decrease Button

T3 —— Parameter Change Button

PINNACLE GC21-TD equipment parameters

SStandard input voltage：100-250VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h

Other functions

Canbus fieldbus：Support

External control （workpiecerecognition system）：Support

Powder coating capability

Metal powder capability：yes

Other polyester powder capability：yes

Standard configuration

Powder hose length (m)：4

Powder hose specification Ø (mm)：11*17

Powder hose material type：POE with Conductive Strip
