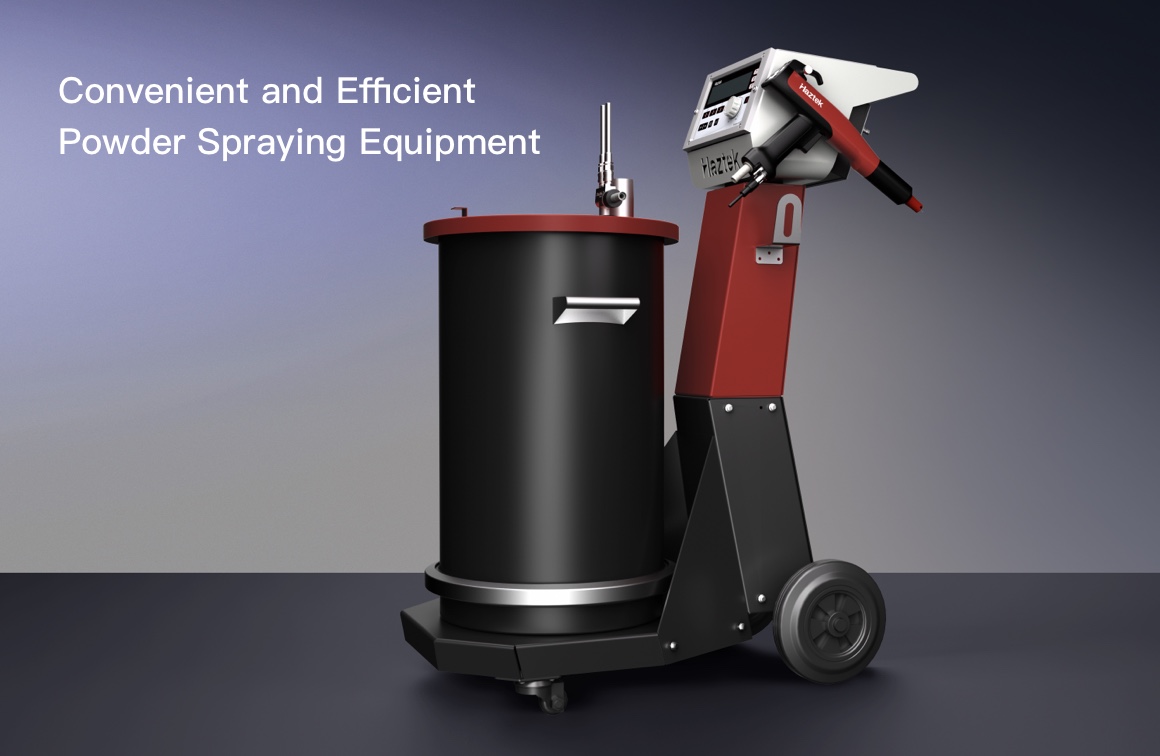

SURPASS GC20-F Manual Powder Coating Equipment

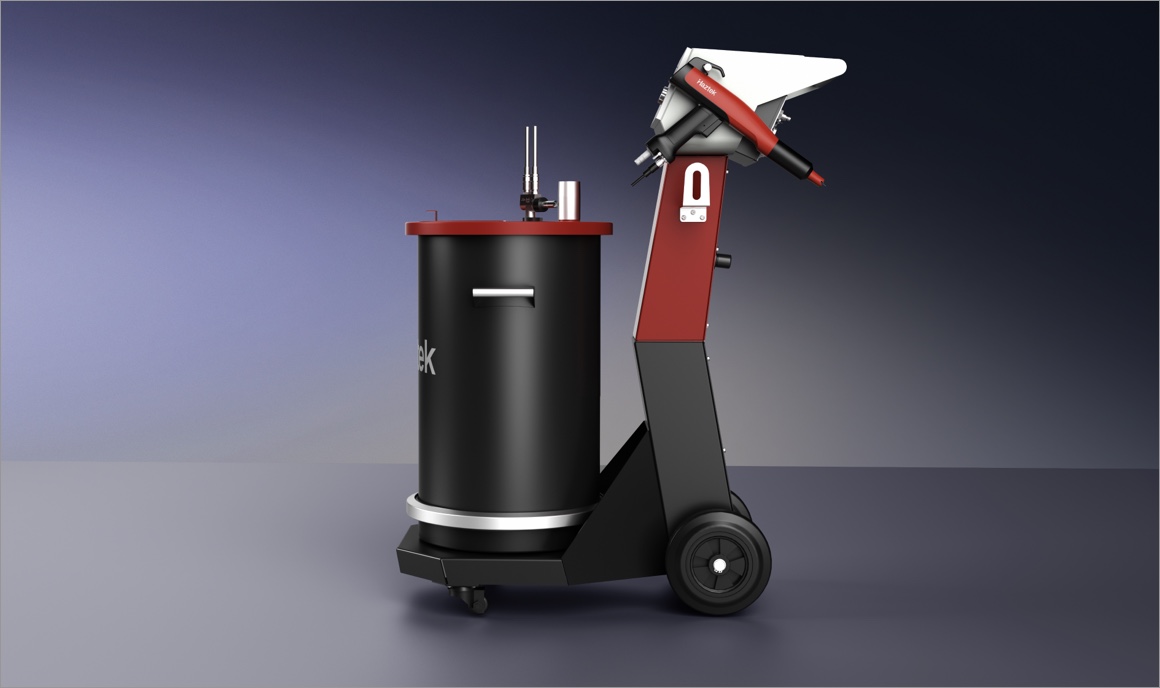

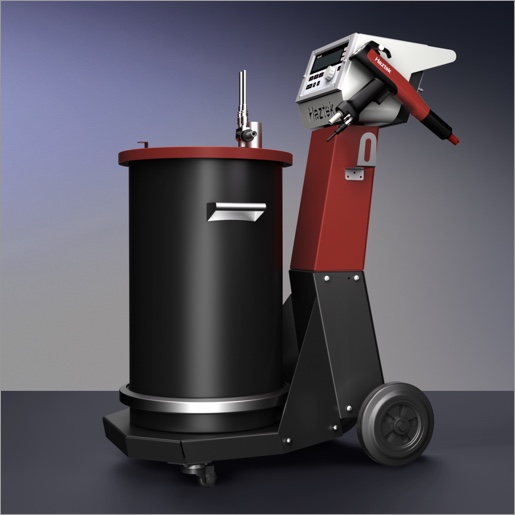

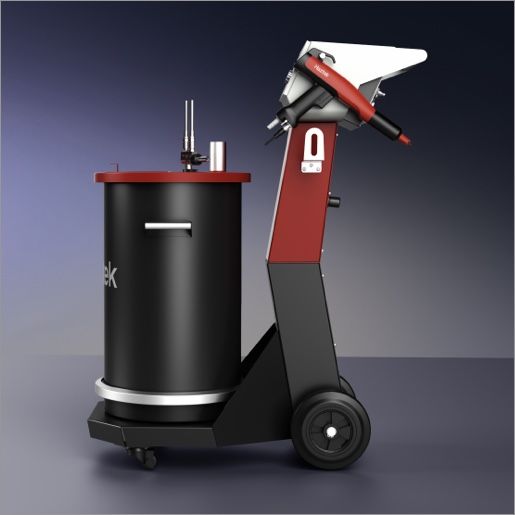

Adopting a modular trolley bracket, it integrates the spray gun, powder pump, controller, and air  supply components, supporting quick movement to different workstations. The trolley is  equipped with universal wheels and a rotatable handle, enabling flexible mobile operation in the  workshop. It is especially suitable for on-site spraying of large workpieces (such as automobile  frames, wheel hubs, engineering machinery components, and special-shaped plates).

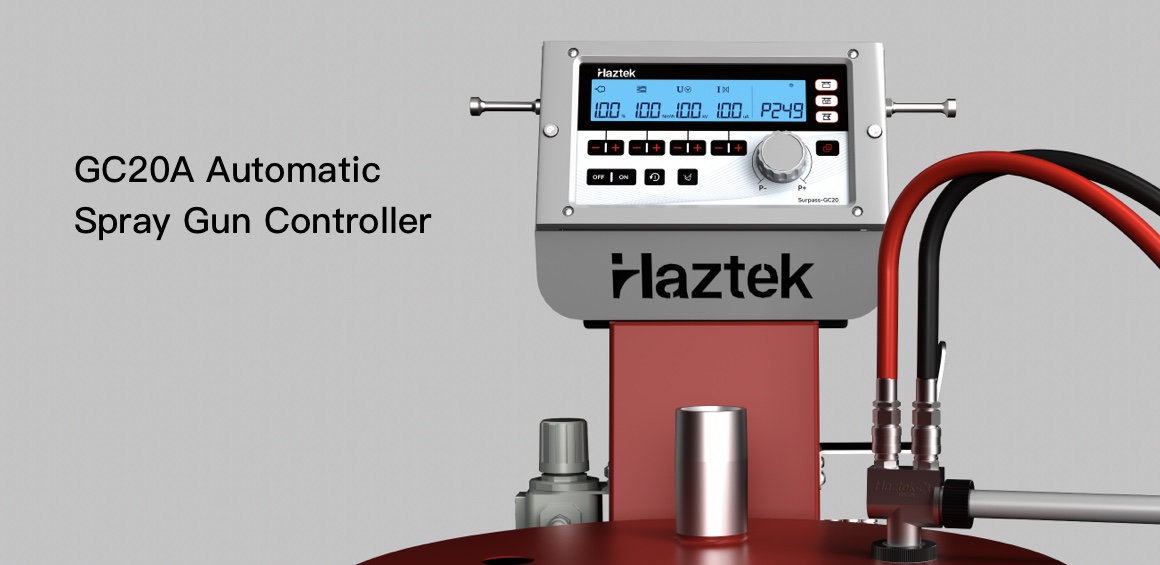

High-Efficiency Spray Gun Control Unit

Equipped with digital valves and PCC precise current control technology, it ensures stable flow  and pressure during the spraying process, while providing precise current adjustment below  10µA, ensuring that the powder does not overcharge and improving the stability and quality of  the spraying effect. The GC20A controller supports up to 20 programmable spraying programs,  with each set of parameters automatically saved for convenient next-time calling. In addition,  the GC20A is equipped with a rotatable CANOpen communication module and provides Eds  files, bringing endless possibilities for secondary development and equipment interconnection. It  has built-in self-diagnosis and one-click cleaning functions, which can automatically detect the  operating status and promptly identify and prompt problems. One-click cleaning simplifies the  cleaning and maintenance of the spray gun, improving color change efficiency.

Three Preset Spray Modes (Flat Workpieces, Re-sprayed Workpieces, Special-shaped Workpieces)

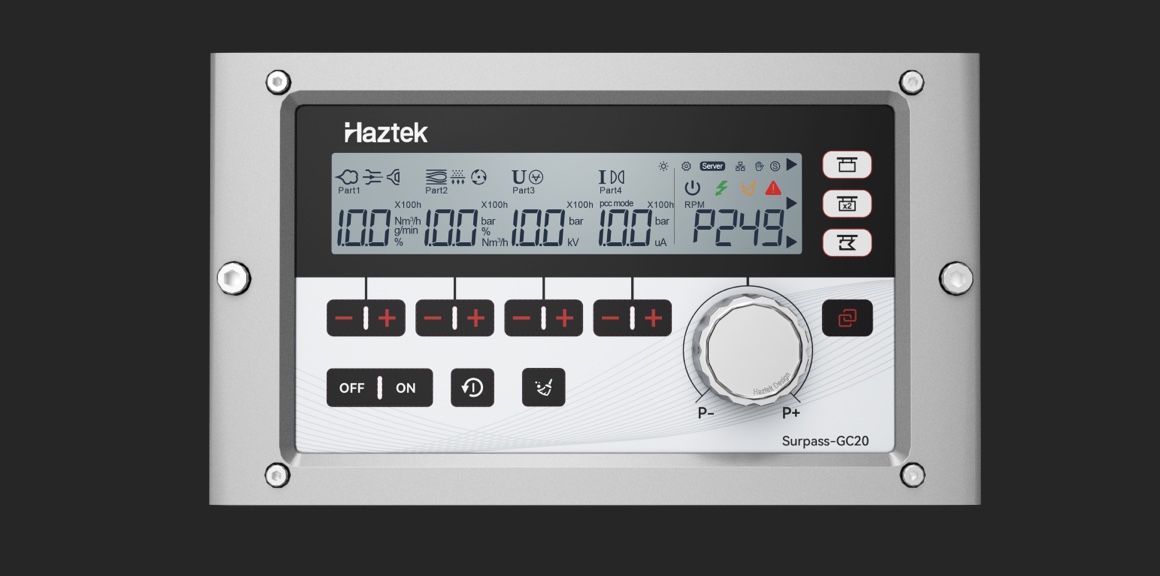

Buttons + Touch Screen + Stepless Knob for Precise Regulation, Ensuring Fast and Efficient Operation

Hardware Configuration:

LED screen with delicate and clear display

Power Supply: Taiwan Mean Well Power Supply, featuring 0V and 24V dual-channel output

Main Chip: Italian STM 32-bit MCU (Microcontroller Unit)

Power Management: American TI Power Management IC, equipped with digital signal processing

(DSP) and analog technology

Solenoid Valve: Japanese SMC Solenoid Valve

Built-in 100kV high-voltage module, suitable for most  common powders.

The built-in 100kV high-efficiency pressure doubler ensures a constant and stable output for  excellent powder coating results. It is suitable for most of the common powders, even for those  difficult to charge powder coatings, it can also realize efficient coating. In addition, its wear-resistant design and preferred materials further reduce maintenance costs.

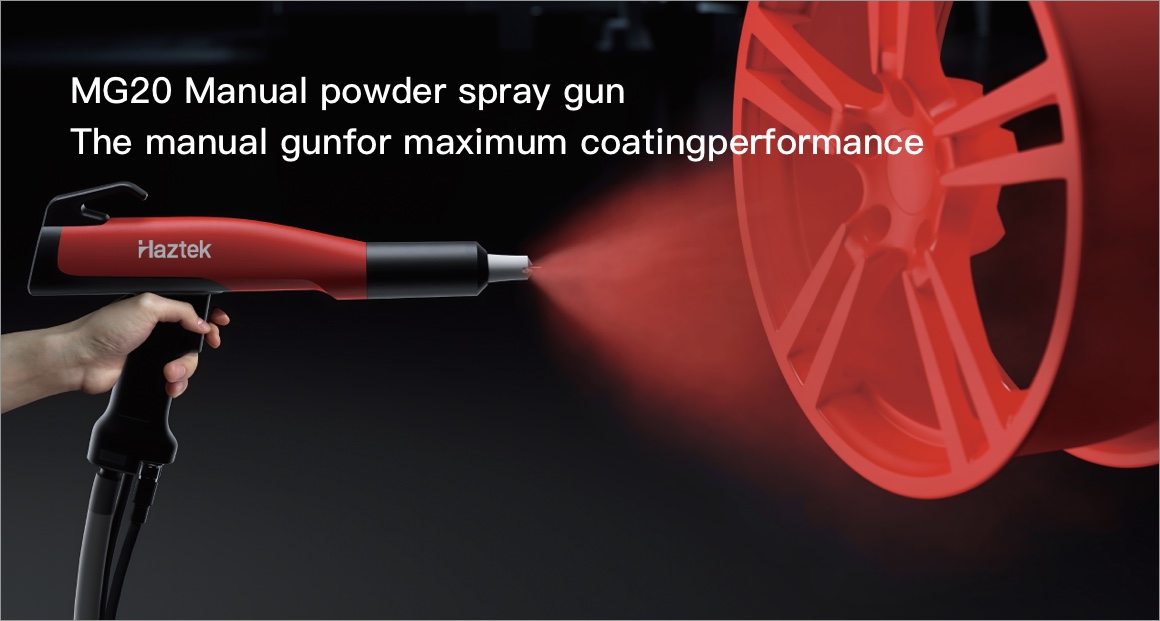

The MG20 has an excellent ergonomic design and weighs only 510 grams, making it lightweight  while still retaining superior durability. Its unique elevation angle and handle design allow for  long hours of operation without fatigue. An external remote touch control module makes  adjusting spraying parameters a breeze. A double-click on the trigger quickly switches to a  preset spraying program, greatly improving work efficiency.

PPH40 Automatic Sprayer

Suitable for quick color change and quick cleaning

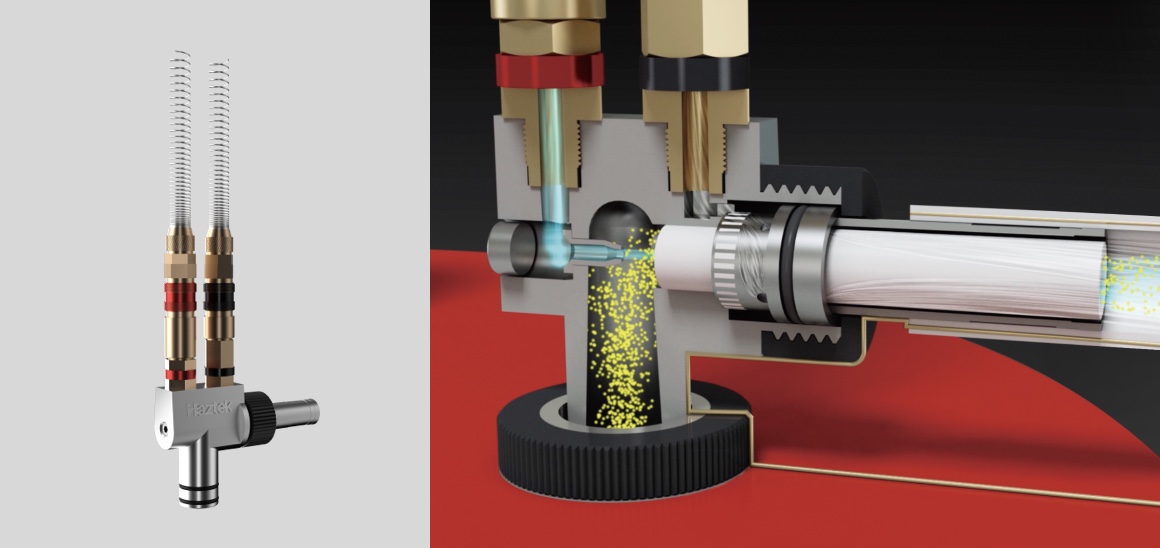

The product meets the "plug and play" functionality, suitable for quick color changes and quick  cleaning. The quick insertion design of the powder tube facilitates the separation and  connection for cleaning. The Venturi tube is made of high-quality non-stick material and is  equipped with a quick connector for connecting compressed air. The powder supply is stable  and even, with excellent atomization effect, which helps to form high-quality coatings. The  maximum powder output rate can be up to 520g/min (depending on specific configuration and  powder type).

Surpass -F equipment parameters

Standard input voltage：100-240VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h

Other functions

Canbus fieldbus：Support

External control （workpiecerecognition system）：Support

Powder coating capability

Metal powder capability：yes

Other polyester powder capability：yes

Standard configuration

Powder hose length (m)：16/20(Standard Powder Hose Options for Automatic Spray Guns)

Powder hose specification Ø (mm)：12*18/11*17

Powder hose material type：POE with Conductive Strip

Maximum powder discharge rate：520g/min
