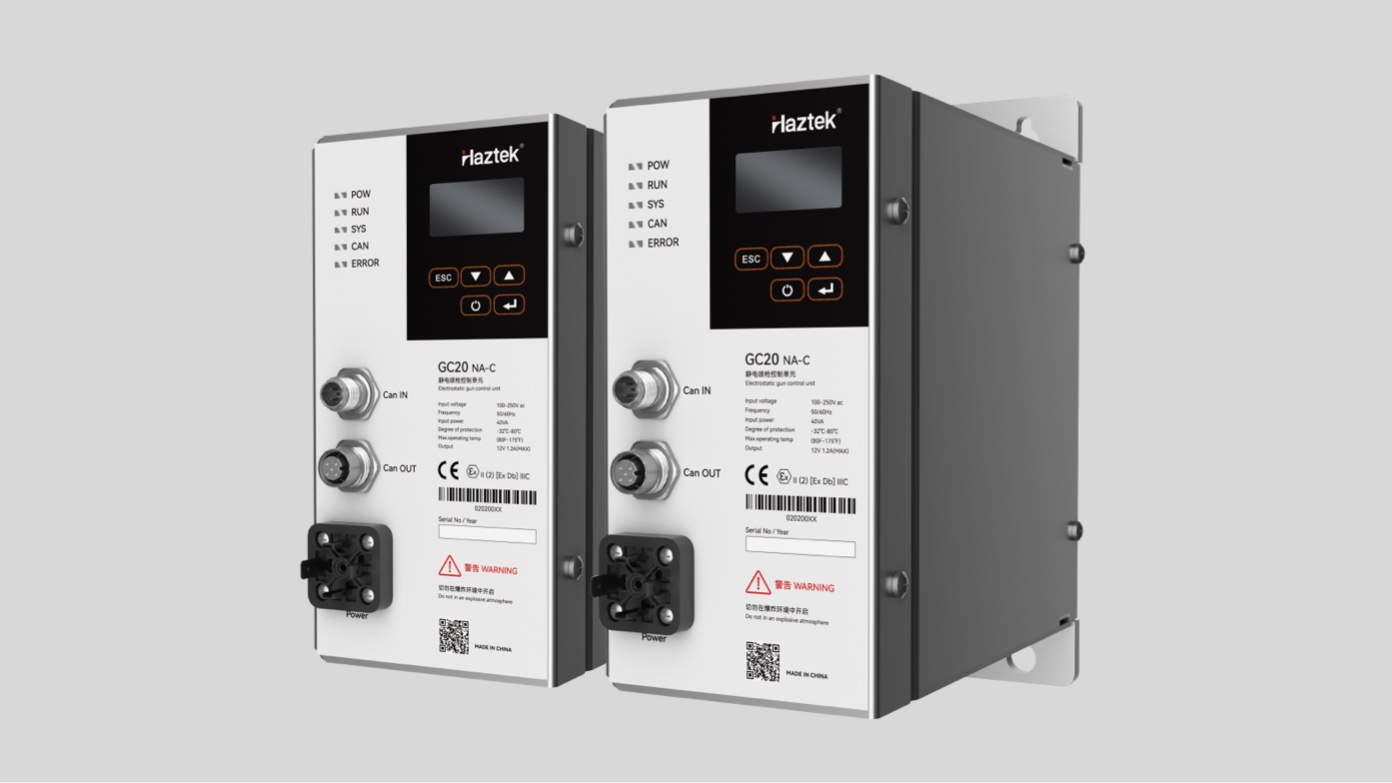

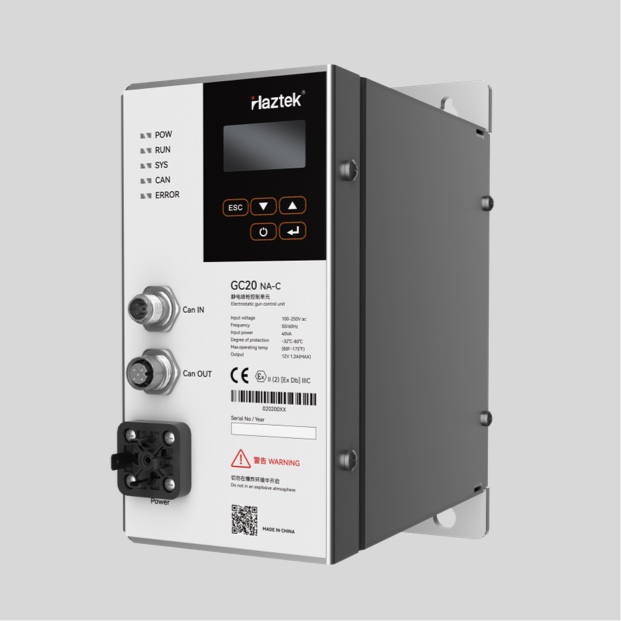

SURPASS- GC20NAC Electrostatic Powder Spray Gun Controller

Compact, Modular Design

The design philosophy of GC20NA-C combines simplicity and efficiency, endowing it with powerful functions while occupying a small footprint.

Openness and Integration

It adopts the standard CANopen protocol and opens EDS files to all users, providing users with greater space for secondary development and possibilities for device interconnection and mutual control.

Excellent Heat Dissipation Performance

The all-aluminum body is not only durable and robust, but more importantly, it offers excellent heat dissipation performance, ensuring the equipment remains stable even during long-term operation.

Lower Failure Rate

The stability of the equipment is directly related to production efficiency. GC20NA-C has undergone strict quality control during both design and production, ensuring its failure rate is far below industry standards.

Safety

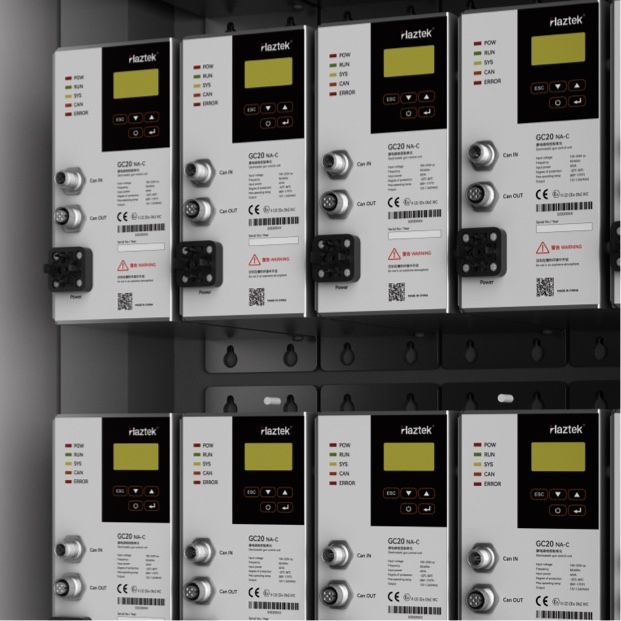

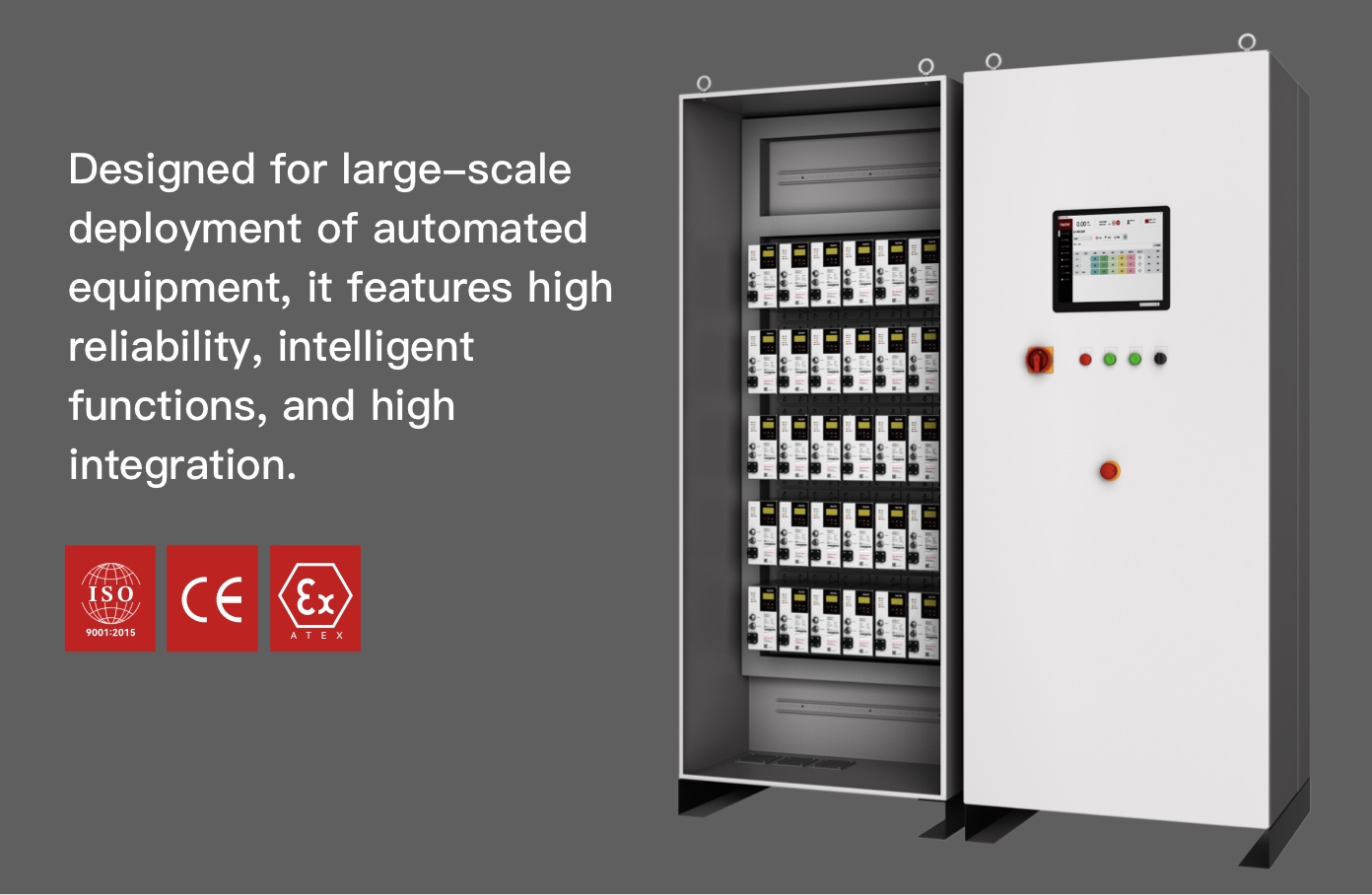

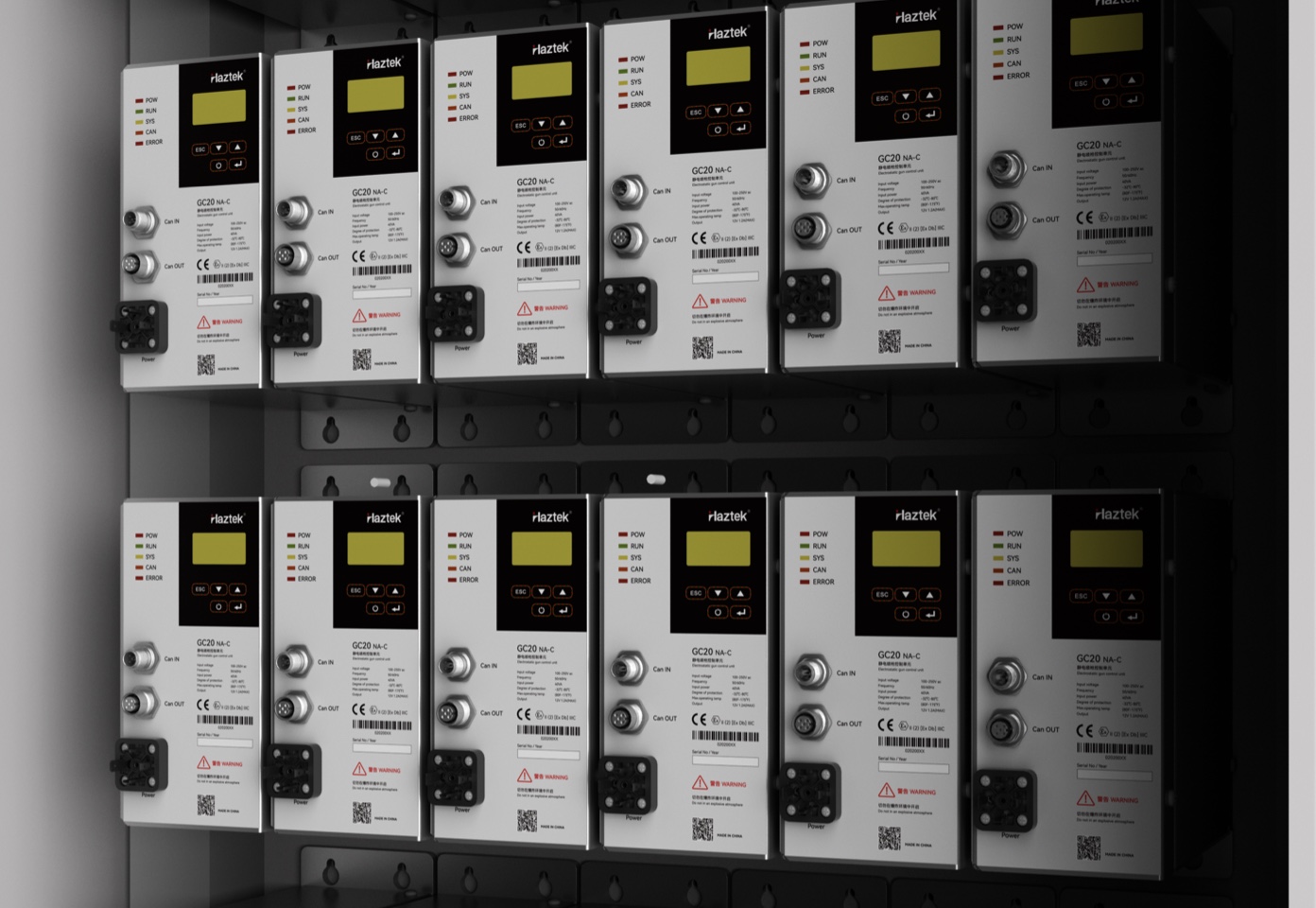

The GC20NA-C controller features a unique shape design, ensuring perfect compatibility with explosion-proof electrical cabinets. It provides stable and safe powder supply and meets voltage control requirements in any environment.

DVC Digital Valve Technology / Precise Powder Flow Control

This technology achieves stability and high consistency in the spraying process through the precise regulation of powder output, atomizing air and delivery air.

PCC Precision Charging

Dynamic charge regulation and intelligent matching achieve efficient charging and uniform adsorption of powder particles, significantly improving coating quality and production efficiency.

For workpieces with complex geometries (such as automotive wheel hubs and home appliance casings), its charge regulation system can dynamically enhance the electric field intensity in hidden areas like deep cavities and grooves, ensuring the powder adsorption coverage rate is further improved.

250 Programmable Spray Programs, Enabling Repeatable Coating Effects

It can be programmed individually, store 250 custom programs, and these programs can be recalled at any time, ensuring quick and convenient operation.

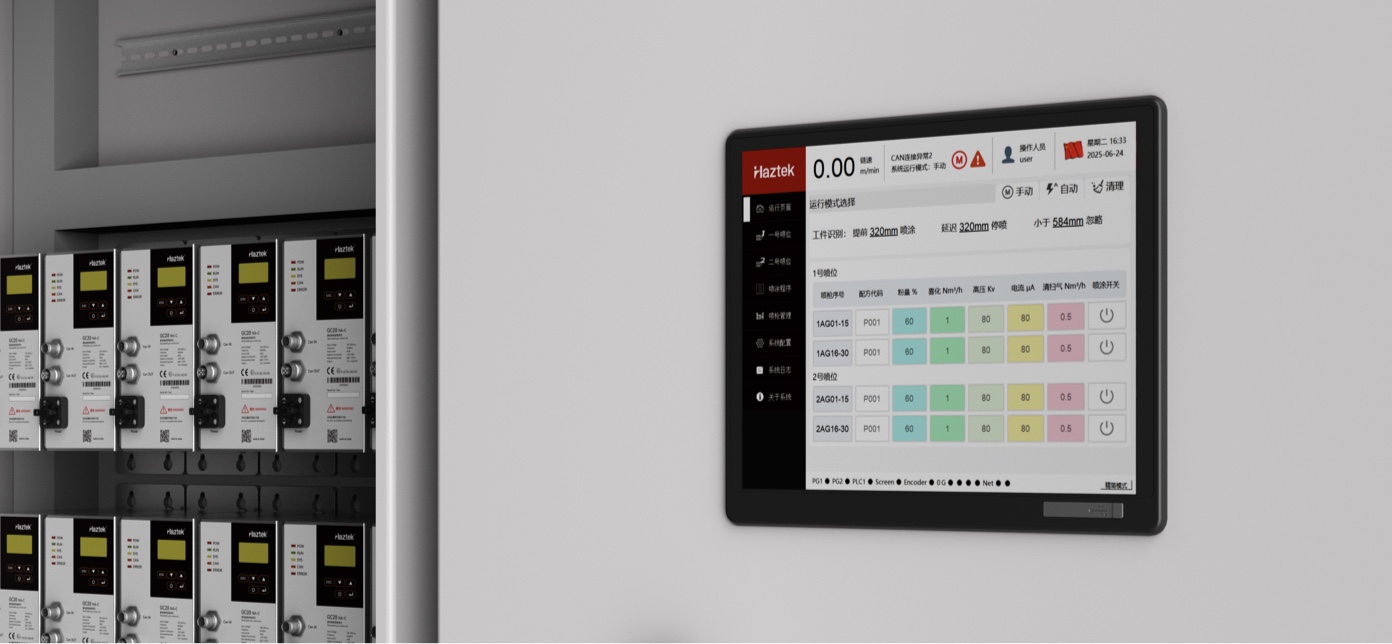

More efficient and convenient Coatpilot spraying system

Simpler handling of complex processes

The global modular management allows for quick deployment of process parameters among numerous types of wrokpieces,resulting in higher in higher efficiency and easier replication of quality.

Efficient and continuous coating

Activate the system's potential by incorporating automatic functions such as gap, height, and depth control. For the automation needs of highly complex workpieces, dynamic 3D coating solutions are available without programming.

Future-oriented control system

The Coatpilot system is open and can be integrated into your production environment through APls with ERP, MES , and other third-party systems. This allows for the formation of a powerful antomated prodcution systm wirh other equipment and systems.

Surpass -GC20NA equipment parameters

Standard input voltage：100-240VAC

Frequency：50-60 Hz

Standard output voltage (to spray gun)：12 V

Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

Spray gun output current：100μA

Polarity：cathode

Protection level：IP54

Temperature range：-40°C-85°C

Compressed air

Input pressure：5.5-6bar

Maximum air consumption：8.5Nm³/h

Other functions

Canbus fieldbus：Support

External control （workpiecerecognition system）：Support

Powder coating capability

Metal powder capability：yes

Other polyester powder capability：yes

Standard configuration

Powder hose length (m)：16/20(Standard Powder Hose Options for Automatic Spray Guns)

Powder hose specification Ø (mm)：12*18/11*17

Powder hose material type：POE with Conductive Strip

Maximum powder discharge rate：520g/min
