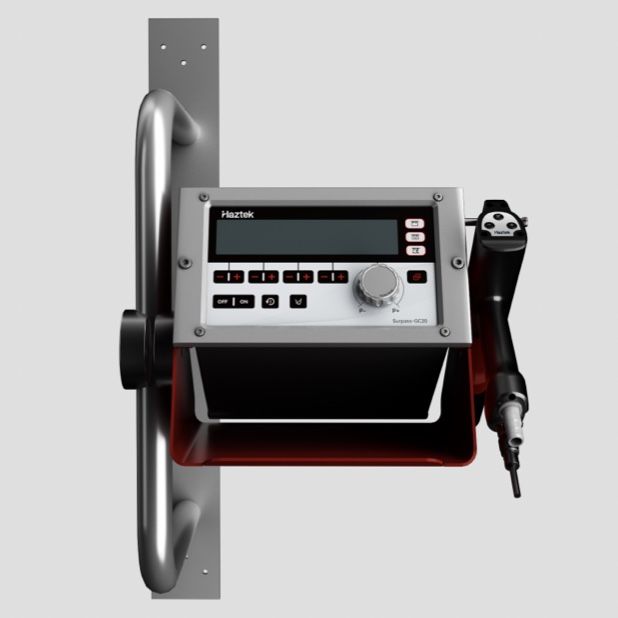

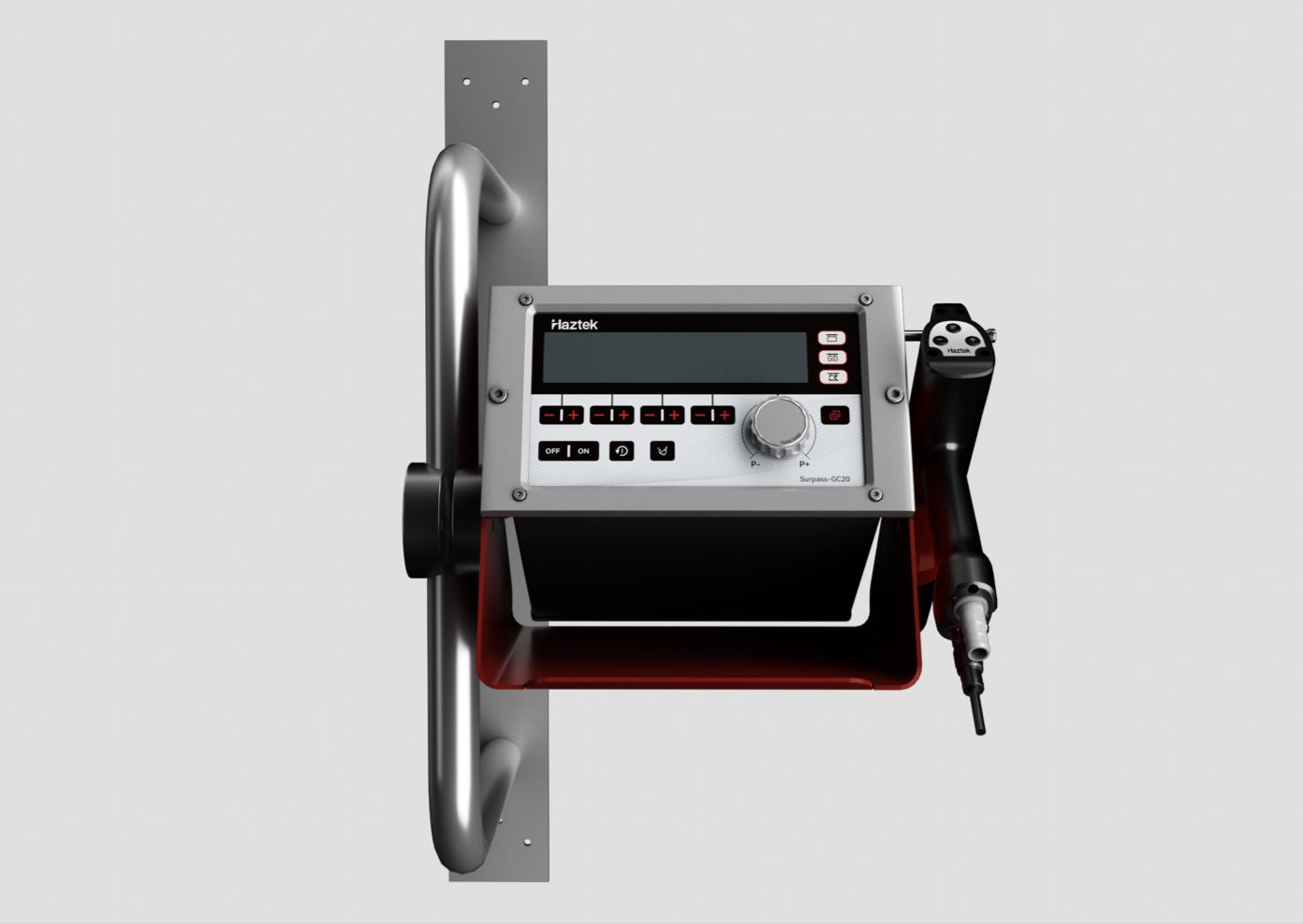

Susprss GC21-SE Wall-Mounted Manual Powder Coating Equipment

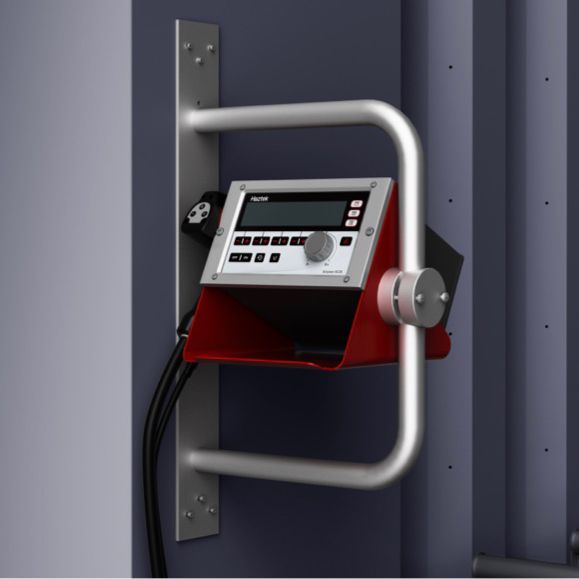

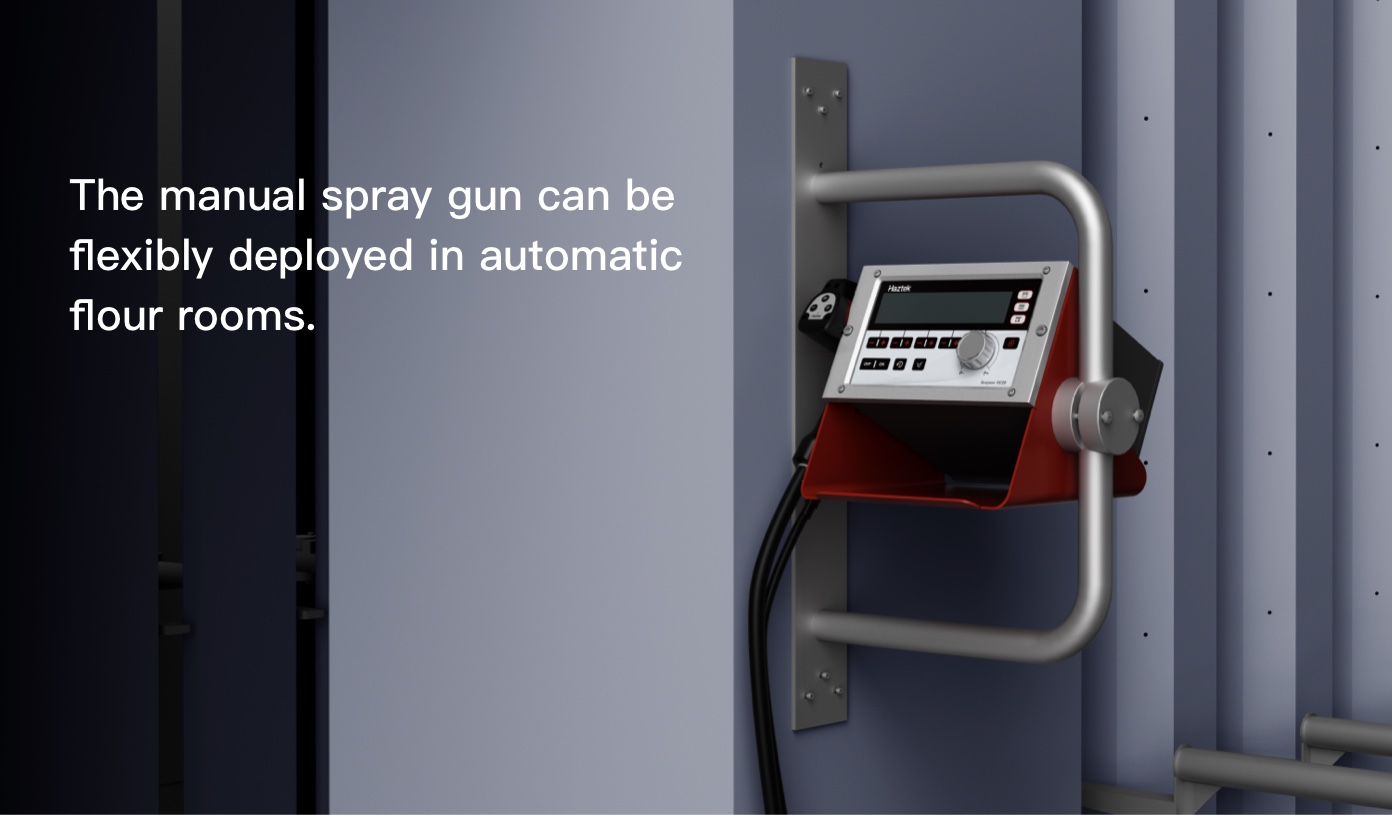

Equipped with a lightweight wall-mounted bracket that supports multi-angle installation and vertical adjustment, it can be installed at the manual spraying station of an automatic powder coating booth or flexibly deployed within the workshop. It can draw powder from either a centralized powder supply system or an independent powder bucket, enabling flexible touch-up spraying requirements.

DVC Digital Valve Technology / Precise Powder Flow Control

This technology achieves stability and high consistency in the spraying process through the precise regulation of powder output, atomizing air and delivery air.

PCC Precision Charging

Dynamic charge regulation and intelligent matching achieve efficient charging and uniform adsorption of powder particles, significantly improving coating quality and production efficiency.

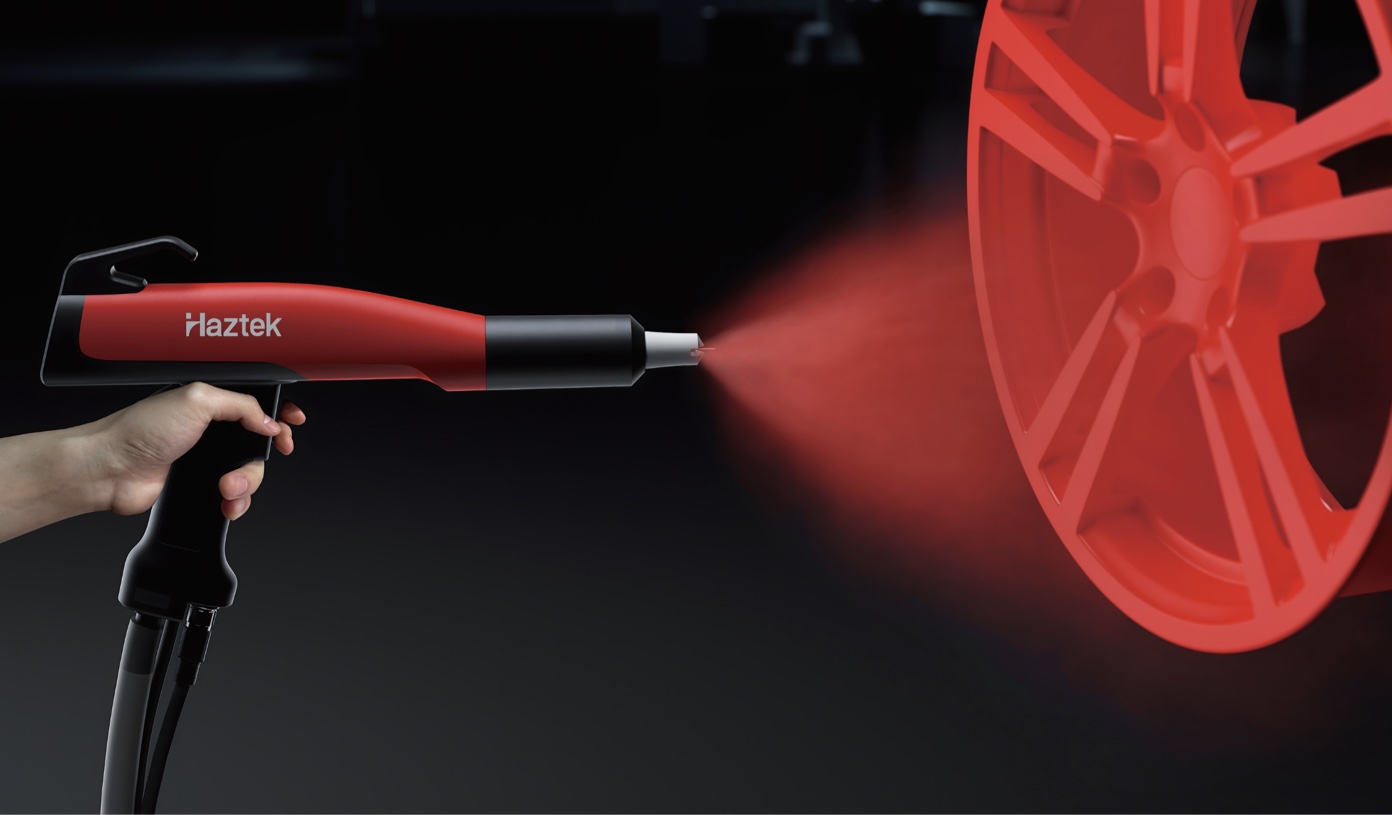

For workpieces with complex geometries (such as automotive wheel hubs and home appliance casings), its charge regulation system can dynamically enhance the electric field intensity in hidden areas like deep cavities and grooves, ensuring the powder adsorption coverage rate is further improved.

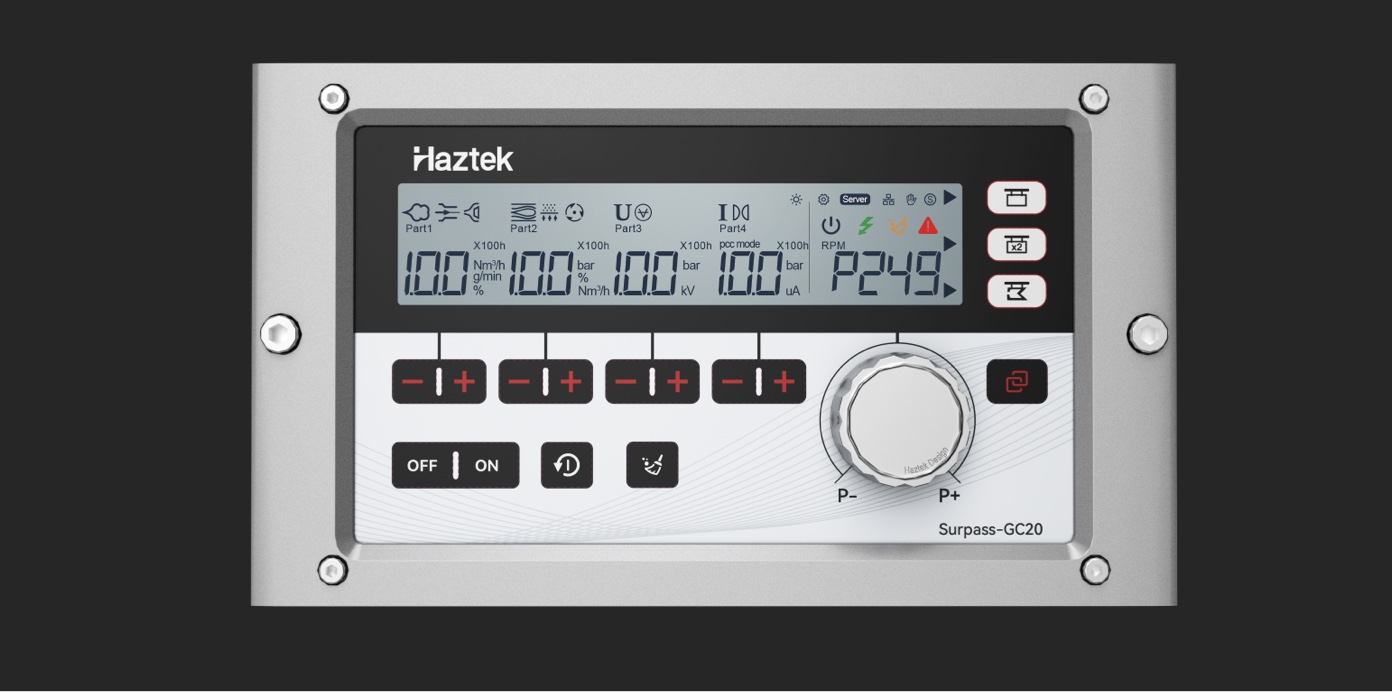

250 Programmable Spray Programs, Enabling Repeatable Coating Effects

It can be programmed individually, store 250 custom programs, and these programs can be recalled at any time, ensuring quick and convenient operation.

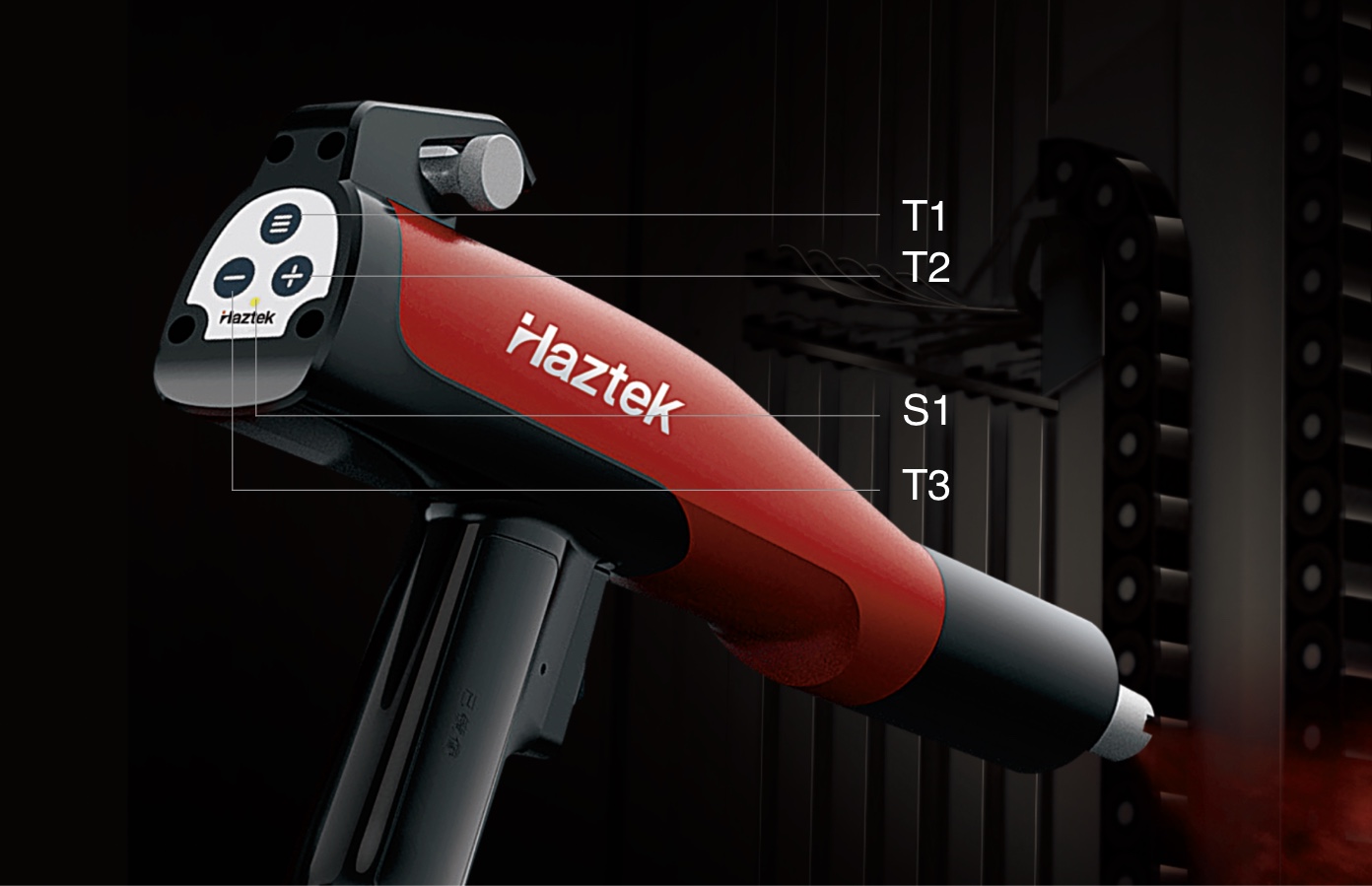

Quick parameter adjustment

 S1 —— Spray Gun Operation Indicator

 T1 —— Parameter Increase Button

 T2 —— Parameter Decrease Button

 T3 —— Parameter Change Button

SURPASS GC20-SE  equipment parameters

 Standard input voltage：100-240VAC

 Frequency：50-60 Hz

 Standard output voltage (to spray gun)：12 V

 Standard output current (to spray gun)：1.2 A

Spray gun output voltage：100kV

 Spray gun output current：100μA

 Polarity：cathode

 Protection level：IP54

 Temperature range：-40°C-85°C

 Compressed air

 Input pressure：5.5-6bar

 Maximum air consumption：8.5Nm³/h

 Other functions

 Canbus fieldbus：Support

 External control （workpiecerecognition system）：Support

 Powder coating capability

 Metal powder capability：yes

 Other polyester powder capability：yes

 Standard configuration

 Powder hose length (m)：16/20(Standard Powder Hose Options for Automatic Spray Guns)

 Powder hose specification Ø (mm)：12*18/11*17
