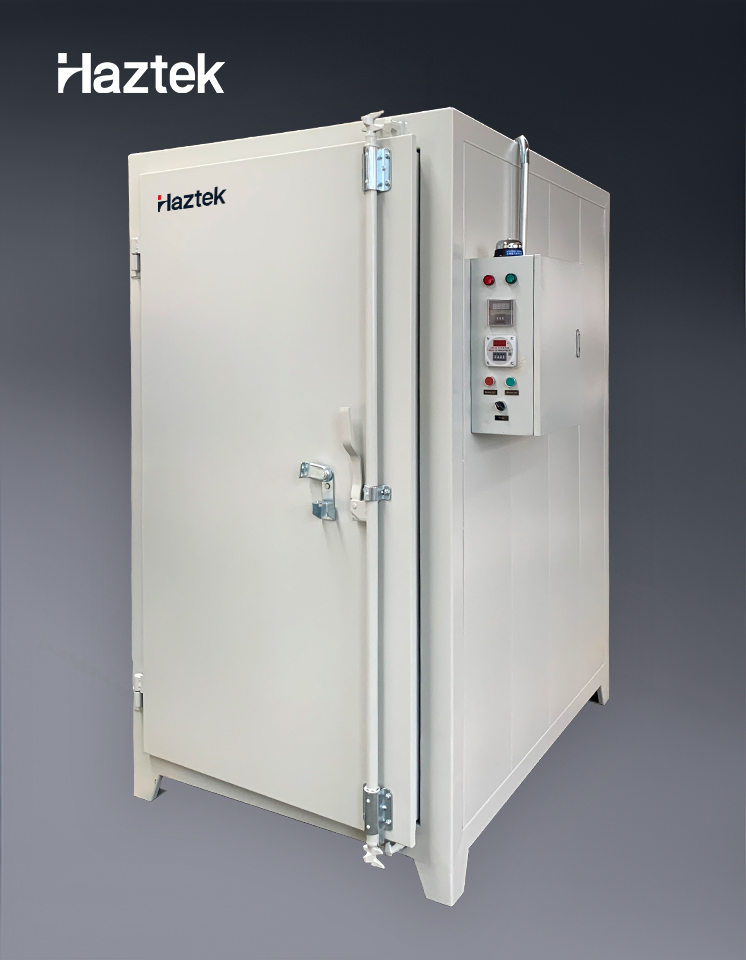

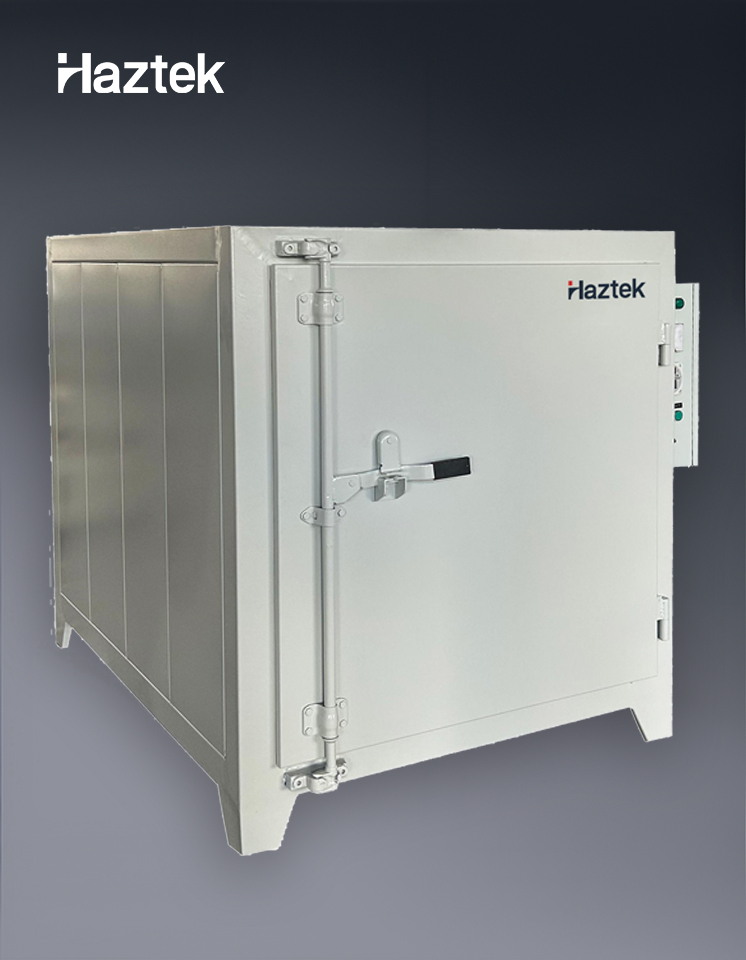

Powder Curing Oven HZ1517

Parameters

Fan Power: 0.75KW;

Electric Heating Power: 15KW;

Characteristics

Durable structure with powder-coated or painted surface for corrosion protection.

What Is a Powder Coating Curing Oven?

A powder coating curing oven is a specialized heating system designed to cure powder coatings applied to metal or other conductive parts. Unlike traditional liquid paint, powder coatings are made of fine solid particles that melt and fuse into a smooth, durable finish when exposed to heat.

Haztek powder coating curing ovens ensure consistent temperature distribution, precise curing time, and excellent coating adhesion — resulting in a long-lasting, high-quality surface finish. These ovens are essential for achieving the full performance of powder coatings, including superior corrosion resistance, impact strength, and color retention.

Components of a Powder Coating Curing Oven

A Haztek powder coating curing oven is engineered with precision and efficiency in mind. Each component is designed to ensure optimal heat transfer, consistent curing quality, and long-term reliability. Below are the key components that make up a high-performance curing oven:

1. Heating Elements
The heating elements generate the thermal energy required to cure the powder coating. Most Haztek ovens use advanced electric resistance heaters or gas burners, delivering fast and uniform heating for stable curing results.

2. Temperature Control System
Equipped with an intelligent temperature controller and precision thermostat, this system maintains accurate and consistent oven temperatures throughout the entire curing process. It ensures the powder coating reaches its ideal cross-linking temperature for maximum adhesion and durability.

3. Airflow Circulation System
A well-designed airflow system guarantees even heat distribution inside the oven chamber. By ensuring uniform air movement, it helps prevent hot or cold spots and achieves consistent coating finishes across all workpieces.

4. Door Seals
High-quality heat-resistant door seals minimize heat loss, maintain energy efficiency, and preserve a stable curing environment inside the oven.

5. Support Racks and Trolleys
Durable support racks or trolleys securely hold coated products during the curing process. Their design ensures easy loading, unloading, and smooth movement through the oven.

At Haztek, we design and manufacture energy-efficient, high-performance powder coating curing ovens for industrial applications. Each unit is customizable to meet your specific production capacity, part size, and coating requirements.

How Long Does It Take for a Powder Coating Curing Oven to Cure?

Powder coating does not dry like conventional wet paint — it cures through heat. After surface preparation such as sandblasting and metal pretreatment, the coated part is placed inside a Haztek powder coating curing oven.

When the part reaches its specified curing temperature (typically between 160°C and 200°C), the powder melts, flows, and chemically bonds to the surface. Most powder coating curing processes take around 15–25 minutes depending on the powder type, part thickness, and oven design.

Once the curing cycle is complete, the part is removed from the oven, cooled, and is ready for immediate use — no extended drying time required.

At Haztek, our industrial powder coating ovens are engineered for precise temperature control and uniform heat distribution, ensuring every coated product achieves maximum durability, adhesion, and corrosion resistance.

Benefits of a Powder Coating Curing Oven

1. Environmentally Friendly & Solvent-Free
Powder coating curing ovens use a dry, solvent-free process that emits zero VOCs, fully compliant with environmental regulations. This ensures a cleaner, safer, and more sustainable coating solution.

2. Uniform and Thicker Coatings
With electrostatic powder application and precise heat control, Haztek curing ovens produce smooth, even coatings without runs, drips, or sags — even on thicker layers.

3. Excellent Color and Gloss Consistency
Powder coating ensures uniform optical appearance across all surfaces. Whether vertical or horizontal, the finish maintains consistent color, gloss, and texture.

4. Enhanced Performance and Durability
Depending on powder formulation, coatings can deliver superior corrosion resistance, chemical stability, and electrical insulation — extending product lifespan and performance.

5. Faster Curing and Higher Productivity
Compared with liquid paint systems, Haztek powder coating ovens achieve shorter curing cycles and higher throughput, reducing energy use and production costs.

At Haztek, we design industrial powder coating ovens that deliver efficient heat transfer, consistent results, and long-term reliability for manufacturers worldwide.

What Is the Ideal Powder Coating Curing Oven Temperature?

The ideal powder coating curing oven temperature is typically around 200°C (390°F), with a curing time of 15-20 minutes once the metal part reaches the target temperature.

However, the exact curing temperature and duration depend on several factors — including powder manufacturer specifications, part size and thickness, and coating layer density. Using the correct temperature ensures the powder melts, flows, and fully cross-links, creating a durable, corrosion-resistant finish that lasts for years.

At Haztek, our industrial powder coating ovens are designed for precise temperature control and uniform heat distribution, guaranteeing consistent curing performance for every project.

Powder Coating Curing Oven: Complete FAQ Guide

Q:How long does powder coating take to cure?

Powder coatings are typically cured at 350–400°F (160–210°C) for about 20 minutes in a professional powder coating curing oven. During this time, the powder melts and chemically bonds, forming a hard and durable finish.

Q:What causes orange peel in powder coating?

An excess of large powder particles (over 75μm) or poor leveling can create an uneven surface known as orange peel. Optimizing powder quality and electrostatic settings helps prevent this defect.

Q:What happens if you overcure powder coating?

Over-curing at excessive temperature or time can make the coating brittle, fade color, or reduce gloss. Many modern powders include limited overbake resistance, but proper temperature control is key.

Q:Can I do powder coating myself?

Yes — but you’ll need a powder coating gun, curing oven, metal cleaner, and power source. Proper surface preparation and curing temperature are essential for a professional finish.

Q:What powers powder coating curing ovens?

Most industrial curing ovens use natural gas or liquid propane for heating. Smaller systems may use electric heaters, but gas is preferred for large-scale production.

Q:How do curing ovens heat the parts?

Haztek ovens use forced convection or radiant heat to evenly warm parts. Convection ensures consistent temperature and smooth curing results across the entire surface.

Q:Is it safe to cure powder coat in any oven?

No. Never use kitchen ovens or microwaves, as powder coating fumes can contaminate food surfaces. Always use a dedicated industrial curing oven designed for coating applications.

Q:Do powder coating ovens need ventilation?

Yes. Proper ventilation ensures safe operation, stable temperature, and clean air circulation during curing.

Q:What temperature should a curing oven be set to?

Most powders cure between 350–400°F (177–204°C) for 5–20 minutes. Newer low-temperature powders can cure at as low as 250°F (120°C), saving energy.

Q:What insulation is best for curing ovens?

Mineral wool insulation (Rockwool) is preferred for its high temperature resistance (up to 2000°F) and energy efficiency. Fiberglass is a lower-cost alternative for light-duty ovens.

Q:Should you preheat before powder coating?

Preheating helps remove trapped gases in porous metals and prevents bubbling. Parts are typically heated slightly above the curing temperature before coating application.

Q:How many heating elements are needed?

The number of heating elements depends on oven size and total wattage. Large ovens often use multiple contactors or solid-state relays for precise heat control.

Q:Can powder coat cure at 200°F (93°C)?

Only ultra-low temperature powders can cure at 200–275°F (93–135°C). These are used for heat-sensitive substrates like MDF or plastics.

Q:How hot is too hot for powder coating?

Standard powders can withstand up to 400°F (204°C). Excessive heat may degrade color, gloss, and mechanical properties.

Q:What happens if you underbake or overbake?

Underbaking weakens adhesion and corrosion resistance. Overbaking can cause discoloration or brittleness. Always follow the powder manufacturer’s curing specifications.

Q:Can powder coating be applied twice?

Yes. You can recoat over existing powder finishes after light sanding and cleaning. A second coat restores appearance and durability.

Q:What is the minimum temperature for powder coating?

Most powders require at least 325°F (163°C) to cure effectively. Lower temperatures reduce energy use but limit application to heat-tolerant materials.
