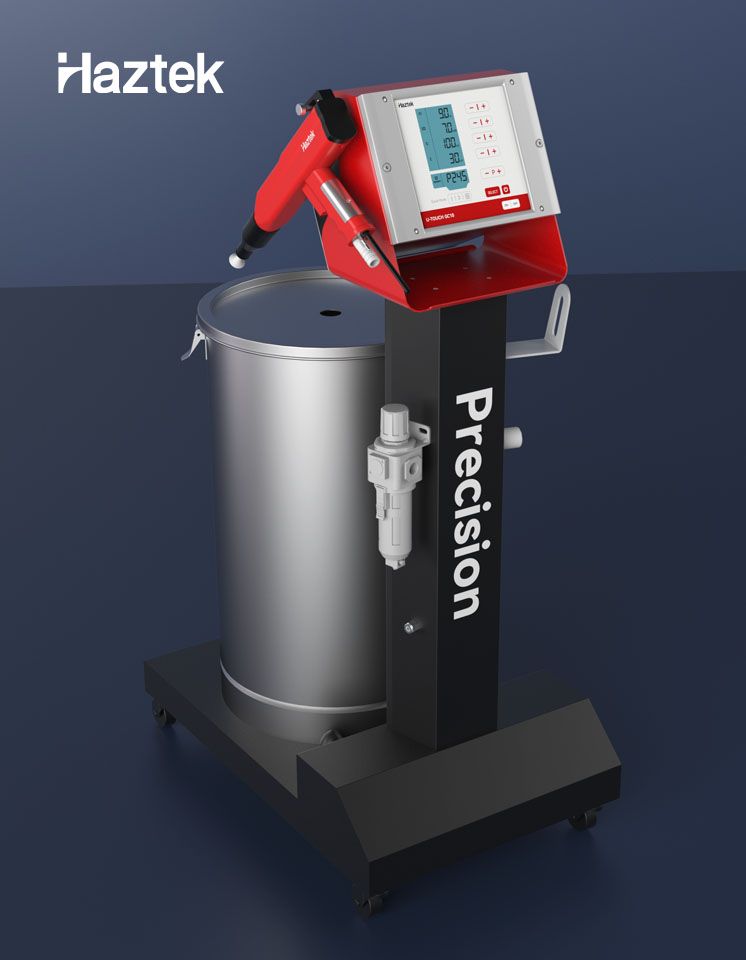

Haztek GC10F Manual Powder Coating Equipment

Haztek GC10F Manual Powder Coating Equipment

Components

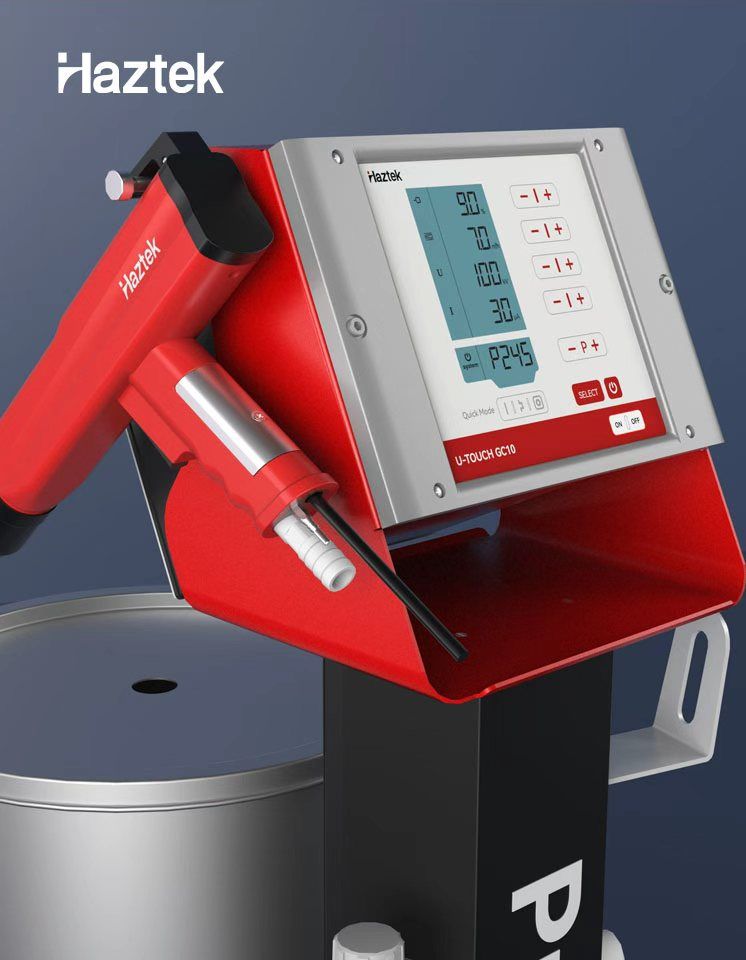

Master Control Unit – GC10
Manual Spray Gun – MG10
Mobile Trolley
Stainless Steel Powder Hopper: 45.5L
Powder Pump – PPH40
Powder Hose: 12*18mm, 6 Meters
Regulator and Air Distribution Unit
Standard Hose Connection Accessories + Consumable parts kit

Description

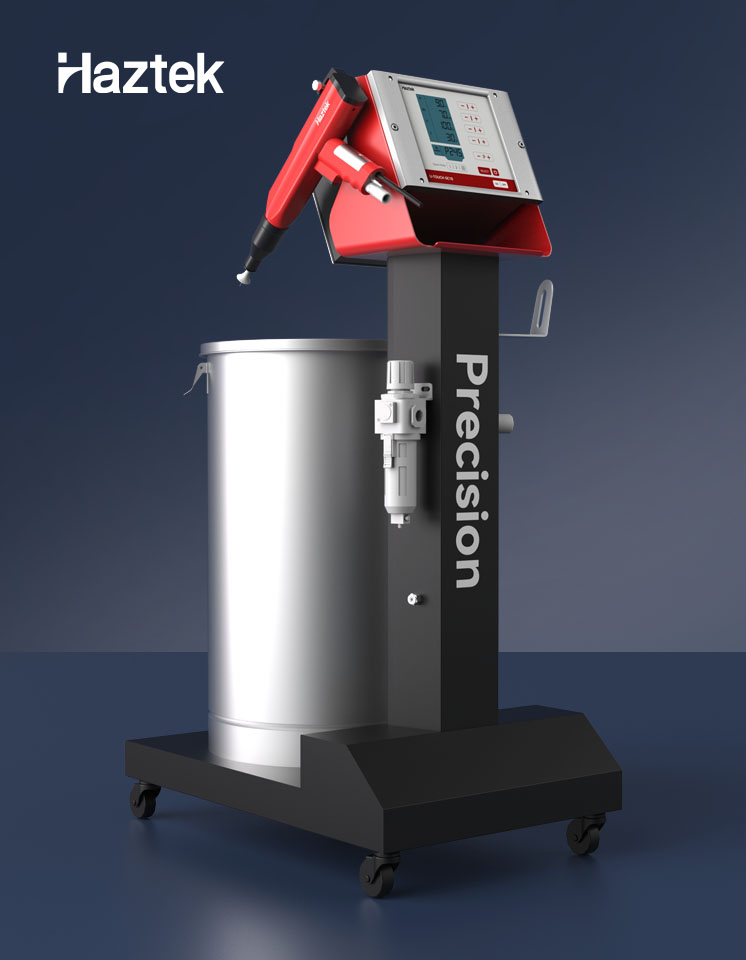

Mobile work platforms stand out with their excellent mobility, paired with a 45.5‑liter powder tank, making it easy and convenient to spray large workpieces. The modular platform frame integrates spray guns, powder pumps, controllers, and air source components, supporting quick movement to different workstations. The platform is equipped with four swivel casters, allowing flexible movement and operation within the workshop, especially suitable for on‑site spraying of large workpieces such as car frames, wheels, construction machinery parts, and irregular sheets.

Technical Specifications

Item	Value
Standard input voltage	100‑240VAC
Frequency	50‑60 Hz
Standard output voltage (to spray gun)	12V
Standard output current (to spray gun)	1.2 A
Spray gun output voltage	100kV
Spray gun output current	100uA
Polarity	cathode
Protection level	IP54
Temperature range	-40℃‑85℃
Compressed air input pressure	5.5‑6bar
Maximum air consumption	8.5Nm³/h
Fluidized gas	Support
Air intake filter	Support
Metal powder capability	yes
Other polyester powder capability	yes
Powder hose length (m)	616/20(Standard Powder Hose, Options for Automatic Spray Guns)
Powder hose specification Ø (mm)	1218/1117
Powder hose material type	POE with Conductive Strip
Maximum powder discharge rate	520g/min
