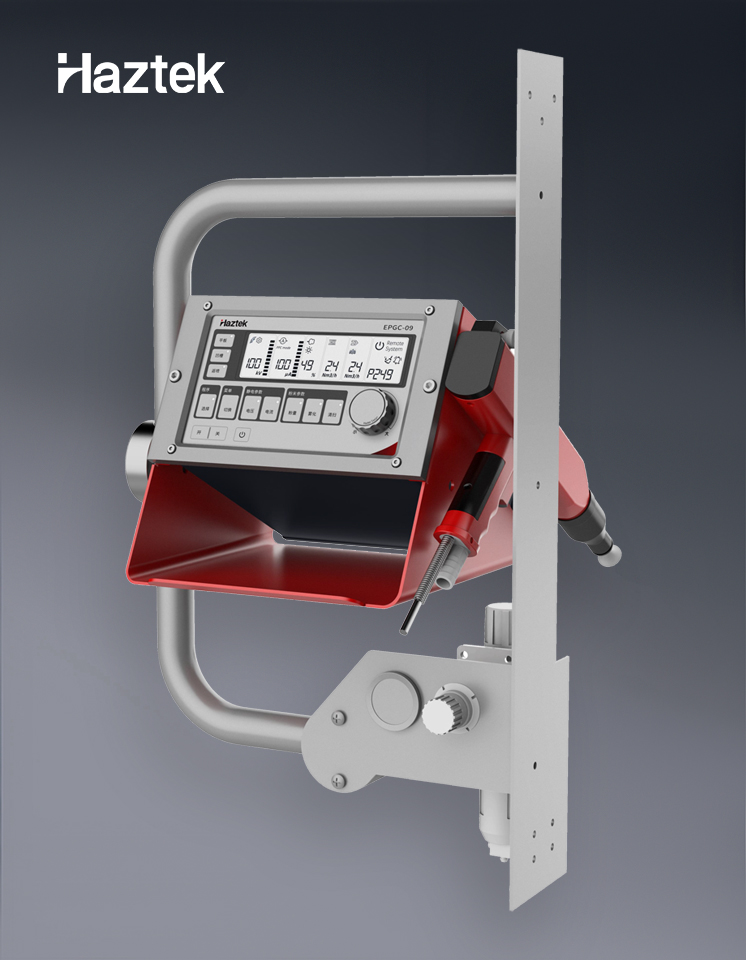

Milepost Series Wall-mounted Manual Powder Coating Equipment( High-end Series)

Parameters

- Standard input voltage: 110-240VAC

- Frequency: 50-60Hz

- Standard output voltage(to spay gun): 12V

- Standard output current(to spray gun): 1.2A

- Gun output voltage: 100KV

- Gun output current: 100uA

- Polarity: Negative electrode

- Protection Level: IP54

- Temperature range: -40 ℃-85℃

- Air inlet pressure: 5.5-6bar

- Maximum air consumption: 8.5Nm³/h

- CANBus fieldbus: Support

- External control(workpiece recognition system): Support

- Metal powder: Support

- Other polyester powder: Support

- Powder hose length(m): 6

- Powder hose specification ⌀(mm): 12*18

- Powder hose material type: POE with conductive strip

- Maximum powder discharge rate: 520g/min

Characteristics

- Three preset coating modes: Flat workpiece mode, Complex workpiece mode, Recoating mode.

- Corona charging.

- PCC precise charging.

- Automatic Current Control technology (ACC).

- DVC precision powder flow adjustment.

- MG10 manual spray gun with built-in 100kV high-voltage module.

- Soft-touch buttons.

- Easy adjustment.
